EnergyMathDatasheet (PDF)

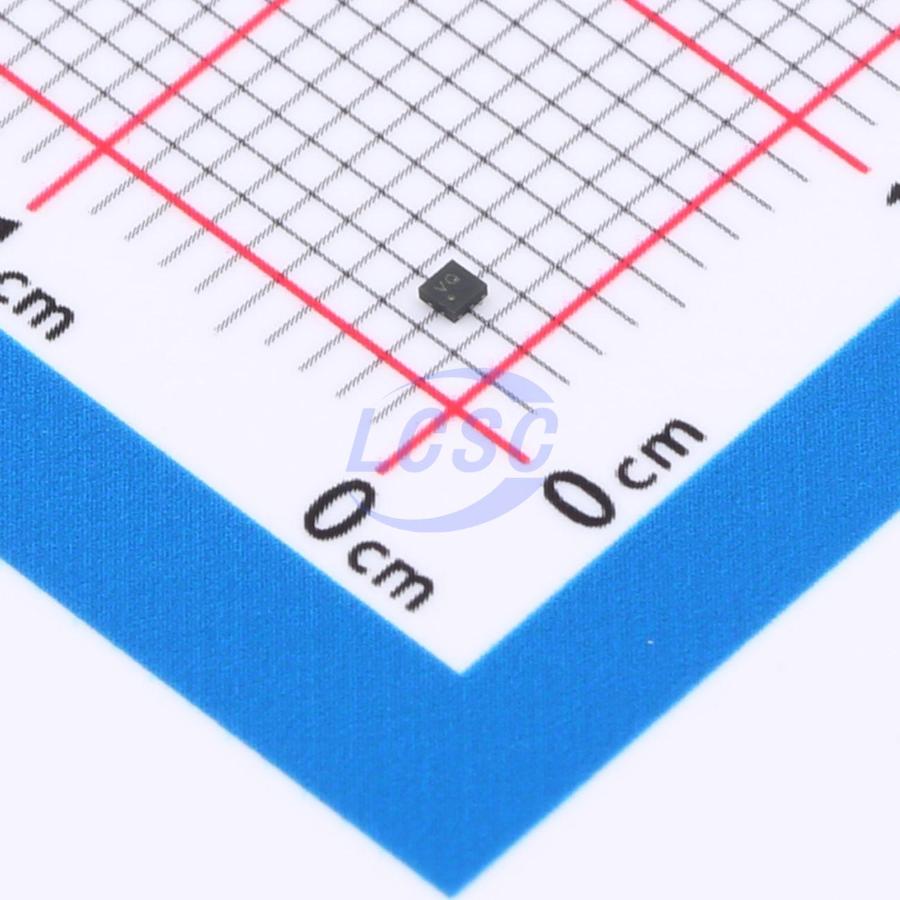

EM74LVC1G126GS
Schmitt trigger 1.65V~5.5V 1 1 3.6ns@3.3V,50pF DFN-6L(1x1) Buffers, Drivers, Receivers, Transceivers
DFN-6L(1x1)RoHSActive
Bus buffer/line driver; 3-state
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC1G126GS
- Store part #
- C49188133
- Package / case
- DFN-6L(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,915 in stock
#C49188133
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.42 | ₹67.10 |
| 50+ | ₹10.61 | ₹530.50 |
| 150+ | ₹9.21 | ₹1,381.50 |
| 500+ | ₹8.15 | ₹4,075.00 |
| 3,000+ | ₹7.30 | ₹21,900.00 |
| 6,000+ | ₹6.88 | ₹41,280.00 |
5 × ₹13.42
₹67.10
excl. GST
₹79.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC1G126GS
₹67.10 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Level shifting;Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.6ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The EM74LVC1G126 is a single buffer/line driver with 3-state output. Inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuit disables the output, preventing potentially destructive backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 1.65 V to 5.5 V
- Overvoltage-tolerant inputs up to 5.5 V
- High noise immunity
- CMOS low power consumption
- I_OFF circuitry enables partial power-down mode operation
- ±24 mA output drive capability (V_CC = 3.0 V)
- Latch-up performance exceeds 100 mA
- Direct interface with TTL levels
- Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
