EnergyMath

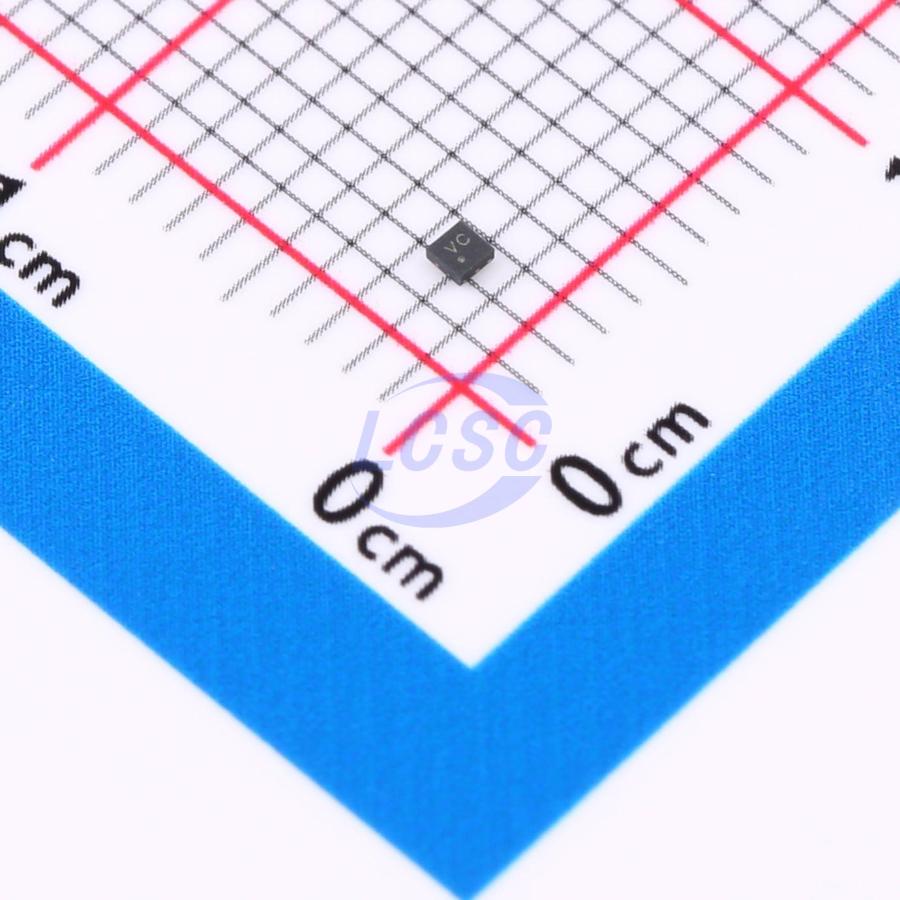

EM74LVC1G17GS

Schmitt trigger 1.65V~5.5V 1 1 4.3ns@3.3V,50pF DFN-6L(1x1) Buffers, Drivers, Receivers, Transceivers

DFN-6L(1x1)RoHSActive

Single Schmitt trigger buffer

Manufacturer: EnergyMath
Manufacturer part #: EM74LVC1G17GS
Store part #: C49188126
Package / case: DFN-6L(1x1)
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C49188126

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹12.93	₹64.65
50+	₹10.21	₹510.50
150+	₹8.86	₹1,329.00
500+	₹7.85	₹3,925.00
3,000+	₹7.04	₹21,120.00
6,000+	₹6.63	₹39,780.00

Quantity (min 5, multiples of 5)

5 × ₹12.93

₹64.65

excl. GST

₹76.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74LVC1G17GS

₹64.65 for 5 + GST

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 4uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 24mA
Series: 74LVC
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 4.3ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.026 g

Overview

EM74LVC1G17 is a single buffer Schmitt-trigger. Its input can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing potentially damaging backflow current when the device is powered down.

Key features

Wide supply voltage range: 1.65V to 5.5V
Overvoltage-tolerant inputs to 5.5V
High noise immunity
±24 mA output drive capability (VCC = 3.0V)
CMOS low power consumption
Latch-up performance exceeds 100 mA
Direct TTL-level interface compatible
IOFF circuit enables partial power-down mode operation
Unlimited rise and fall times
Compliant with JEDEC standards: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8B/JESD36 (2.7V to 3.6V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V, MM JESD22-A115C Class C exceeds 550V, CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000V
Multiple package options
