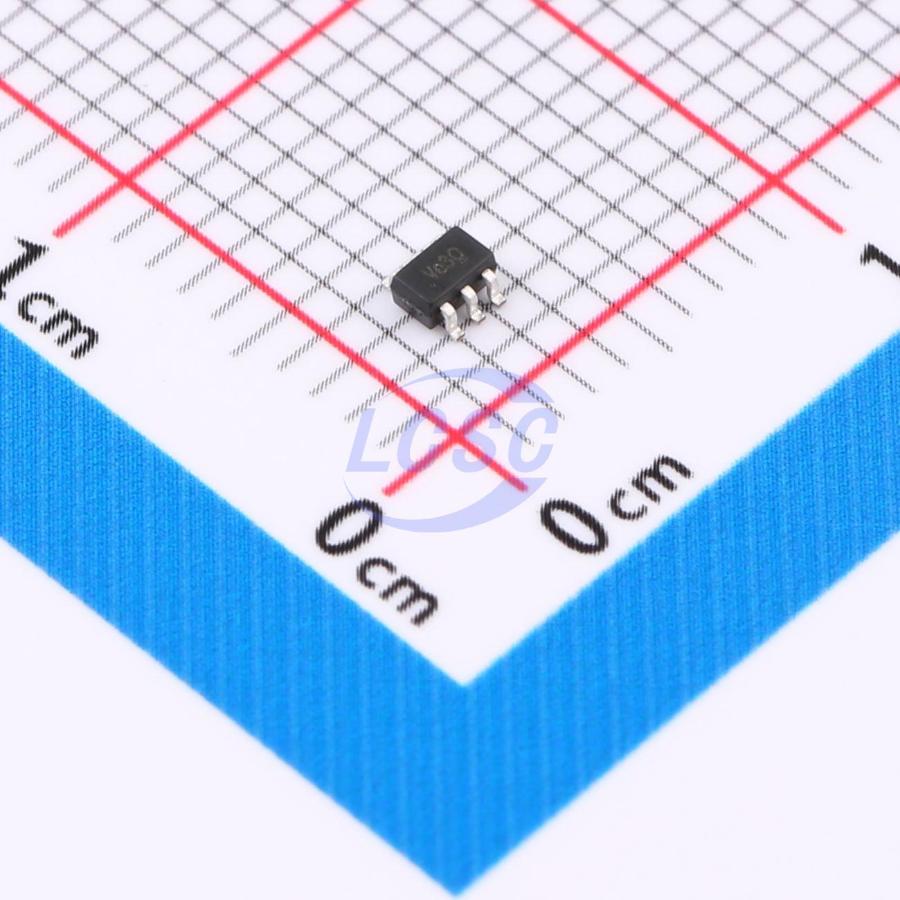

EM74LVC2G17GW
Schmitt trigger 1.65V~5.5V 1 2 4.3ns@3.3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC2G17GW
- Store part #
- C49188093
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,090 in stock
#C49188093
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.42 | ₹74.20 |
| 100+ | ₹5.83 | ₹583.00 |
| 300+ | ₹5.04 | ₹1,512.00 |
| 3,000+ | ₹4.45 | ₹13,350.00 |
| 6,000+ | ₹3.97 | ₹23,820.00 |
| 9,000+ | ₹3.73 | ₹33,570.00 |
10 × ₹7.42
₹74.20
excl. GST
₹87.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC2G17GW
₹74.20 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 4.3ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The EM74LVC2G17 is a dual buffer with Schmitt-trigger inputs. The inputs can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as level translators in mixed 3.3 V and 5 V environments. The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing potentially damaging reverse current flow when the device is powered down.
Key features
- Wide supply voltage range: 1.65 V ~ 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- ±24 mA output drive capability (VCC = 3.0 V)
- CMOS low power consumption
- Latch-up performance exceeds 100 mA
- Direct TTL-level interface compatible
- IOFF circuitry supports partial power-down mode operation
- JEDEC compliant: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8B/JESD36 (2.7 V to 3.6 V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V, MM JESD22-A115C Class C exceeds 550 V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
