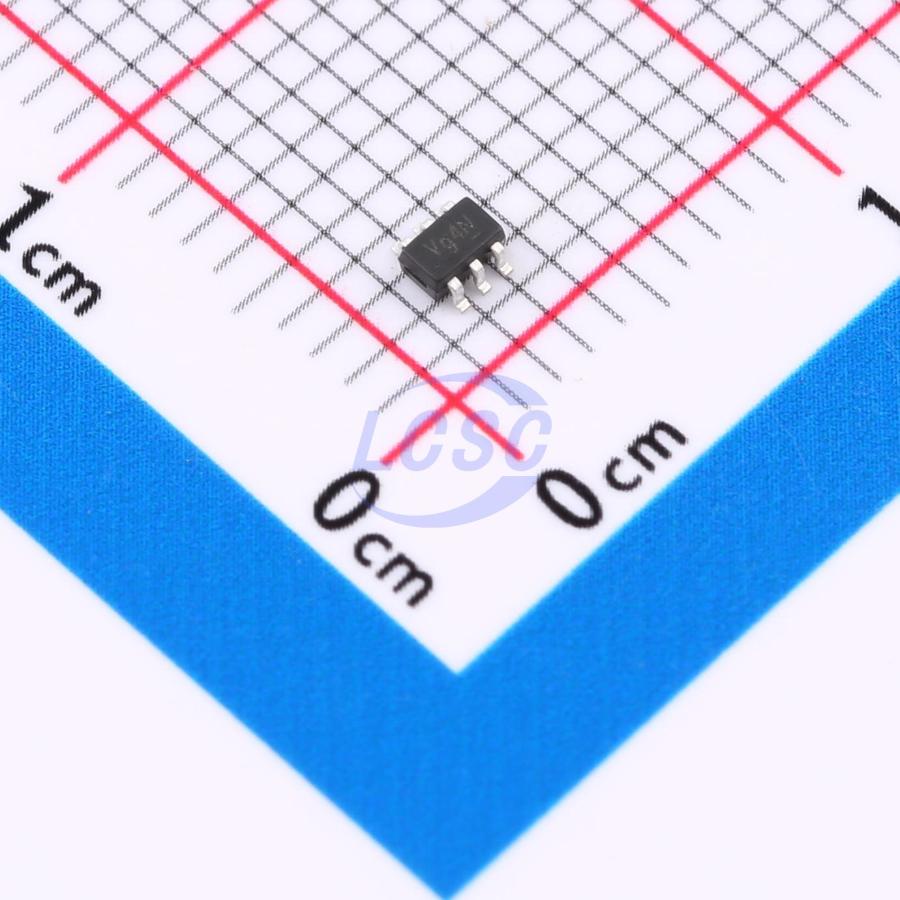

EM74LVC2G34GW
Schmitt trigger 1.65V~5.5V 1 2 2.5ns@3.3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
Dual buffer gate
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC2G34GW
- Store part #
- C49188090
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C49188090
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.55 | ₹75.50 |
| 100+ | ₹5.98 | ₹598.00 |
| 300+ | ₹5.19 | ₹1,557.00 |
| 3,000+ | ₹4.59 | ₹13,770.00 |
| 6,000+ | ₹4.11 | ₹24,660.00 |
| 9,000+ | ₹3.88 | ₹34,920.00 |
10 × ₹7.55
₹75.50
excl. GST
₹89.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC2G34GW
₹75.50 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 2.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
The EM74LVC2G34 is a dual buffer. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully suitable for partial power-down applications using the I_OFF circuit. The I_OFF circuit disables the outputs, preventing damaging backflow current when the device is powered down.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- ±24 mA output drive capability (at VCC = 3.0 V)
- CMOS low power consumption
- Direct TTL-level interface compatible
- I_OFF circuit for partial power-down mode operation
- Latch-up performance exceeds 100 mA
- Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.6 V to 5.5 V)
- Dual-buffered gate
