etasolutionDatasheet (PDF)

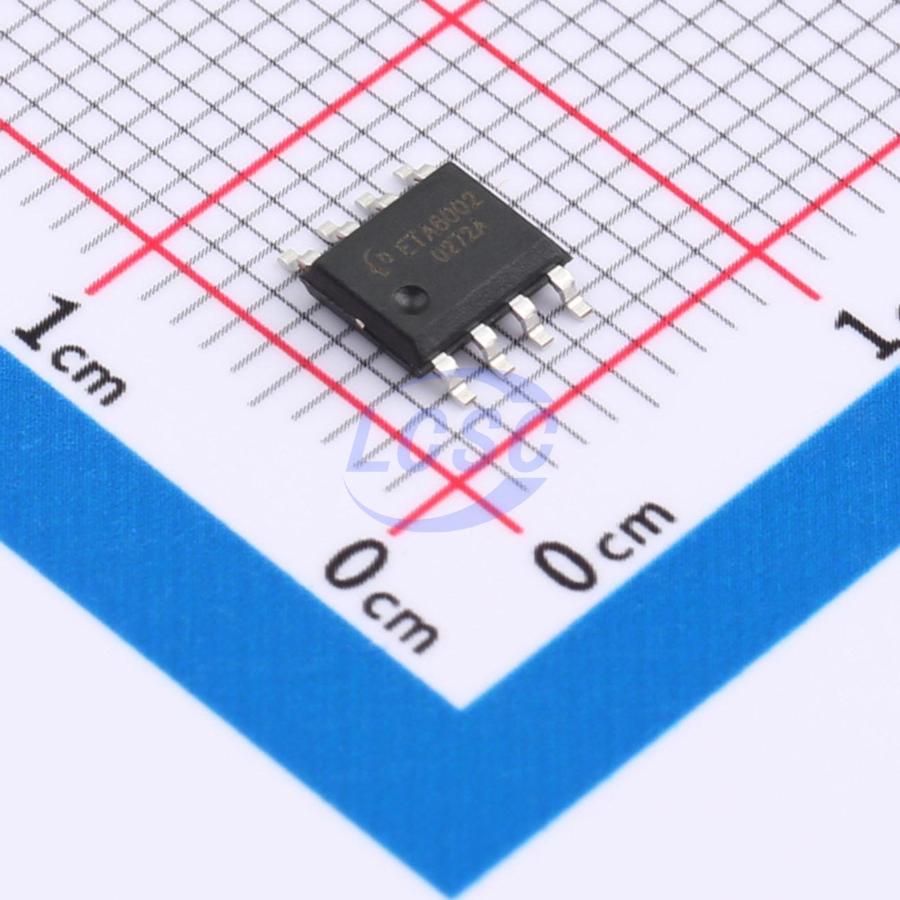

ETA6002E8A
Lithium Battery 2.5A ESOP-8 Battery Management RoHS
ESOP-8ROHS CompliantActive
2.5A, 3MHz Switching Charger with Dynamic Power Path
- Manufacturer
- etasolution
- Manufacturer part #
- ETA6002E8A
- Store part #
- C7436031
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,143 in stock
#C7436031
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.06 | ₹64.06 |
| 10+ | ₹50.82 | ₹508.20 |
| 30+ | ₹44.96 | ₹1,348.80 |
| 100+ | ₹38.01 | ₹3,801.00 |
| 500+ | ₹34.76 | ₹17,380.00 |
| 1,000+ | ₹33.01 | ₹33,010.00 |
1 × ₹64.06
₹64.06
excl. GST
₹75.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ETA6002E8A
₹64.06 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 70uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.4V~5.5V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Programmable charging current;Battery temperature monitoring;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 2.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.215 g
Overview
ETA6002 is a switching Li-Ion battery charger with dynamic power-path control and input current limiting.
Applications
- Tablet
- MID
- Smart Phone
- Power Bank
Key features
- When a battery is connected, depending on the battery voltage, the DC-DC switching regulator either preconditions, fast-charges the battery or just regulates a system voltage (VSYS) to a preset voltage.
- It does not require an external sense resistor for current sensing.
- The fast-charging current is determined by programming ISET pin.
- When the battery voltage reaches the termination voltage i.e., 4.2V, the charging path disconnects SYS to BATT.
- The ETA6002 also includes a dynamic power path when the SYS load current exceeds current limit of the DCDC regulator internally set, the SYS voltage falls below VBATT, ETA6002 turns on the powerpath to supplement the system load through the battery.
- Switching Charger with Power Path Management
- Up to 95% DC-DC Efficiency
- 50mΩ Power Path MOSFET
- Up to 2.5A Max charging current
- Instant on with a dead Battery or no Battery
- No Battery Detection
- No External Sense Resistor
- Programmable Charging Current
- RoHS Compliant
