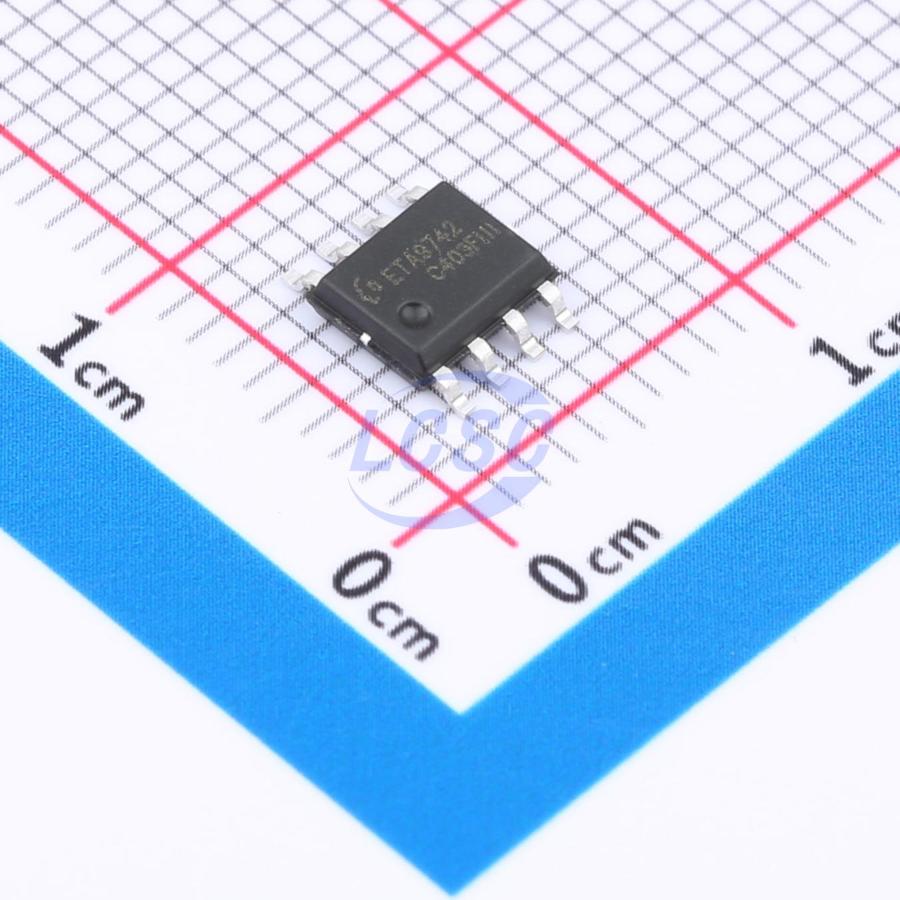

ETA9742E8A
Lithium Battery 3A ESOP8 Battery Management RoHS
3A Switching Charger, 2.4A Boost and 3 LED - indicators for battery level, charge/discharge status in One ESOP8 with Single Inductor
- Manufacturer
- etasolution
- Manufacturer part #
- ETA9742E8A
- Store part #
- C7465514
- Package / case
- ESOP8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,450 in stock
#C7465514
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.98 | ₹164.90 |
| 50+ | ₹25.76 | ₹1,288.00 |
| 150+ | ₹22.66 | ₹3,399.00 |
| 500+ | ₹18.80 | ₹9,400.00 |
| 2,500+ | ₹17.08 | ₹42,700.00 |
| 4,000+ | ₹16.05 | ₹64,200.00 |
5 × ₹32.98
₹164.90
excl. GST
₹194.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
ETA9742E8A
₹164.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Short-Circuit Protection
- The Chip Type
- Charging IC
- Charge Current - Max
- 3A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.164 g
Overview
ETA9742 is a switching Li-Ion battery charger capable of delivering up to 3A of charging current to the battery and also capable of delivering up to 5V/2.4A in boost operation, with high efficiency in both charging mode and boost mode. It also includes a fuel gauge system for power indication. For charging, it uses a proprietary control scheme that eliminates the current sense resistor for conventional constant current control, maximizing efficiency, reducing charging time and reducing costs. It can also output a 5V voltage in the reversed direction by boosting from the battery. It only needs a single inductor to provide power bidirectionally with a proprietary automatic mode detect and switch scheme. ETA9742 is an ideal all-in-one solution for battery charging and discharge applications, such as power banks, smart phones, and tablets with only one USB port that can be used for charging battery function. ETA9742 is suitable for charging a 4.2V Li-ion battery. And ETA9742 is in ESOP8 package.
Applications
- Tablet, MID
- Smart Phone
- Power Bank
Key features
- Bi-Directional Power conversion with Single Inductor
- Automatic Mode Switching
- Switching Charger
- 5V Synchronous Boost
- Up to 96% Efficiency
- Up to 3A Max charging current and 2.4A discharging
- No-Battery detection
- No External Sense resistor
- LEDs for battery level indication and charge/discharge status indication
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA9740E8A#C7465512etasolution · ESOP8 | etasolution | ESOP8 | 2,075 | ₹34.40 · 2,075 in stock | View |
 | ETA6002E8A#C7436031etasolution · ESOP-8 | etasolution | ESOP-8 | 8,143 | ₹64.06 · 8,143 in stock | View |
 | ETA9880E8A#C5554991etasolution · ESOP-8 | etasolution | ESOP-8 | 6,245 | ₹34.54 · 6,245 in stock | View |
