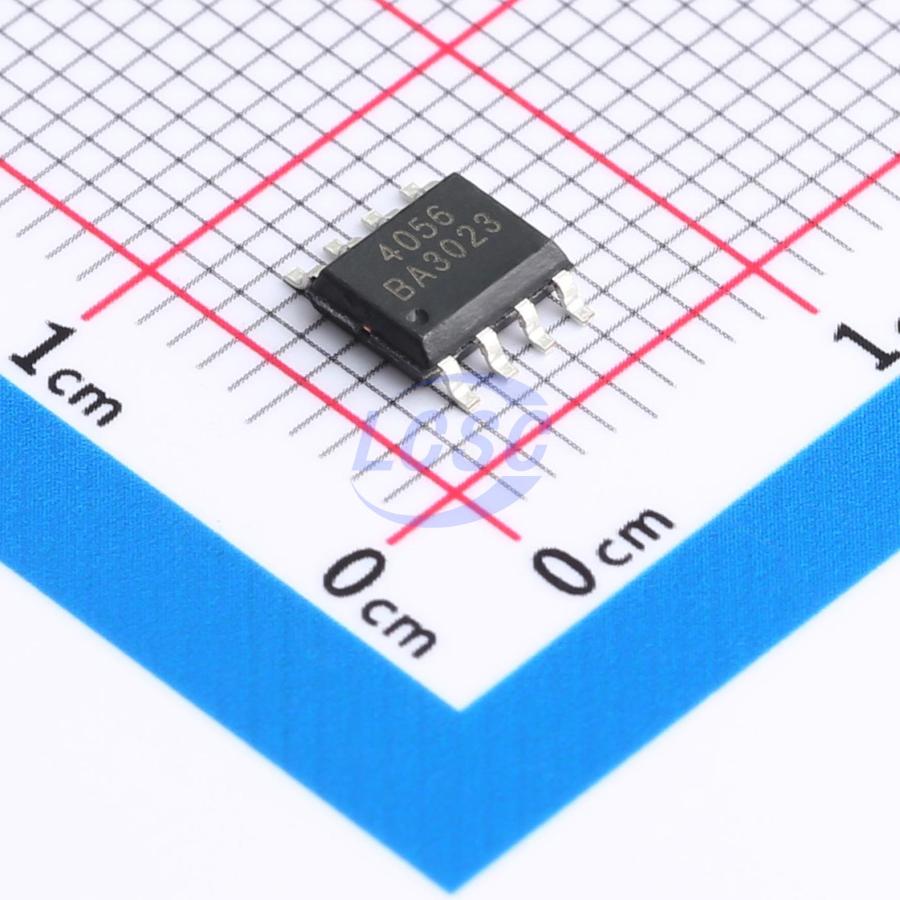

FBC4056YESOP8G/TR
Battery Charging IC Lithium Battery ESOP-8
1000mA single-cell lithium battery charger IC
- Manufacturer
- Full-Way
- Manufacturer part #
- FBC4056YESOP8G/TR
- Store part #
- C42421350
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C42421350
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.76 | ₹67.60 |
| 100+ | ₹5.41 | ₹541.00 |
| 300+ | ₹4.74 | ₹1,422.00 |
| 1,000+ | ₹4.22 | ₹4,220.00 |
| 4,000+ | ₹3.65 | ₹14,600.00 |
| 8,000+ | ₹3.44 | ₹27,520.00 |
10 × ₹6.76
₹67.60
excl. GST
₹79.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FBC4056YESOP8G/TR
₹67.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.162 g
Overview
FBC4056 is a single-cell lithium-ion battery constant-current/constant-voltage linear charger. Its simple external application circuitry makes it ideal for portable device applications, suitable for operation with USB power supplies and adapter power supplies. An internal reverse-charge protection circuit eliminates the need for an external blocking diode. Thermal feedback automatically adjusts the charge current to limit the die temperature during high-power operation or elevated ambient temperature conditions. The FBC4056 has a charge termination voltage of 4.2V, and the charge current is programmable via an external resistor. When the charge current drops to 1/10 of the programmed value, the FBC4056 automatically terminates the charging process.
Applications
- Charging dock
- Bluetooth headsets, GPS
- Mobile phones, PDAs, MP3/MP4 players
- Digital cameras, mini speakers, and other portable devices
Key features
- When input voltage is removed, FBC4056 automatically enters low-current standby mode, with standby current dropping to 1uA.
- Pre-charge voltage: 4.2V
- Battery reverse polarity protection
- Maximum charge current: 1000mA
- Ultra-low power consumption 1uA in battery-only mode
- No MOSFET, sense resistor, or isolation diode required
- Intelligent thermal regulation for maximum charge rate optimization
- Intelligent recharge function
- C/10 charge termination
- 2.94V trickle charge threshold
- Package: ESOP8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FBC4066YESOP8G/TR#C41370612Full-Way · ESOP-8 | Full-Way | ESOP-8 | 46,085 | ₹10.45 · 46,085 in stock | View |
