G2026

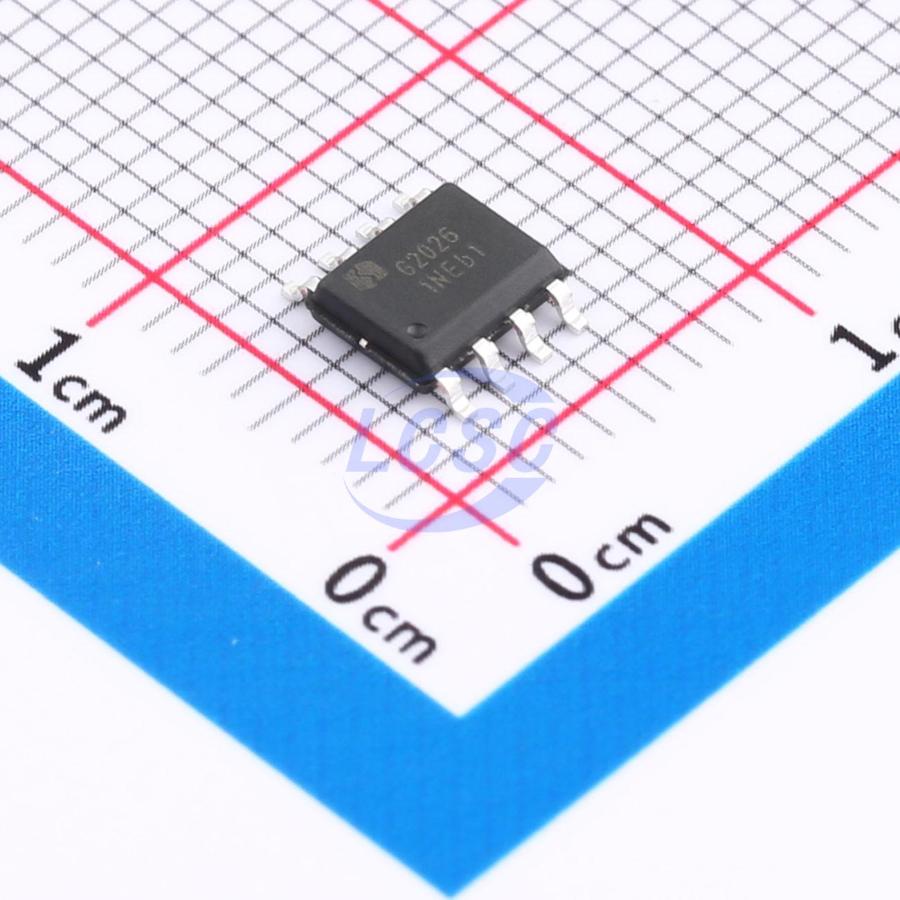

Low Side High Side Gate Driver IC MOSFET IGBT SOIC-8
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- G2026
- Store part #
- C46473161
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,610 in stock
#C46473161
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.40 | ₹92.00 |
| 50+ | ₹14.55 | ₹727.50 |
| 150+ | ₹12.62 | ₹1,893.00 |
| 500+ | ₹11.18 | ₹5,590.00 |
| 2,500+ | ₹10.02 | ₹25,050.00 |
| 4,000+ | ₹9.45 | ₹37,800.00 |
5 × ₹18.40
₹92.00
excl. GST
₹108.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
G2026
₹92.00 for 5 + GST
Specifications
- Quiescent Current
- 230uA
- Voltage - Supply
- 10.5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 60ns
- Fall Time
- 40ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.221 g
Overview
G2026 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC featuring independent high-side and low-side referenced output channels. The device is fabricated using a high-voltage compatible process that enables monolithic integration of both high-side and low-side gate drive circuits. Its logic input thresholds are compatible with CMOS or LSTTL logic outputs down to 3.3V. The output stage provides high-current pulse capability with shoot-through protection deadtime logic. The floating channel can be used to drive a high-side N-channel power MOSFET, with a maximum floating supply offset voltage of 250V. The G2026 is available in an SOIC8 package and operates over a temperature range of -40℃ to 125℃.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Floating high-side channel with bootstrap operation
- Maximum operating voltage +250V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/ns
- Vs negative bias capability down to -10V
- Gate drive voltage range 10.5V ~ 20V
- Anti-shoot-through dead-time logic with 250ns dead time
- Propagation delay characteristics: turn-on/turn-off delay Ton/Toff = 380ns/140ns, delay matching 50ns
- Wide temperature range -40℃ ~ 125℃
- Output stage source/sink current capability 1.2A/1.5A
- RoHS compliant
- SOIC8 package
