GREENMICRODatasheet (PDF)

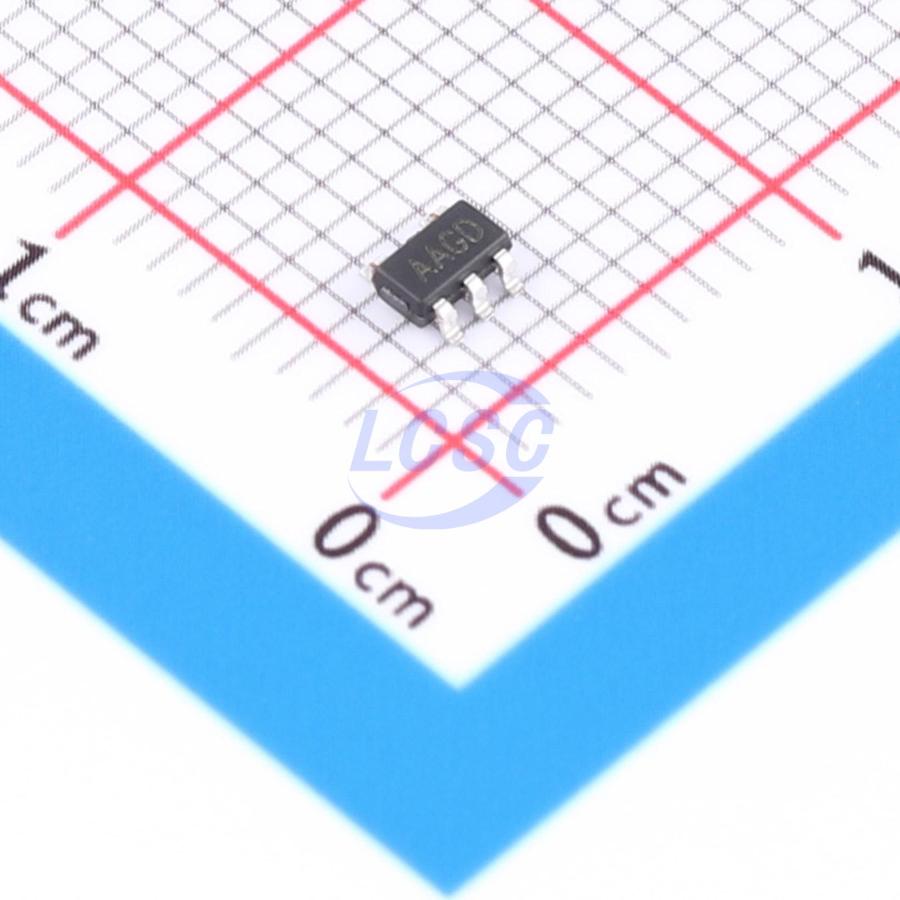

GM6001DR
84mA 1 3.5mV 800V/ms 1pA 70dB 1MHz 75uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- GM6001DR
- Store part #
- C49329003
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,370 in stock
#C49329003
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.03 | ₹60.15 |
| 50+ | ₹9.50 | ₹475.00 |
| 150+ | ₹8.24 | ₹1,236.00 |
| 500+ | ₹7.30 | ₹3,650.00 |
| 3,000+ | ₹6.55 | ₹19,650.00 |
| 6,000+ | ₹6.17 | ₹37,020.00 |
5 × ₹12.03
₹60.15
excl. GST
₹70.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GM6001DR
₹60.15 for 5 + GST
Specifications
- Output Current
- 84mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 800V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 75uA
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The 600X series features a 1MHz gain bandwidth product, 0.8V/μs slew rate, and 75μA typical quiescent current per amplifier at 5V. The series is designed to deliver performance in low-voltage and low-noise systems, capable of driving heavy loads with rail-to-rail output swing. The input common-mode voltage range includes ground, and the maximum input offset voltage across the entire 600X series is 3.5mV. These devices operate over an industrial temperature range (-40°C ~ +125°C) with a supply voltage range of 1.8V to 6V. The 6001 single-channel amplifier is available in Green SC70-5 and SOT23-5 packages. The 6002 dual-channel and 6004 quad-channel amplifiers are available in SOP-8, MSOP-8, and Green SOP-14 and TSSOP-14 packages, respectively.
Applications
- ASIC input/output amplifier
- Sensor interface
- Medical communication
- Smoke detector
- Audio output
- Piezoelectric transducer amplifier
- Medical instrumentation
- Portable systems
Key features
- Single-supply operating voltage range: +1.8V ~ +6V
- Rail-to-rail input/output
- Gain bandwidth product: 1MHz (typical)
- Low input bias current: 1pA (typical)
- Low offset voltage: 3.5mV (maximum)
- Quiescent current per amplifier: 75μA (typical)
- Built-in RF EMI filter
- Operating temperature range: -40°C ~ +125°C
- Small packages: 6001 available in SOT23-5 and SC70-5; 6002 available in SOP-8 and MSOP-8; 6004 available in SOP-14 and TSSOP-14
