GREENMICRODatasheet (PDF)

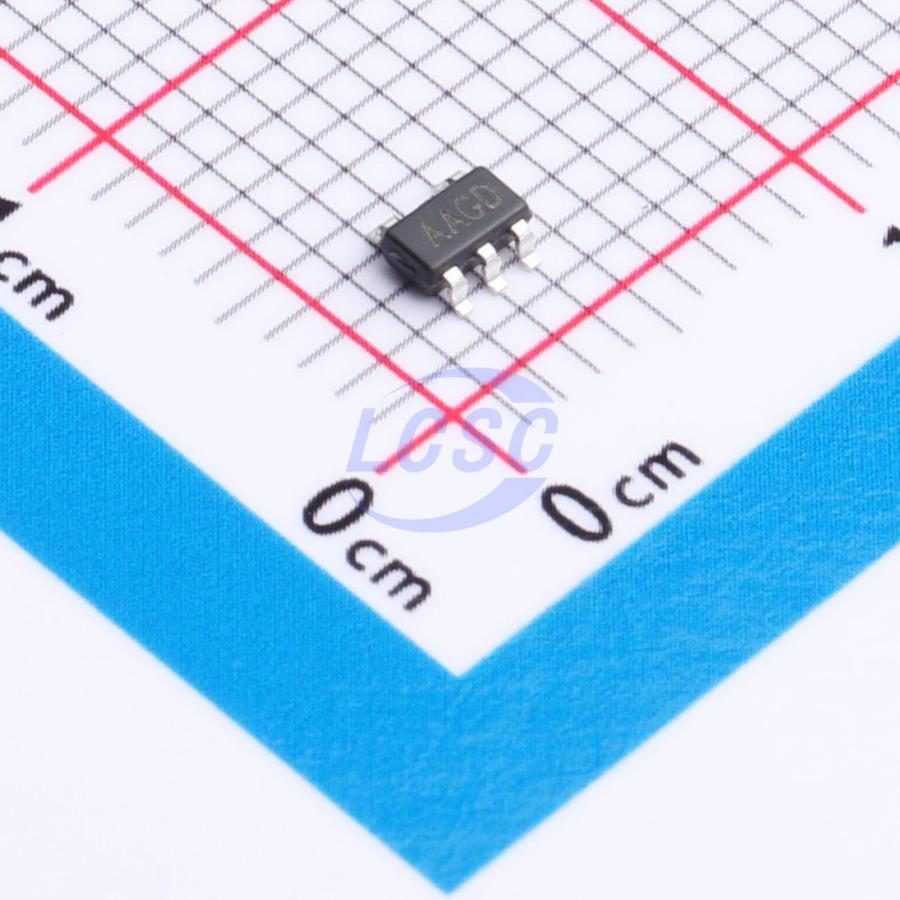

MCP6001OB
84mA 1 3.5mV 800V/ms 1pA 70dB 1MHz 75uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- MCP6001OB
- Store part #
- C51026333
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,735 in stock
#C51026333
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.79 | ₹58.95 |
| 50+ | ₹9.30 | ₹465.00 |
| 150+ | ₹8.04 | ₹1,206.00 |
| 500+ | ₹7.12 | ₹3,560.00 |
| 3,000+ | ₹6.36 | ₹19,080.00 |
| 6,000+ | ₹5.99 | ₹35,940.00 |
5 × ₹11.79
₹58.95
excl. GST
₹69.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP6001OB
₹58.95 for 5 + GST
Specifications
- Output Current
- 84mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 800V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 75uA
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Dual Supply
- -3V~-900mV;900mV~3V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The 600X series features a 1MHz gain-bandwidth product, 0.8V/μs slew rate, and 75μA quiescent current per amplifier from a 5V supply. The series is designed to deliver performance in low-voltage and low-noise systems. They are capable of rail-to-rail output swing under heavy loads. The input common-mode voltage range includes ground, and the 600X series has a maximum input offset voltage of 3.5mV. The series is specified over the extended industrial temperature range of -40°C to +125°C. The operating voltage range is 1.8V to 6V. The 6001 single-channel version is available in green SC70-5 and SOT23-5 packages. The 6002 dual-channel version is available in SOP-8 and MSOP-8 packages. The 6004 quad-channel version is available in green SOP-14 and TSSOP-14 packages.
Applications
- ASIC input or output amplifier
- Sensor interface
- Medical instruments
- Portable systems
Key features
- Single-supply operating range: +1.8V ~ +6V
- Rail-to-rail input/output
- Gain bandwidth product: 1MHz (typical)
- Low input bias current: 1pA (typical)
- Low offset voltage: 3.5mV (maximum)
- Quiescent current per amplifier: 75μA (typical)
- Built-in RF EMI filter
- Operating temperature: -40°C ~ +125°C
- Small packages: 6001 available in SOT23-5 and SC70-5; 6002 available in SOP-8 and MSOP-8; 6004 available in SOP-14 and TSSOP-14
