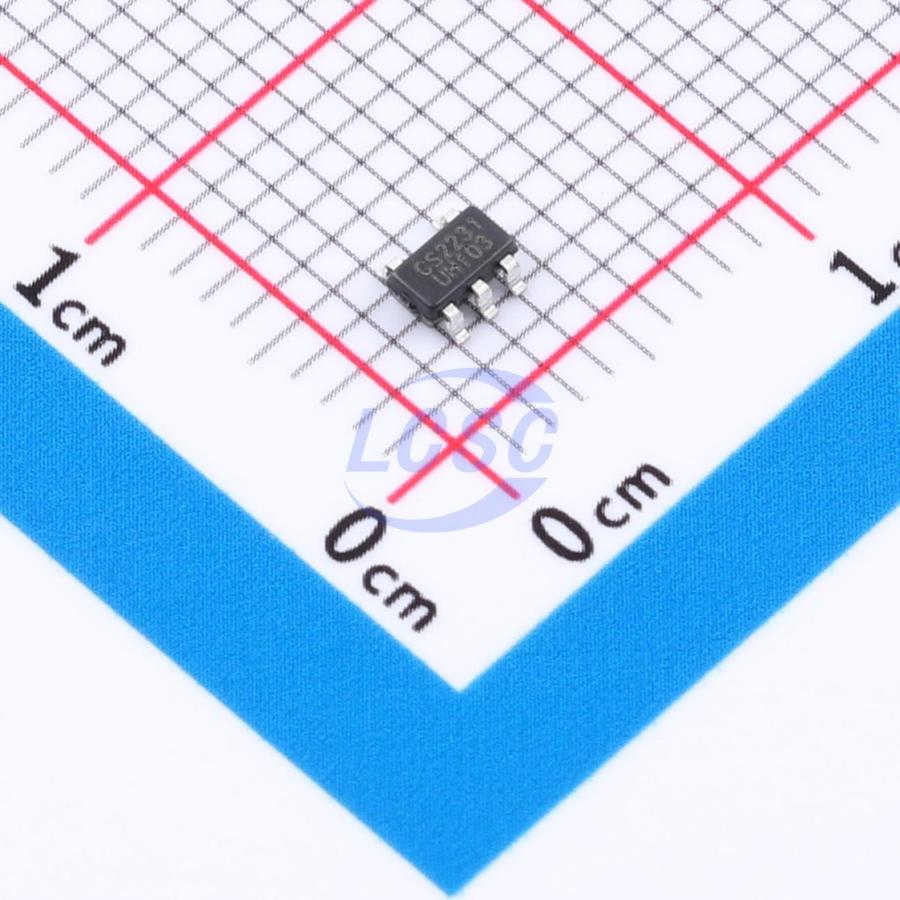

GS2231-TR

33mA 1 100uV 13V/us 100pA 120dB 720uA 3.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: Gainsil
Manufacturer part #: GS2231-TR
Store part #: C49326111
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,365 in stock

#C49326111

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹53.59	₹53.59
10+	₹42.36	₹423.60
30+	₹37.60	₹1,128.00
100+	₹31.55	₹3,155.00
500+	₹28.75	₹14,375.00
1,000+	₹27.23	₹27,230.00

Quantity (min 1)

1 × ₹53.59

₹53.59

excl. GST

₹63.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS2231-TR

₹53.59 for 1 + GST

Specifications

Output Current: 33mA
Number of Channels: 1
Vos - Input Offset Voltage: 100uV
Slew Rate: 13V/us
Input Offset Current(Ios): 25pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 100pA
Common Mode Rejection Ratio(CMRR): 120dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 720uA
Gain Bandwidth Product: 3.5MHz
Input Voltage Noise Density: 39nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 3V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.05 g

Overview

The GS223X series amplifiers are newest high supply voltage amplifiers with low offset, low power and stable high frequency response. Good AC performance with 3.5MHz bandwidth, 13V/μs slew rate and low distortion while drawing only 0.72mA of quiescent current per amplifier. The input common-mode voltage range extends to -VS, and the outputs swing rail-to-rail. The GS223X family can be used as plug-in replacements for many commercially available op-amps to reduce power and improve input/output range and performance.

Applications

Instrumentation
Motor Control
Active Filters
ASIC Input or Output Amplifier
Industrial Control
Sensor Interface

Key features

Supply Voltage: 3.0V to 36V
Offset Voltage: ±100μV
Maximum Differential Input Voltage Range to Supply Rail, can Work as Comparator
Input Rail to -VS, Rail to Rail Output
Bandwidth: 3.5MHz
Slew Rate: 13V/μs
Excellent EMI Suppress Performance: 45dB at Quiescent Current: 0.72mA per Amplifier (Typ)
-40°C to 125°C Operation Temperature Range
Small Package:
GS2231 Available in SOT23 - 5 Package
GS2232 Available in SOP - 8 and MSOP - 8 Packages
GS2234 Available in SOP - 14 and TSSOP - 14 Packages
