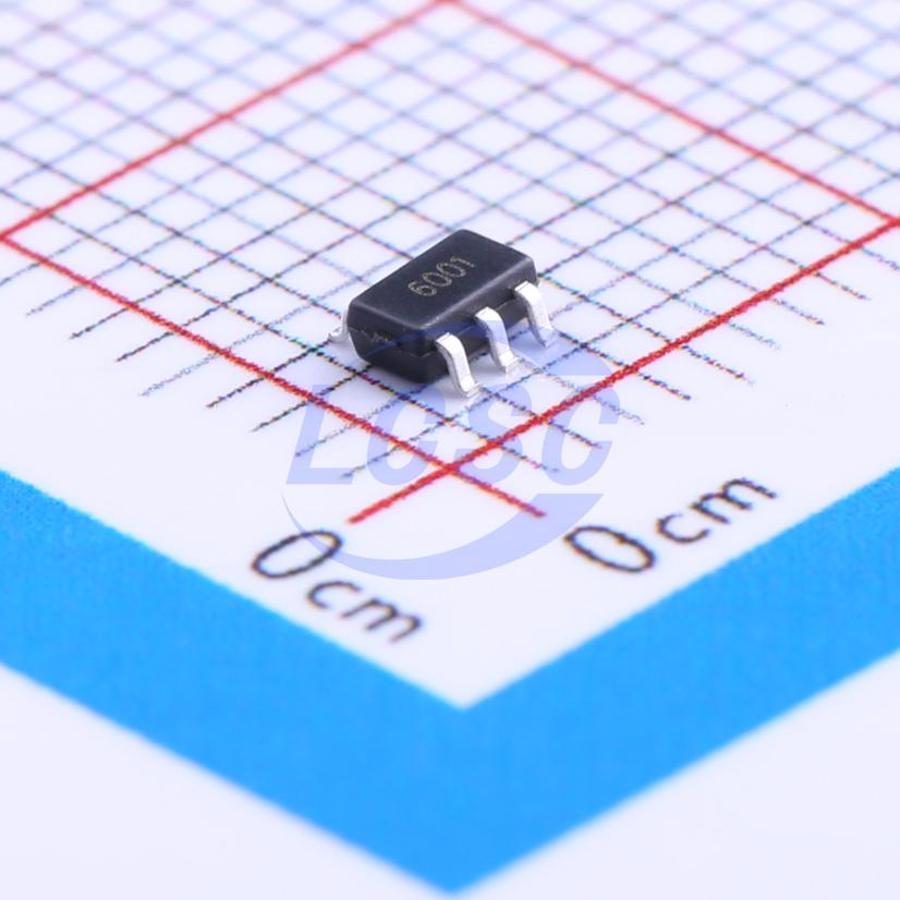

GS6001-TR

8mA 1 3.5mV 800V/ms 1pA 70dB 1MHz 75uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

1MHZ CMOS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: Gainsil
Manufacturer part #: GS6001-TR
Store part #: C157700
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,235 in stock

#C157700

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.39	₹101.95
50+	₹15.93	₹796.50
150+	₹14.01	₹2,101.50
500+	₹11.64	₹5,820.00
3,000+	₹10.26	₹30,780.00
6,000+	₹9.63	₹57,780.00

Quantity (min 5, multiples of 5)

5 × ₹20.39

₹101.95

excl. GST

₹120.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS6001-TR

₹101.95 for 5 + GST

Specifications

Output Current: 8mA
Number of Channels: 1
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 800V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 75uA
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -3V~-900mV;900mV~3V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

The GS600X family have a high gain-bandwidth product of 1MHz, a slew rate of 0.8V/μs, and a quiescent current of 75μA amplifier at 5V. The GS600X family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for GS600X family. They are specified over the extended industrial temperature range ( -40°C to +125°C). The operating range is from 1.8V to 6V. The GS6001 single is available in Green SC70-5 and SOT23-5 packages. The GS6002 dual is available in Green SOP-8 and MSOP-8 packages. The GS6004 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication Smoke Detectors
Audio Output
Piezoelectric Transducer Amplifier
Medical Instrumentation
Portable Systems

Key features

Single-Supply Operation from +1.8V~+6V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3.5mV (Max)
Quiescent Current: 75μA per Amplifier (Typ)
Embedded RF Anti-EMI Filter
Operating Temperature: -40°C~+125°C
Small Package:
GS6001 Available in SOT23-5 and SC70-5 Packages
GS6002 Available in SOP-8 and MSOP-8 Packages
GS6004 Available in SOP-14 and TSSOP-14 Packages
