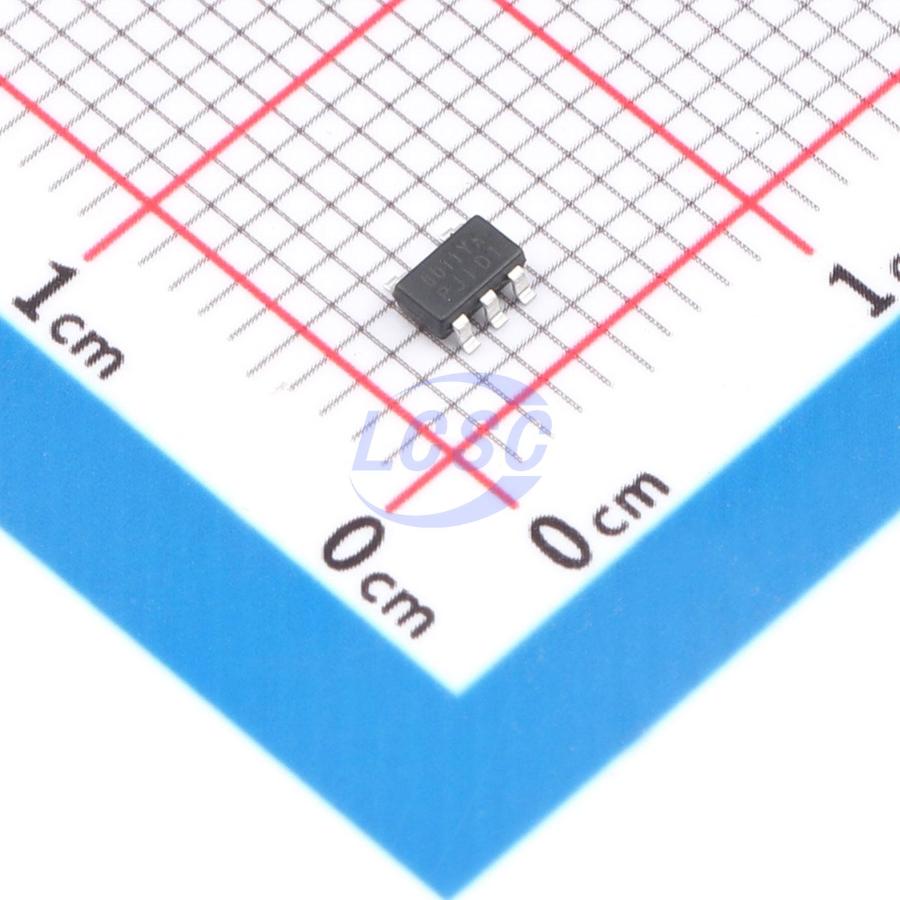

GS6011YA-TR

60mA 1 50uV 700V/ms 5pA 110dB 1MHz 65uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: Gainsil
Manufacturer part #: GS6011YA-TR
Store part #: C52211861
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,135 in stock

#C52211861

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹17.66	₹88.30
50+	₹14.04	₹702.00
150+	₹12.21	₹1,831.50
500+	₹10.85	₹5,425.00
3,000+	₹9.76	₹29,280.00
6,000+	₹9.22	₹55,320.00

Quantity (min 5, multiples of 5)

5 × ₹17.66

₹88.30

excl. GST

₹104.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS6011YA-TR

₹88.30 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 50uV
Slew Rate: 700V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 5pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 65uA
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g

Overview

GS6011A/YA features a 1MHz gain-bandwidth product, 0.7V/μs slew rate, and 65μA quiescent current per amplifier at 5V. This series is designed to deliver performance in low-voltage, low-noise systems, capable of driving heavy loads with rail-to-rail output swing. The input common-mode voltage range includes ground, with a maximum input offset voltage of 400μV. Operating temperature range covers extended industrial grade (-40°C ~ +125°C), supply voltage range of 1.8V ~ 5.5V, available in RoHS-compliant SC70-5 and SOT23-5 packages.

Applications

ASIC input or output amplifier
Sensor interface
Medical communications
Smoke detector
Audio output

Key features

Single-supply operating range: +1.8V ~ +5.5V
Rail-to-rail input/output
Gain bandwidth product: 1MHz (typical)
Low input bias current: 5pA (typical)
Low offset voltage: 400μV (maximum)
Quiescent current: 65μA per amplifier (typical)
Built-in RF EMI filter
Operating temperature range: -40°C ~ +125°C
Small form factor: GS6011A/YA available in SOT23-5 and SC70-5 packages
