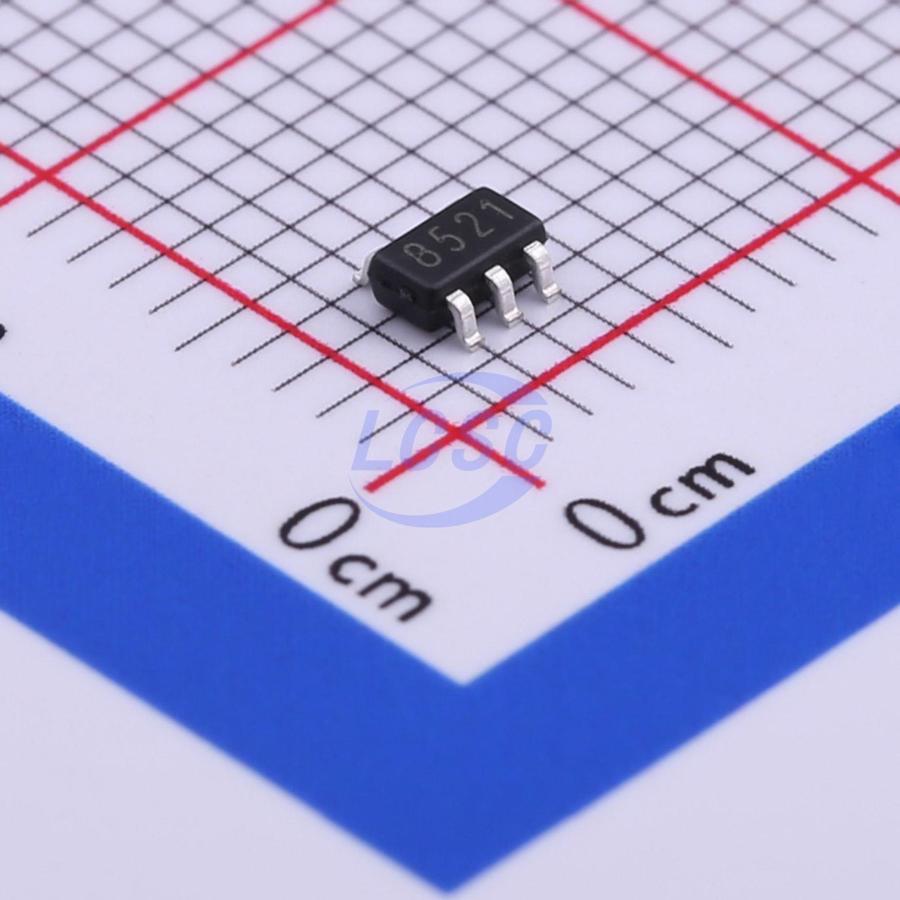

GS8521-TR

58mA 1 3.5mV 70V/ms 1pA 114dB 150kHz 5.5uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

150KHz CMoS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: Gainsil
Manufacturer part #: GS8521-TR
Store part #: C431314
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,320 in stock

#C431314

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹23.27	₹116.35
50+	₹18.27	₹913.50
150+	₹16.13	₹2,419.50
500+	₹13.45	₹6,725.00
3,000+	₹11.59	₹34,770.00
6,000+	₹10.89	₹65,340.00

Quantity (min 5, multiples of 5)

5 × ₹23.27

₹116.35

excl. GST

₹137.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8521-TR

₹116.35 for 5 + GST

Specifications

Output Current: 58mA
Number of Channels: 1
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 70V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 114dB
Input Offset Voltage Drift(Vos TC): 108uV/℃
Gain Bandwidth Product: 150kHz
Quiescent Current: 5.5uA
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 85nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g

Overview

The GS852X family have a high gain-bandwidth product of 150KHz, a slew rate of 0.07V/μs, and a quiescent current of 5.5μA/amplifier at 5V. The GS852X family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for GS852X family. They are specified over the extended industrial temperature range ( -40°C to +125°C). The operating range is from 2.1V to 5.5V. The GS8521 single is available in Green SOT-23-5 packages. The GS8522 Dual is available in Green SOP-8 and MSOP-8 packages. The GS8524 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication
Smoke Detectors

Key features

Single-Supply Operation from +2.1V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 150KHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3.5mV (Max)
Quiescent Current: 5.5μA per Amplifier (Typ)
Operating Temperature: -40°C ~ +125°C
Embedded RF Anti-EMI Filter
Small Package:
GS8521 Available in SOT23-5 Package
GS8522 Available in SOP-8 and MSOP-8 Packages
GS8524 Available in SOP-14 and TSSOP-14 Packages
