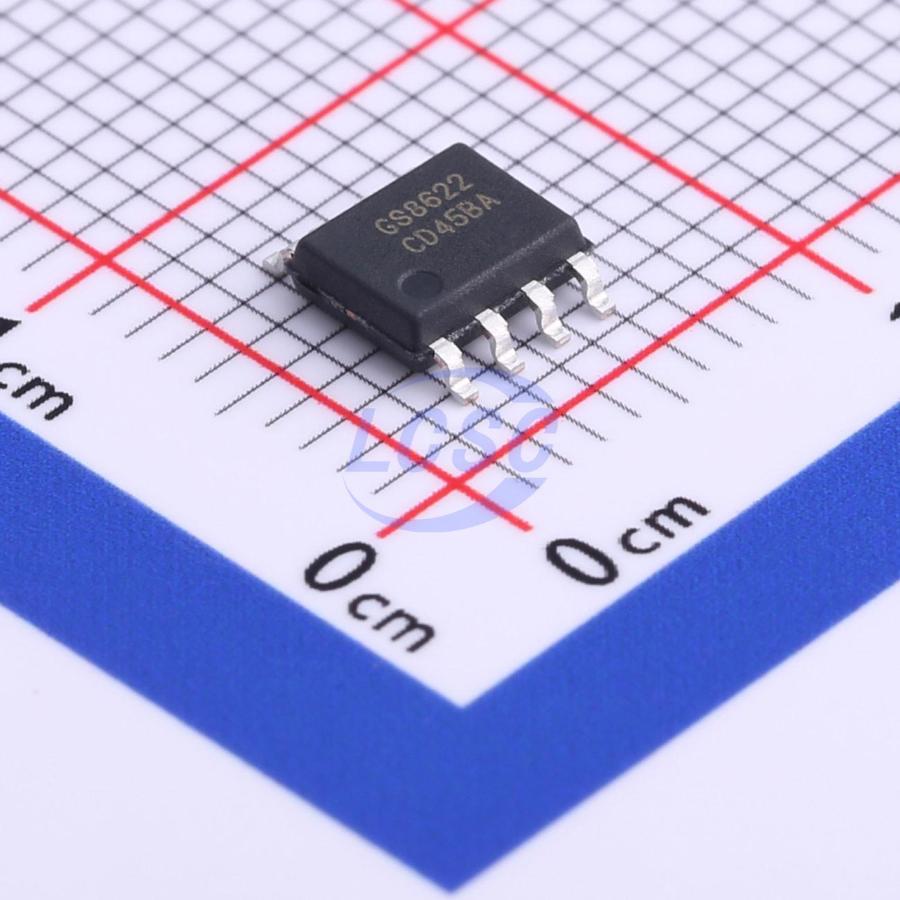

GS8622-SR

53mA 2 3.5mV 1.66V/us 1pA 82dB 250uA 3MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

3MHZ CMOS Rail-to-Rail IO Opamps

Manufacturer: Gainsil
Manufacturer part #: GS8622-SR
Store part #: C605416
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,985 in stock

#C605416

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹33.19	₹165.95
50+	₹26.41	₹1,320.50
150+	₹23.50	₹3,525.00
500+	₹19.86	₹9,930.00
2,500+	₹18.24	₹45,600.00
4,000+	₹17.28	₹69,120.00

Quantity (min 5, multiples of 5)

5 × ₹33.19

₹165.95

excl. GST

₹195.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GS8622-SR

₹165.95 for 5 + GST

Specifications

Output Current: 53mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 1.66V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 82dB
Input Offset Voltage Drift(Vos TC): 2.4uV/℃
Quiescent Current: 250uA
Gain Bandwidth Product: 3MHz
Features: Enable/shutdown function;Built-in compensation
Input Voltage Noise Density: 18nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.175 g

Overview

The GS8621/22/24 have a high gain-bandwidth product of 3MHz, a slew rate of 1.66V/μs, and a quiescent current of 250μA per amplifier at 5v. The GS8621/22/24 are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for GS8621/22/24. They are specified over the extended industrial temperature range ( -40°C to +125°C). The operating range is from 2.1V to 5.5V. The GS8621 single is available in Green SC70-5, SOT23-5 and SOP-8 packages. The GS8622 dual is available in Green SOP-8 and MSOP-8 packages. The GS8624 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

Sensors
Active Filters
Cellular and Cordless Phones
Laptops and PDAs
Audio
Handheld Test Equipment
Battery-Powered Instrumentation
A/D Converters

Key features

Single-Supply Operation from +2.1V~+5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 3MHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3.5mV (Max)
Quiescent Current: 250μA per Amplifier (Typ)
Operating Temperature: -40°C~+125°C
Small Package:
GS8621 Available in SOT23-5, SOP-8 and SC70-5 Packages
GS8622 Available in SOP-8 and MSOP-8 Packages
GS8624 Available in SOP-14 and TSSOP-14 Packages
