GainsilDatasheet (PDF)

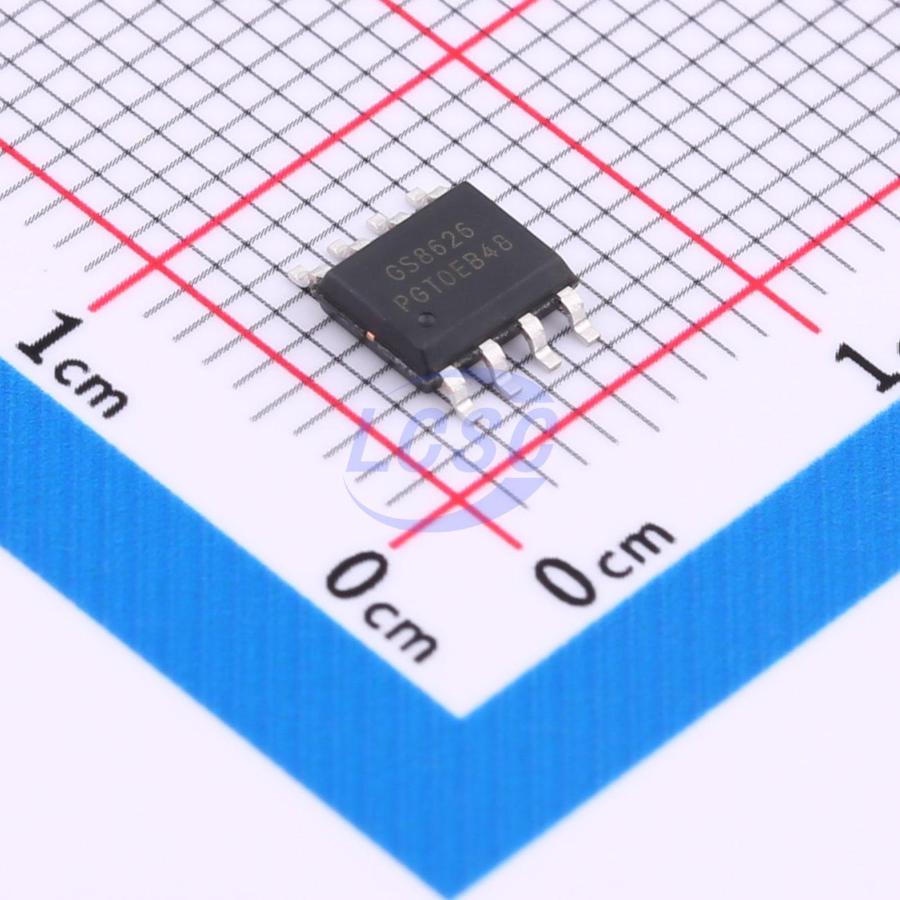

GS8626-SR
70mA 2 3.9mV 17V/us 82dB 3.5pA 2.2mA 20MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
20MHz CMOS Rail-to-Rail IO Opamps
- Manufacturer
- Gainsil
- Manufacturer part #
- GS8626-SR
- Store part #
- C5179660
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,075 in stock
#C5179660
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.27 | ₹136.35 |
| 50+ | ₹24.00 | ₹1,200.00 |
| 150+ | ₹22.60 | ₹3,390.00 |
| 500+ | ₹19.92 | ₹9,960.00 |
| 2,500+ | ₹19.14 | ₹47,850.00 |
| 4,000+ | ₹18.68 | ₹74,720.00 |
5 × ₹27.27
₹136.35
excl. GST
₹160.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GS8626-SR
₹136.35 for 5 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3.9mV
- Slew Rate
- 17V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Ib - Input Bias Current
- 3.5pA
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 2.2mA
- Gain Bandwidth Product
- 20MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 7nV/√Hz@10kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
The GS862X have a high gain-bandwidth product of 20MHz, a slew rate of 17V/μs, and a quiescent current of 2.2mA per amplifier at 5V. The GS862X are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for GS862X. They are specified over the extended industrial temperature range (-40℃ to +125℃). The operating range is from 2.5V to 5.5V. The GS8626 dual is available in Green SOP-8 and MSOP-8 packages. The GS8628 Quad is available in Green SOP-14 and TSSOP-14 packages.
Applications
- Sensors
- Active Filters
- Cellular and Cordless Phones
- Laptops and PDAs
- Audio
- Handheld Test Equipment
- Battery-Powered Instrumentation
- A/D Converters
Key features
- Single-Supply Operation from +2.5V ~ +5.5V
- Rail-to-Rail Input / Output
- Gain-Bandwidth Product: 20MHz (Typ.)
- Low Input Bias Current: 1pA (Typ.)
- Low Offset Voltage: 3.5mV (Max.)
- High Slew Rate: 17V/μs
- Settling Time to 0.1% with 2V Step: 0.2μs
- Low Noise: 7nV/√Hz @10kHz
- Quiescent Current: 2.2mA per Amplifier (Typ.)
- Operating Temperature: -40°C ~ +125°C
- Small Package:
- GS8626 Available in SOP-8 and MSOP-8 Packages
- GS8628 Available in SOP-14 and TSSOP-14 Packages
