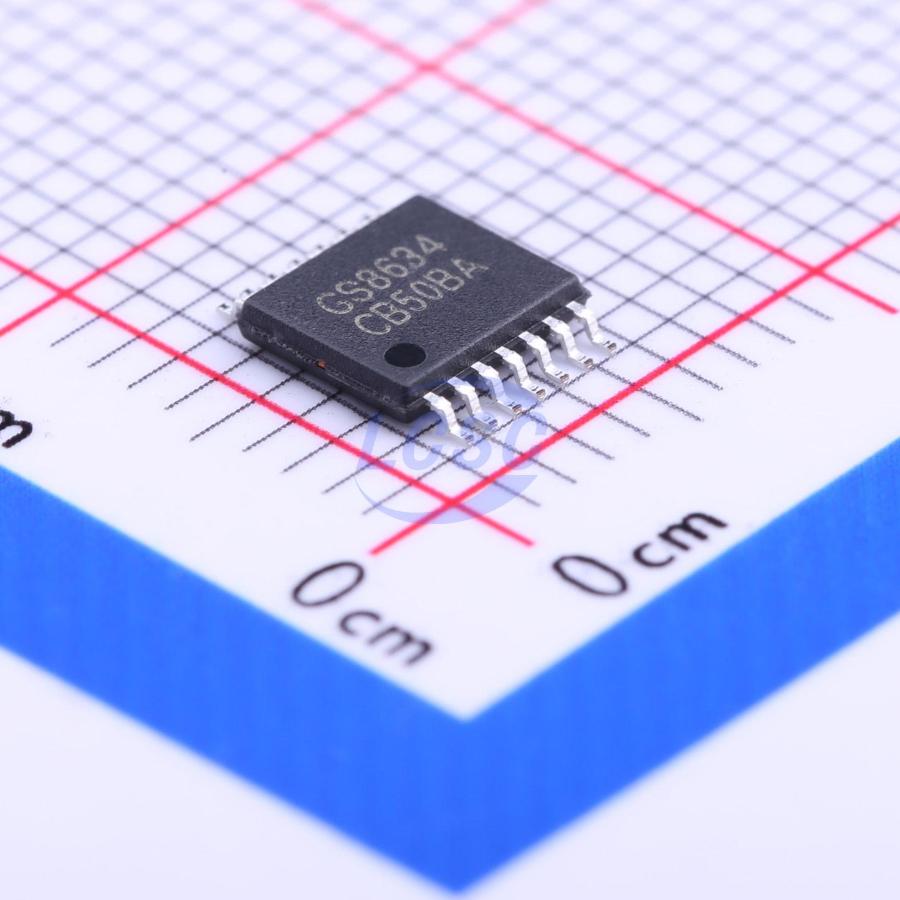

GS8634-TR

4mA 4 3.5mV 4.2V/us 1pA 90dB 470uA 6MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps

TSSOP-14RoHSActive

6MHz CMOS Rail-to-Rail IO Opamps

Manufacturer: Gainsil
Manufacturer part #: GS8634-TR
Store part #: C157706
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,120 in stock

#C157706

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹51.99	₹259.95
50+	₹41.71	₹2,085.50
150+	₹37.31	₹5,596.50
500+	₹31.82	₹15,910.00
3,000+	₹27.98	₹83,940.00
6,000+	₹26.51	₹1,59,060.00

Quantity (min 5, multiples of 5)

5 × ₹51.99

₹259.95

excl. GST

₹306.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS8634-TR

₹259.95 for 5 + GST

Specifications

Output Current: 4mA
Number of Channels: 4
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 4.2V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 2.4uV/℃
Quiescent Current: 470uA
Gain Bandwidth Product: 6MHz
Features: Enable/shutdown function
Input Voltage Noise Density: 13nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.178 g

Overview

The GS863X have a high gain-bandwidth product of 6MHz, a slew rate of 4.2V/μs, and a quiescent current of 470μμ per amplifier at 5V. The GS863X are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for GS863X. They are specified over the extended industrial temperature range ( -40°C to +125°C). The operating range is from 2.1V to 5.5V. The GS8631 single is available in Green SC70-5, SOT23-5 and SOP-8 packages. The GS8631NH single is available in Green SC70-6 and SOT23-6 packages. The GS8631NL single is available in Green SC70-6 and SOT23-6 packages. The GS8632 dual is available in Green SOP-8 and MSOP-8 packages. The GS8634 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

Sensors
Active Filters
Cellular and Cordless Phones
Laptops and PDAs
Audio
Handheld Test Equipment
Battery-Powered Instrumentation
A/D Converters

Key features

Single-Supply Operation from +2.1V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 6MHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3.5mV (Max)
Quiescent Current: 470μμ per Amplifier (Typ)
Chip Select with GS8631NH( active High ) and GS8631NL(active Low )
Operating Temperature: -40°C ~ +125°C
