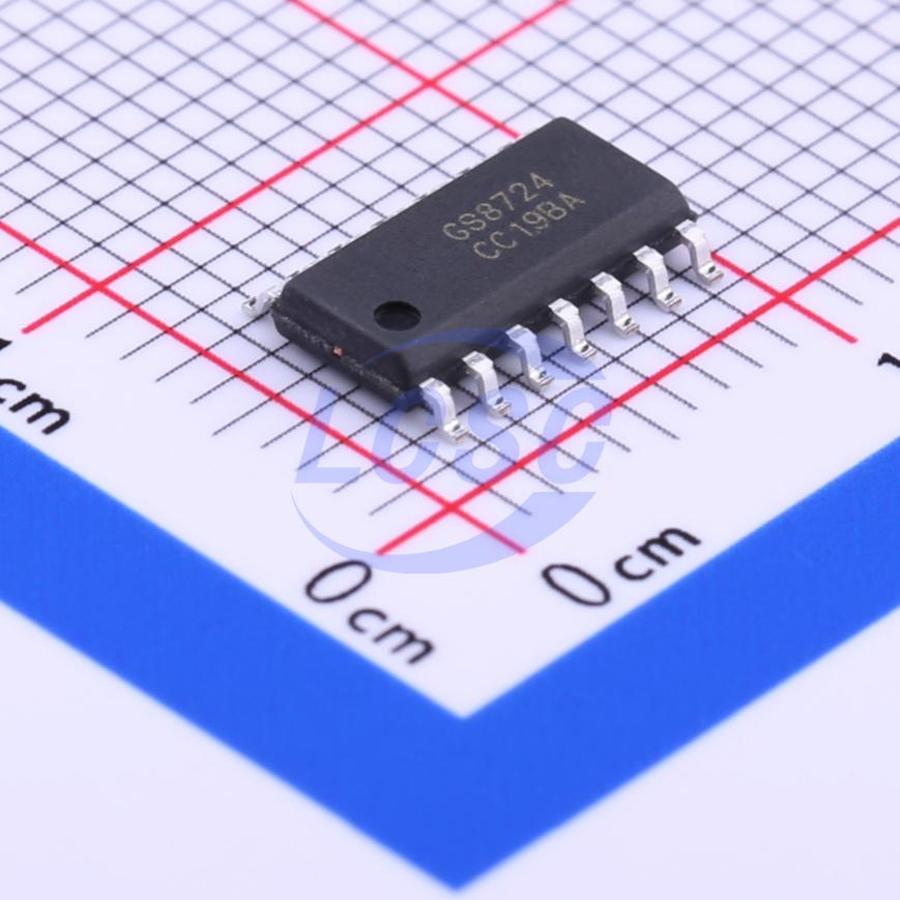

GS8724-SR

70mA 4 3.5mV 6V/us 82dB 1pA 1.1mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

CMOS Rail-to-Rail IO Opamps

Manufacturer: Gainsil
Manufacturer part #: GS8724-SR
Store part #: C157710
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,972 in stock

#C157710

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹46.24	₹46.24
10+	₹36.31	₹363.10
30+	₹32.16	₹964.80
100+	₹26.92	₹2,692.00
500+	₹24.57	₹12,285.00
1,000+	₹21.51	₹21,510.00

Quantity (min 1)

1 × ₹46.24

₹46.24

excl. GST

₹54.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

GS8724-SR

₹46.24 for 1 + GST

Specifications

Output Current: 70mA
Number of Channels: 4
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 6V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 82dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 15nV/℃
Quiescent Current: 1.1mA
Gain Bandwidth Product: 11MHz
Features: Enable/shutdown function
Input Voltage Noise Density: 8nV/√Hz@10kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.264 g

Overview

The GS872X have a high gain-bandwidth product of 11MHz, a slew rate of 9V/μs, and a quiescent current of 1.1mA per amplifier at 5V. The GS872X are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for GS872X. They are specified over the extended industrial temperature range ( -40°C to +125°C). The operating range is from 2.1V to 5.5V. The GS8721 single is available in Green SC70-5, SOT23-5 and SOP-8 packages. The GS8722 dual is available in Green SOP-8 and MSOP-8 and TSSOP-8 packages. The GS8724 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

Sensors
Active Filters
Cellular and Cordless Phones
Laptops and PDAs
Audio
Handheld Test Equipment
Battery-Powered Instrumentation
A/D Converters

Key features

Single-Supply Operation from +2.1V~+5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 11MHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3.5mV (Max)
High Slew Rate: 9V/μs
Settling Time to 0.1% with 2V Step: 0.3μs
Low Noise : 8nV/√Hz @10kHz
Quiescent Current: 1.1mA per Amplifier (Typ)
Operating Temperature: -40°C~+125°C
Small Package:
GS8721 Available in SOT23-5, SOP-8 and SC70-5 Packages
GS8722 Available in SOP-8 and MSOP-8 and TSSOP-8 Packages
GS8724 Available in SOP-14 and TSSOP-14 Packages
GS8721 Available in SOT23-6 and SC70-6 and SOP-8 Packages
