G-SwitchDatasheet (PDF)

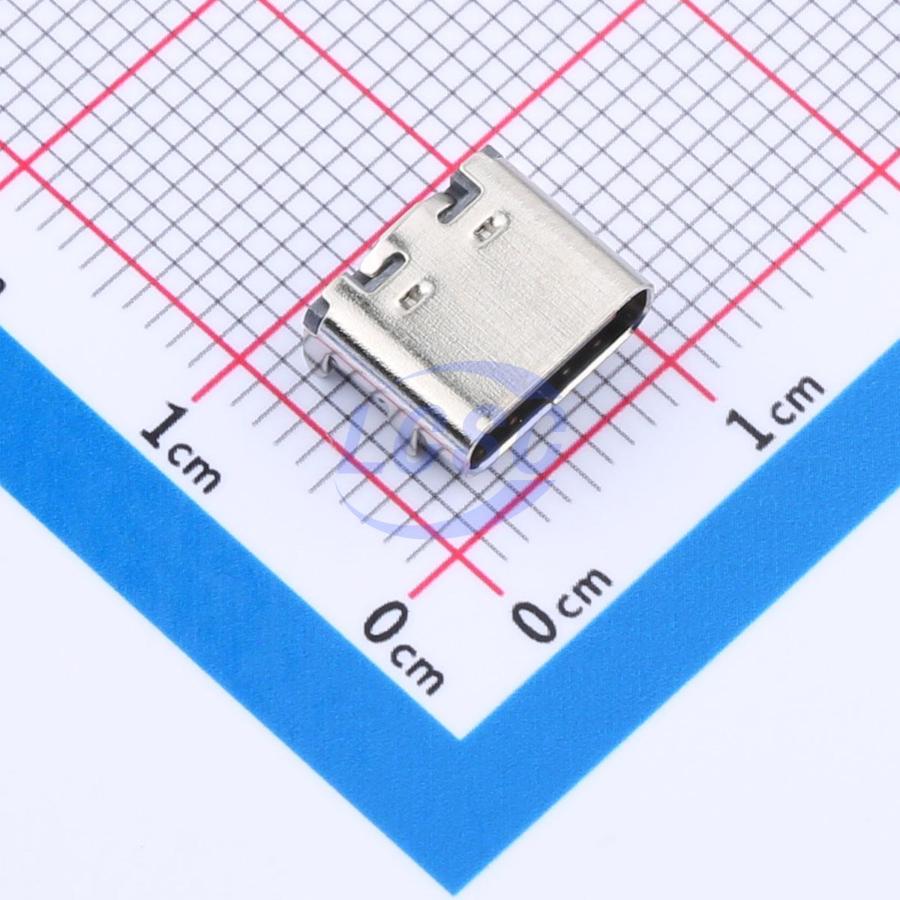

GT-USB-7010ASV
USB-C (USB TYPE-C) Receptacle Connector 16 Position Surface Mount, Right Angle
PopularSMDROHS CompliantActive
CONN RCPT USB 2.0 Type-C 16POS SMD R/A
- Manufacturer
- G-Switch
- Manufacturer part #
- GT-USB-7010ASV
- Store part #
- C2988369
- Package / case
- SMD
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
94,790 in stock
#C2988369
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.68 | ₹58.40 |
| 50+ | ₹9.50 | ₹475.00 |
| 150+ | ₹8.37 | ₹1,255.50 |
| 1,000+ | ₹6.83 | ₹6,830.00 |
| 2,000+ | ₹6.51 | ₹13,020.00 |
| 5,000+ | ₹6.28 | ₹31,400.00 |
5 × ₹11.68
₹58.40
excl. GST
₹68.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
GT-USB-7010ASV
₹58.40 for 5 + GST
Specifications
- Protocol Standard
- USB 2.0
- Number of Ports
- 1
- Number of Contacts
- 16P
- Connector Type
- Type-C
- Center Height
- 1.68mm
- Voltage Rating
- 24V
- Operating Temperature
- -40℃~+85℃
- Length
- 7.35mm
- Mounting Type
- Surface Mount, Right Angle
- Gender
- Female
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.806 g
Questions about GT-USB-7010ASV
What Is the Recommended Mounting Type for Seamless Usage and Production Implementation?
This component is engineered for automated assembly using surface mount technology (SMT). It features a right-angle orientation, which allows the receptacle to sit flat on the edge of your printed circuit board (PCB).
What Are the Core Technical Specifications Regarding Its Physical Size and Ratings?
The connector features a 16-pin layout, a total length of 7.35mm, and a center height of 1.68mm. Electrically, it supports a current rating of 3A and a voltage rating of 24V, with an operating temperature range from -40°C to +85°C.
What Are the Primary Application Scenarios for This 16-Pin USB Type-C Female Connector?
Thanks to its compact right-angle surface mount (SMD) design, 3A current rating, and 24V voltage rating, it is ideal for modern consumer electronics, IoT devices, power banks, charging docks, and low-profile embedded systems.
How Can I Find Suitable Alternatives or Replacements for This Component on Your Platform?
You can easily explore substitute options by clicking the "Show similar products" link on the product page, which displays thousands of other USB Type-C connector assemblies matching similar physical or electrical profiles.
Is This Right-Angle Type-C Connector Compatible With Standard USB 2.0 Data Transfer?
Yes, the GT-USB-7010ASV fully supports the USB 2.0 protocol standard, allowing for reliable data transmission alongside its power delivery capabilities.
