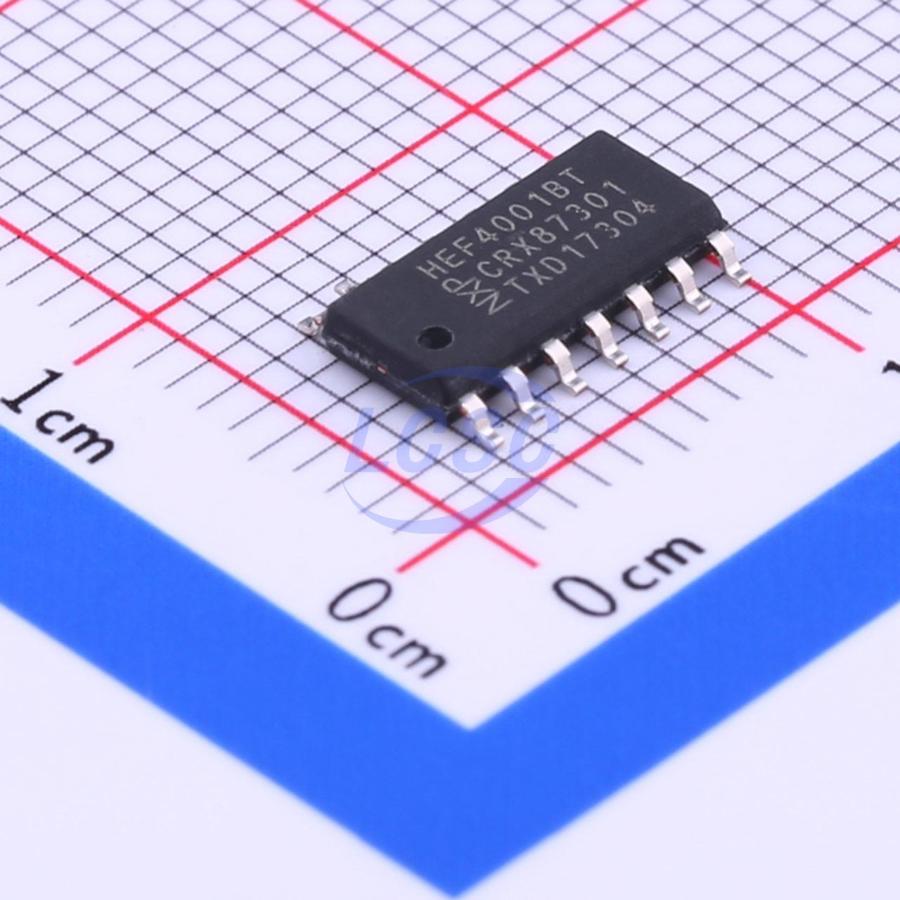

HEF4001BT,653
₹183.10 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 1.5V~4V
- Logic Family
- 4000B Series
- Output Logic Level - High
- 14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 40ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The HEF4001B is a quad 2-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.
Key features
- Wide supply voltage range from 3.0 V to 15.0 V
- CMOS low power dissipation
- High noise immunity
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Complies with JEDEC standard JESD 13-B
- ESD protection: HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-B exceeds 200 V
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
