NexperiaDatasheet (PDF)

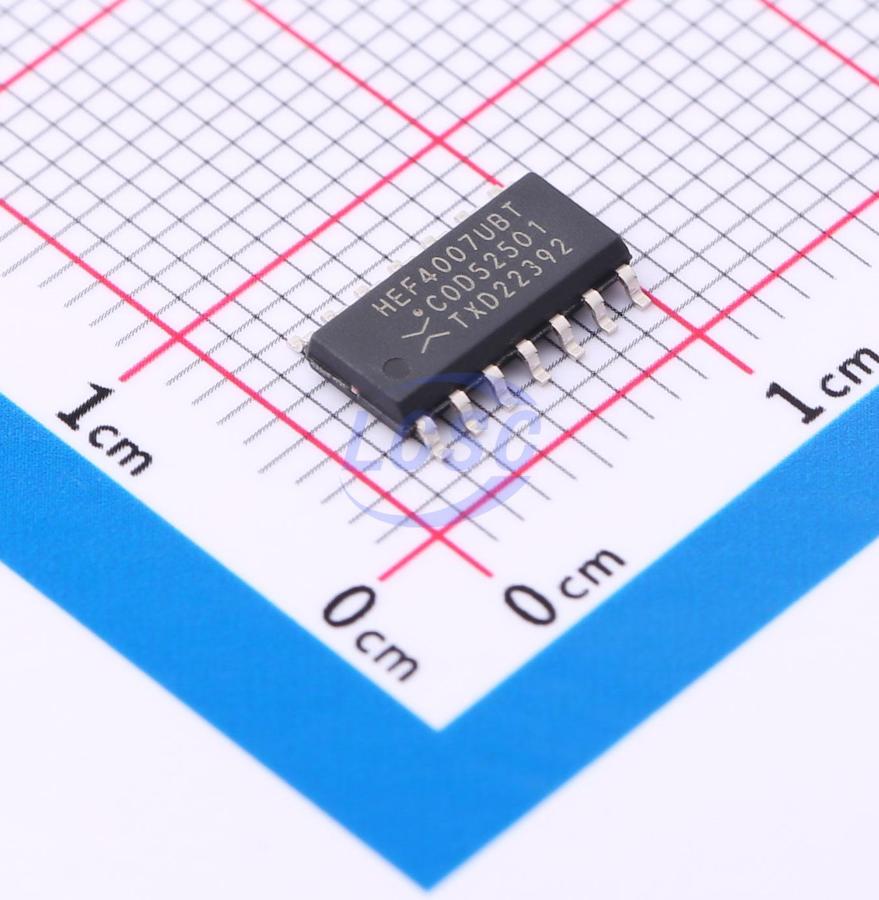

HEF4007UBT,653
SO-14 Specialty Logic RoHS
SO-14ROHS3 CompliantActive
Dual complementary pair and inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4007UBT,653
- Store part #
- C551315
- Package / case
- SO-14
- Category
- Specialty Logic
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,338 in stock
#C551315
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.88 | ₹64.88 |
| 10+ | ₹51.60 | ₹516.00 |
| 30+ | ₹45.72 | ₹1,371.60 |
| 100+ | ₹38.75 | ₹3,875.00 |
| 500+ | ₹35.50 | ₹17,750.00 |
| 1,000+ | ₹33.75 | ₹33,750.00 |
1 × ₹64.88
₹64.88
excl. GST
₹76.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4007UBT,653
₹64.88 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 3V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
The HEF4007UB is a dual complementary pair and an inverter with access to each device. It has three n-channel and three p -channel enhancement mode MOS transistors. It operates over a recommended V_DD power supply range of 2 V to 15 V referenced to V_SS (usually ground). Unused inputs must be connected to V_DD, V_SS, or another input.
Applications
- High input impedance amplifiers
- Linear amplifiers
- (Crystal) oscillators
- High-current sink and source drivers
- High impedance buffers
Key features
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Specified from -40 ℃ to +85 ℃
- Complies with JEDEC standard JESD 13-B
- Inputs and outputs are protected against electrostatic effects
