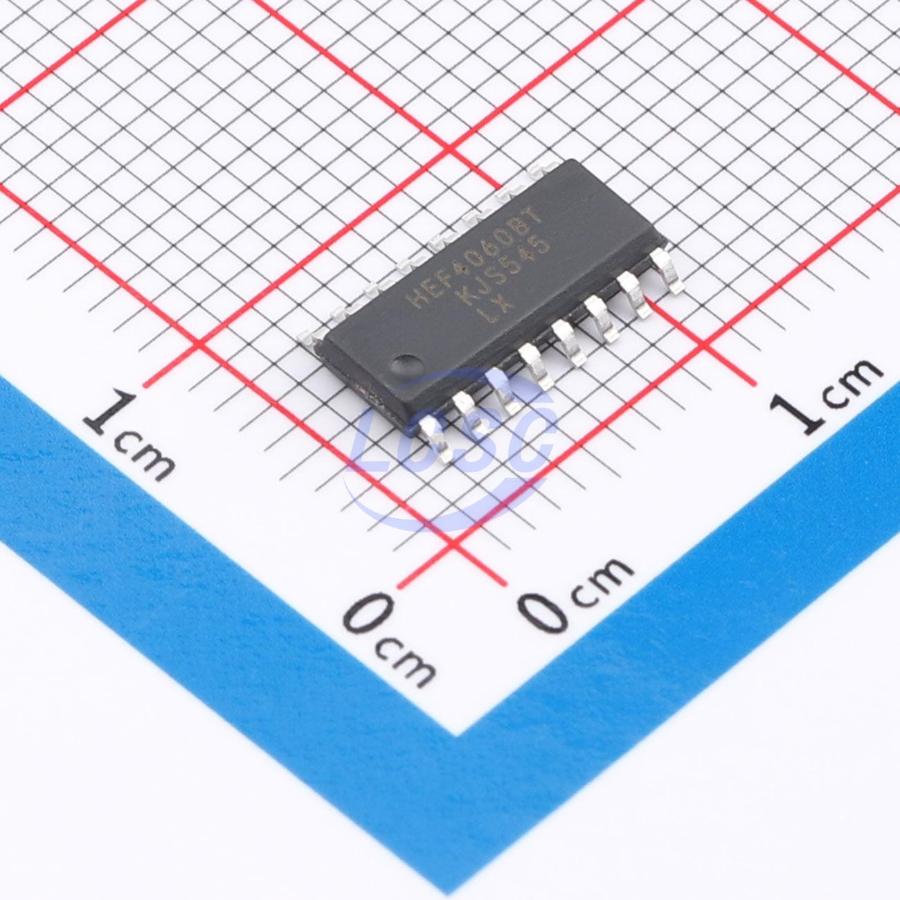

HEF4060BT(LX)
Falling Edge 1 12MHz SOP-16 Counters, Dividers
- Manufacturer
- lingxingic
- Manufacturer part #
- HEF4060BT(LX)
- Store part #
- C53198616
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C53198616
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.47 | ₹92.35 |
| 50+ | ₹14.70 | ₹735.00 |
| 150+ | ₹12.81 | ₹1,921.50 |
| 500+ | ₹11.39 | ₹5,695.00 |
| 2,500+ | ₹10.25 | ₹25,625.00 |
| 4,000+ | ₹9.68 | ₹38,720.00 |
5 × ₹18.47
₹92.35
excl. GST
₹108.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HEF4060BT(LX)
₹92.35 for 5 + GST
Specifications
- Logic Family
- HEF
- Voltage - Supply
- 3V~15V
- Direction
- Up Counter
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+125℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 100ns
- Count Rate
- 12MHz
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
The HEF4060 is a 14-stage ripple-carry binary counter/divider and oscillator, featuring three oscillator terminals, ten buffered outputs, and an asynchronous master reset input. The oscillator configuration allows RC or crystal oscillator circuits to be designed, and can also be driven by an external clock signal. The counter advances on the falling edge of the clock signal. A high level on the master reset input resets the counter. The device operates over a supply voltage range of 3V to 15V. Unused inputs must be connected to VDD, VSS, or other inputs.
Key features
- Wide supply voltage range: 3V to 15V
- Tolerates slow clock rise and fall times
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection on all inputs and outputs
- Operating temperature range: -40°C to +125°C
- Package: SOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC4060DR(LX)#C22466325lingxingic · SOP-16 | lingxingic | SOP-16 | 2,260 | ₹18.06 · 2,260 in stock | View |
