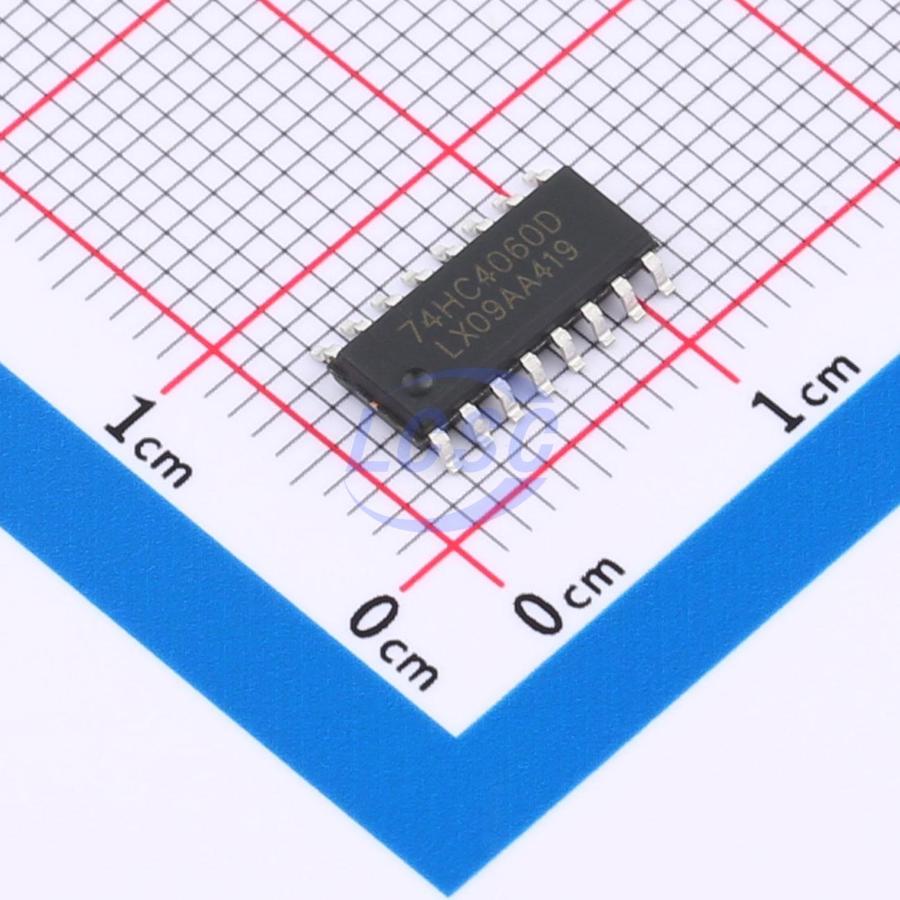

SN74HC4060DR(LX)
Falling Edge 1 12MHz SOP-16 Counters, Dividers
14-stage Ripple-carry Binary Counter/Divider and Oscillator
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC4060DR(LX)
- Store part #
- C22466325
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,260 in stock
#C22466325
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.06 | ₹90.30 |
| 50+ | ₹14.20 | ₹710.00 |
| 150+ | ₹12.26 | ₹1,839.00 |
| 500+ | ₹10.82 | ₹5,410.00 |
| 2,500+ | ₹9.66 | ₹24,150.00 |
| 5,000+ | ₹9.08 | ₹45,400.00 |
5 × ₹18.06
₹90.30
excl. GST
₹106.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC4060DR(LX)
₹90.30 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 3V~15V
- Direction
- Up Counter
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+125℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 100ns
- Count Rate
- 12MHz
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.278 g
Overview
SN74HC4060 is a 14 - stage ripple - carry binary counter/divider and oscillator with three oscillator terminals(RS,REXT and CEXT), ten buffered outputs (Q3 to Q9 and Q11 to Q13) and an overriding asynchronous master reset input (MR). The oscillator configuration allows design of either RC or crystal oscillator circuits. The oscillator may be replaced by an external clock signal at input RS. The counter advances on the negative - going transition of RS. A HIGH level on MR resets the counter (Q3 to Q9 and Q11 to Q13=LOW), independent of other input conditions. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range from 3V to 15V
- Tolerant of slow clock rise and fall times
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Inputs and outputs are protected against electrostatic effects
- Specified from - 40°C to +125°C
- Packaging information: DIP16/SOP16/TSSOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HEF4060BT(LX)#C53198616lingxingic · SOP-16 | lingxingic | SOP-16 | 2,945 | ₹18.47 · 2,945 in stock | View |
