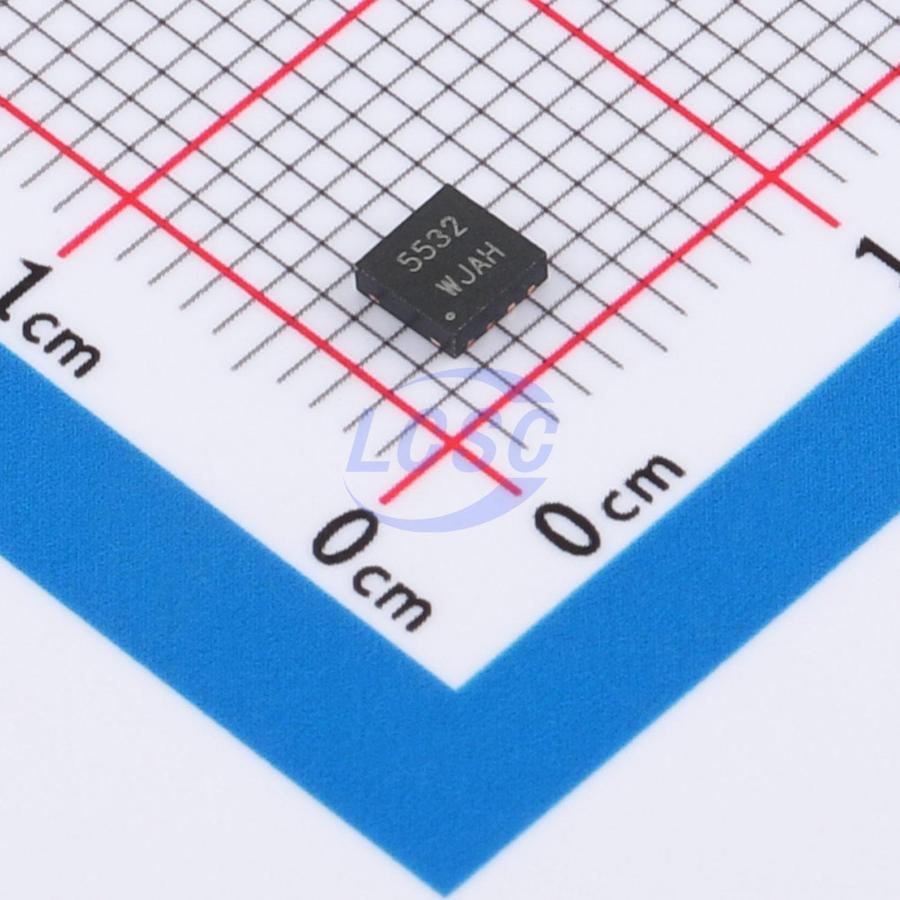

HG5532DQ3/TR
2 500uV 11V/us 100dB 30nA 5.5mA 10MHz DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps
DFN-8(3x3)RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG5532DQ3/TR
- Store part #
- C52204735
- Package / case
- DFN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,935 in stock
#C52204735
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.29 | ₹76.45 |
| 50+ | ₹12.16 | ₹608.00 |
| 150+ | ₹10.58 | ₹1,587.00 |
| 500+ | ₹9.41 | ₹4,705.00 |
| 2,500+ | ₹8.45 | ₹21,125.00 |
| 5,000+ | ₹7.99 | ₹39,950.00 |
5 × ₹15.29
₹76.45
excl. GST
₹90.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
HG5532DQ3/TR
₹76.45 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 11V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 30nA
- Quiescent Current
- 5.5mA
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
The HG5532 contains two independent, internally frequency-compensated low-noise dual op-amps, featuring high slew rate and low output noise. It is suitable for high-quality audio equipment and instrumentation control systems. The device is available in DIP-8, DFN-8, SOP-8, and MSOP-8 packages.
Key features
- Internal frequency compensation
- High DC voltage gain (approx. 100dB)
- High slew rate (10V/μs typical)
- Low input noise voltage 8nV/√Hz (f0 = 1kHz)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SA5532DQ3/TR#C52160371HGSEMI · DFN-8(3x3) | HGSEMI | DFN-8(3x3) | 4,975 | ₹19.71 · 4,975 in stock | View |
 | NE5532DQ3/TR#C52160367HGSEMI · DFN-8(3x3) | HGSEMI | DFN-8(3x3) | 4,095 | ₹15.35 · 4,095 in stock | View |
 | TLV9062DQ3/TR-HG#C53311466HGSEMI · DFN-8(3x3) | HGSEMI | DFN-8(3x3) | 4,920 | ₹25.06 · 4,920 in stock | View |
