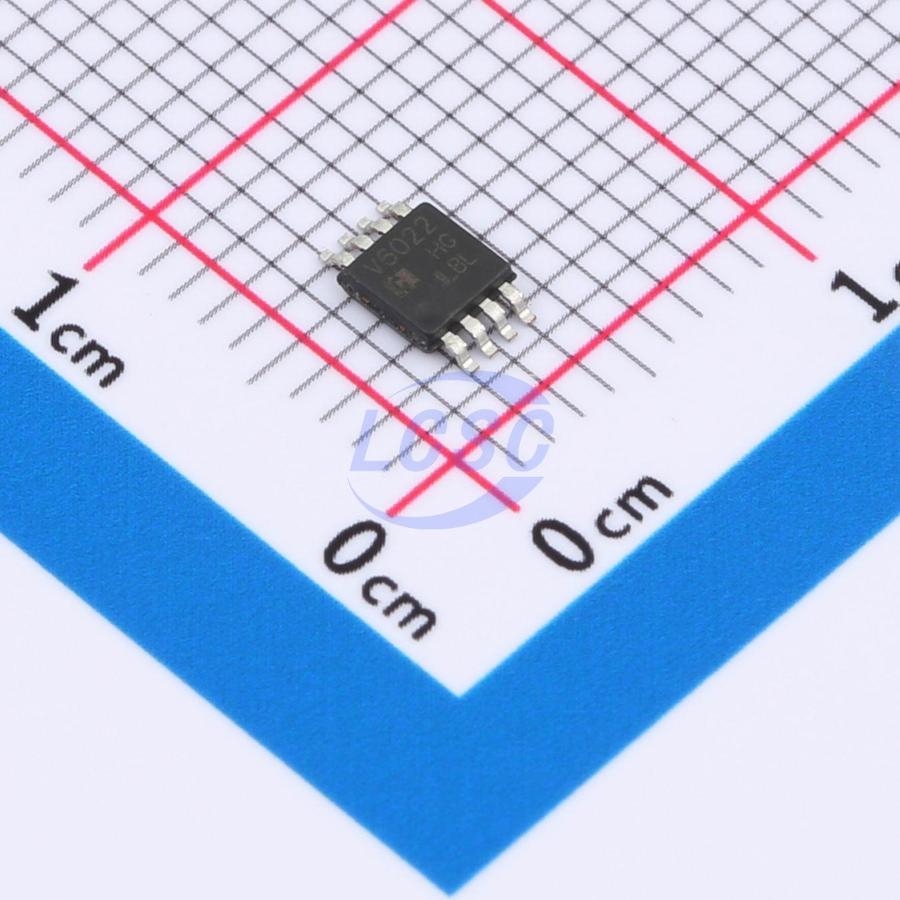

HGV6022MM/TR

70mA 2 3.5mV 9V/us 1pA 82dB 1.1mA 11MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

11MHz CMOS Rail-to-Rail IO Opamps

Manufacturer: HGSEMI
Manufacturer part #: HGV6022MM/TR
Store part #: C7432312
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,945 in stock

#C7432312

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹27.33	₹136.65
50+	₹23.88	₹1,194.00
150+	₹22.40	₹3,360.00
500+	₹20.53	₹10,265.00
3,000+	₹19.71	₹59,130.00
6,000+	₹19.22	₹1,15,320.00

Quantity (min 5, multiples of 5)

5 × ₹27.33

₹136.65

excl. GST

₹161.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HGV6022MM/TR

₹136.65 for 5 + GST

Specifications

Output Current: 70mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 9V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 82dB
Input Offset Voltage Drift(Vos TC): 2.4uV/℃
Quiescent Current: 1.1mA
Gain Bandwidth Product: 11MHz
Features: Enable/shutdown function
Input Voltage Noise Density: 8nV/√Hz@10kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.193 g

Overview

The HGV602X have a high gain-bandwidth product of 11MHz, a slew rate of 9V/μs, and a quiescent current of 1.1mA per amplifier at 5V. The HGV602X are designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for HGV602X. They are specified over the extended industrial temperature range (-40 °C to +85 °C). The operating range is from 2.1V to 5.5V. The HGV6021 single is available in Green SC70-5, SOT-23-5, MSOP-8 and SOP-8 packages. The HGV6022 dual is available in Green SOP-8 and MSOP-8 packages. The HGV6024 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

Sensors
Active Filters
Cellular and Cordless Phones
Laptops and PDAs
Audio
Handheld Test Equipment
Battery-Powered Instrumentation
A/D Converters

Key features

Single-Supply Operation from +2.1V ~ +5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 11MHz (Typ.)
Low Input Bias Current: 1pA (Typ.)
Low Offset Voltage: 3.5mV (Max.)
High Slew Rate: 9V/μs
Settling Time to 0.1% with 2V Step: 0.3μs
Low Noise: 8nV/√Hz @10kHz
Quiescent Current: 1.1mA per Amplifier (Typ.)
Operating Temperature: -40°C ~ +85°C
Small Package: HGV6021 Available in SOT23-5, MSOP-8 and SC70-5 Packages; HGV6022 Available in SOP-8 and MSOP-8 Packages; HGV6024 Available in SOP-14 and TSSOP-14 Packages
