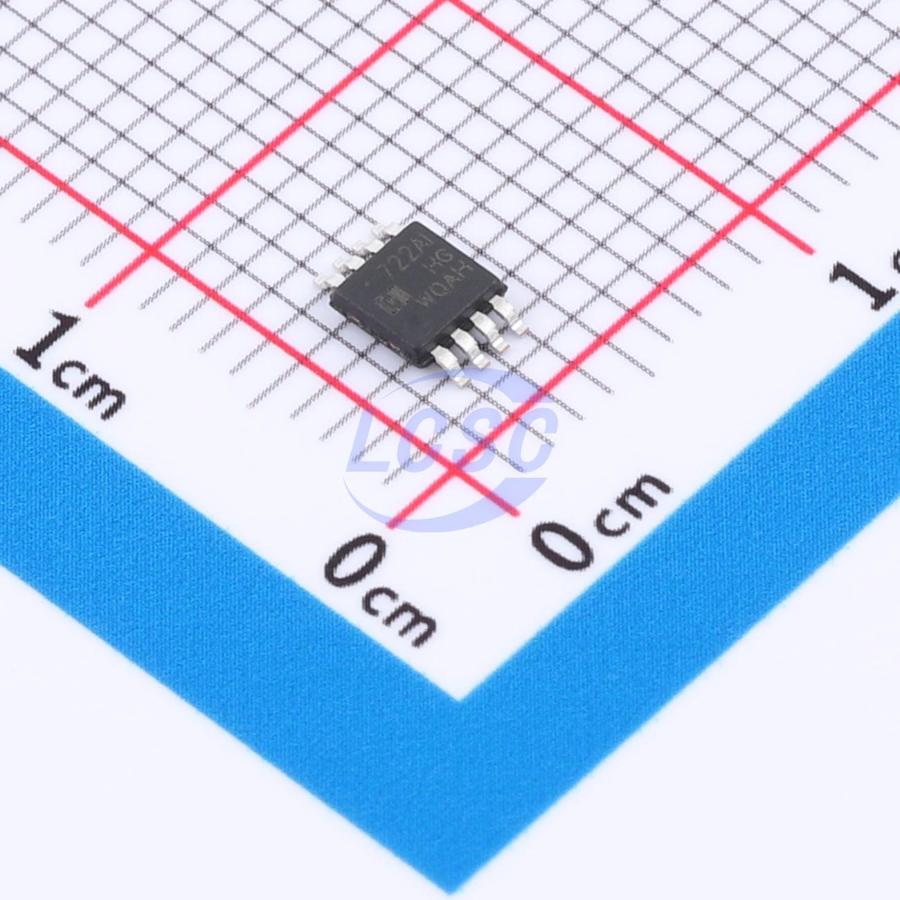

LMV722AIMM/TR

140mA 2 200uV 8.5V/us 1pA 70dB 400uA 10MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: LMV722AIMM/TR
Store part #: C49384180
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,755 in stock

#C49384180

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.58	₹107.90
50+	₹17.20	₹860.00
150+	₹15.32	₹2,298.00
500+	₹12.98	₹6,490.00
3,000+	₹11.93	₹35,790.00
6,000+	₹11.31	₹67,860.00

Quantity (min 5, multiples of 5)

5 × ₹21.58

₹107.90

excl. GST

₹127.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV722AIMM/TR

₹107.90 for 5 + GST

Specifications

Output Current: 140mA
Number of Channels: 2
Vos - Input Offset Voltage: 200uV
Slew Rate: 8.5V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.6uV/℃
Quiescent Current: 400uA
Gain Bandwidth Product: 10MHz
Features: Built-in compensation
Input Voltage Noise Density: 9.5nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.12 g

Overview

This series offers low-voltage operation with rail-to-rail input and output, excellent speed-power ratio, outstanding bandwidth (10MHz), and slew rate (8.5V/μs). The op-amps are unity-gain stable with ultra-low input bias current. Offset voltage is low, guaranteed not to exceed 0.5mV at 25°C, Vs=5V, VCM=Vs/2. These op-amps operate from a single supply of 2.1V to 5.5V or dual supplies of ±1.05V to ±2.75V. The devices are ideal for sensor interfaces, active filters, and portable applications.

Applications

Sensors
Active filters
Test equipment
Driving A/D converters
Photodiode amplification

Key features

High gain bandwidth: 10MHz
Excellent slew rate: 8.5V/μs
Rail-to-rail input and output
Low offset voltage: ±0.5mV max
Input voltage range: -0.2V to +5.7V (at Vs=5.5V)
Supply voltage range: +2.1V to +5.5V
Operating temperature range: -40°C to +125°C
Compact packages: SOT-23-5, DIP-8, SOP-8, SOP-14, TSSOP-14, MSOP-8, DFN-8 2×2
