HGSEMIDatasheet (PDF)

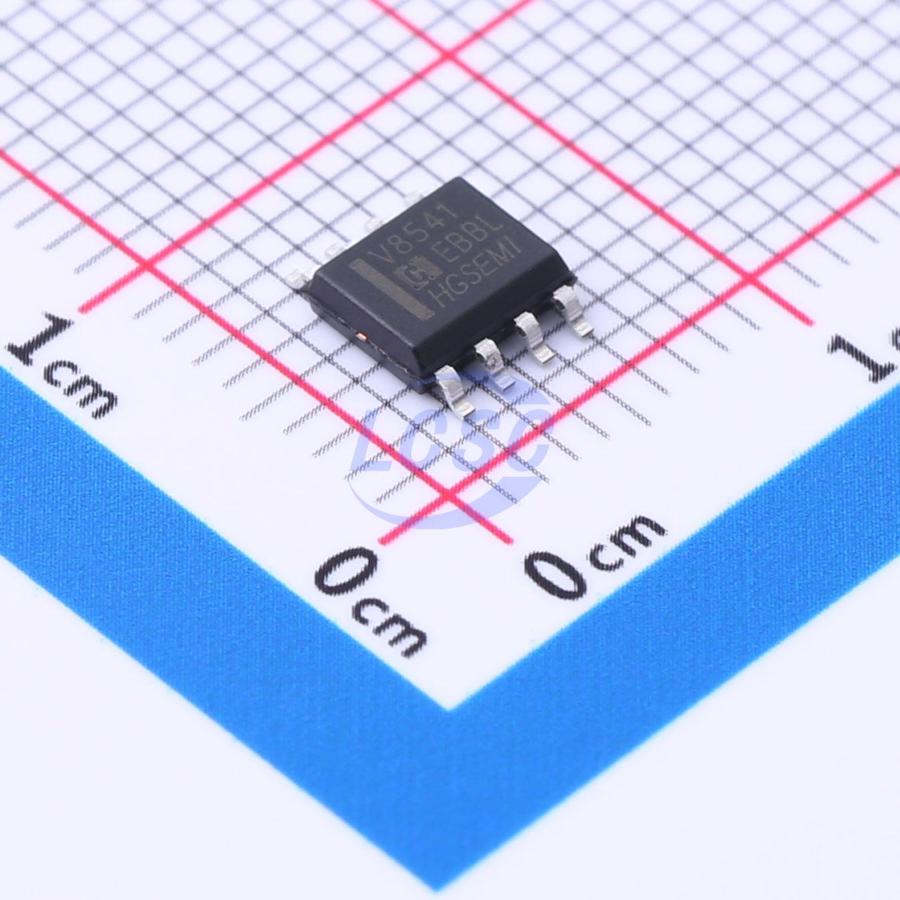

HGV8541M/TR
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8
SOP-8RoHSActive
General-purpose CMOS rail-to-rail amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGV8541M/TR
- Store part #
- C5116323
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C5116323
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.72 | ₹73.60 |
| 50+ | ₹12.93 | ₹646.50 |
| 150+ | ₹12.16 | ₹1,824.00 |
| 500+ | ₹11.19 | ₹5,595.00 |
| 2,500+ | ₹10.25 | ₹25,625.00 |
| 5,000+ | ₹9.99 | ₹49,950.00 |
5 × ₹14.72
₹73.60
excl. GST
₹86.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HGV8541M/TR
₹73.60 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 920V/ms
- Input Offset Current(Ios)
- 0.1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 100pA
- Common Mode Rejection Ratio(CMRR)
- 45dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 980kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 42nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
