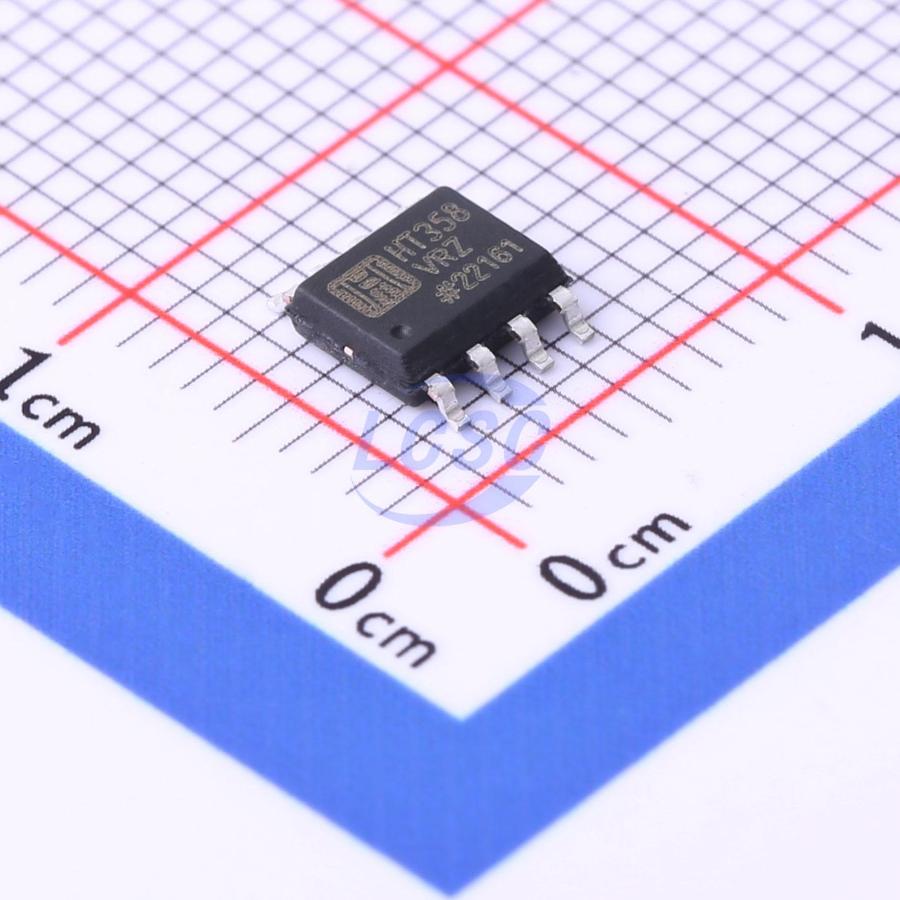

HT358VRZ

48mA 2 100uV 350V/ms 10nA 85dB 145uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Low cost, low power, input/output rail-to-rail operational amplifiers

Manufacturer: HTCSEMI
Manufacturer part #: HT358VRZ
Store part #: C2834457
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,340 in stock

#C2834457

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.36	₹91.80
50+	₹14.71	₹735.50
150+	₹12.90	₹1,935.00
500+	₹11.52	₹5,760.00
2,500+	₹9.49	₹23,725.00
5,000+	₹8.93	₹44,650.00

Quantity (min 5, multiples of 5)

5 × ₹18.36

₹91.80

excl. GST

₹108.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HT358VRZ

₹91.80 for 5 + GST

Specifications

Output Current: 48mA
Number of Channels: 2
Vos - Input Offset Voltage: 100uV
Slew Rate: 350V/ms
Input Offset Current(Ios): 1nA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10nA
Common Mode Rejection Ratio(CMRR): 85dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 145uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 40nV/√Hz@100kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~6V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.234 g

Overview

The HT321V/358/324 family (single, dual, and quad) answers the need for low cost, general-purpose operational amplifiers. They operate with voltages as low as 2.7 V and feature both input and output rail-to-rail, 145 μA consumption current, and 1 MHz gain bandwidth product (GBP). With such a low consumption and a sufficient GBP for many applications, these op amps are well suited for any kind of battery supplied and portable equipment application. The HT321V device is housed in the space-saving 5-pin SOT23-5 package, which simplifies board design. The SOT23-5 has two pinning configurations to answer all application requirements.

Applications

Battery powered electronic equipment
Personal medical care (glucose meters)
Laptops

Key features

Operating range from V_CC = 2.7 to 6 V
Rail-to-rail input and output
Extended V_icm (V_DD - 0.2 V to V_CC + 0.2 V_A)
Low supply current (145 μA)
Gain bandwidth product (1 MHz)
ESD tolerance (2 kV)
