HTCSEMI

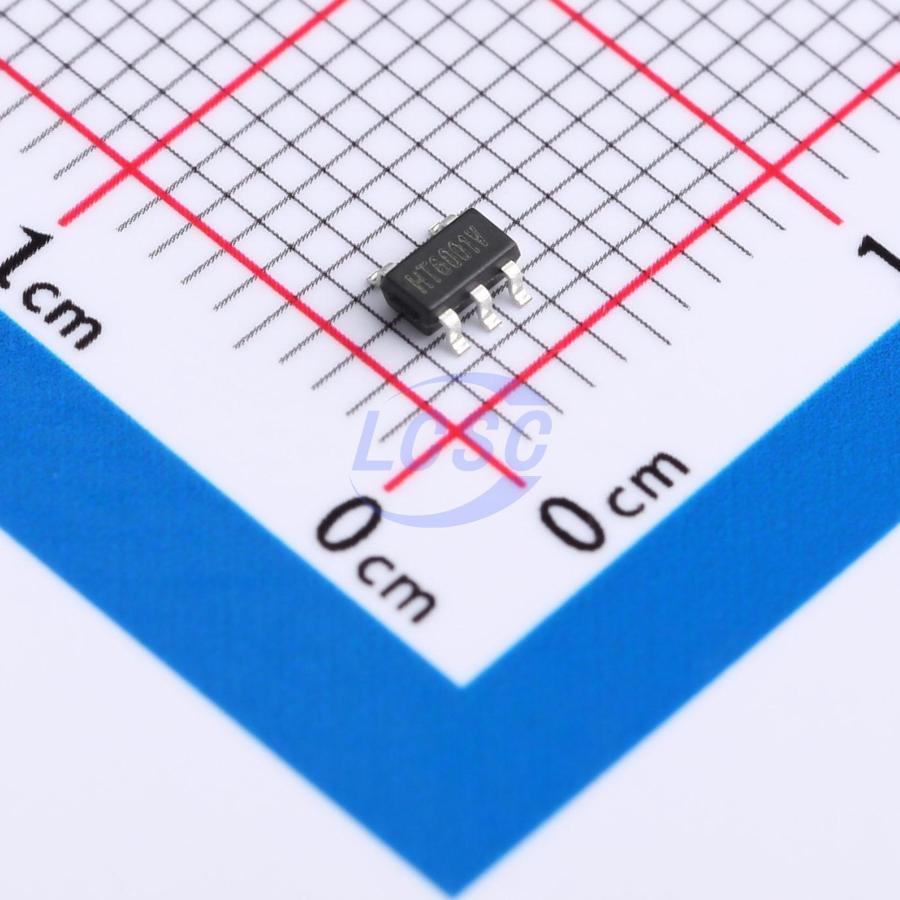

HT6001VRTZ

Standard (General Purpose) Amplifier 1 Circuit SOT-23-5

SOT-23-5RoHSActive

Precision, CMOS, single-supply, rail-to-rail input/output, wideband operational amplifier

Manufacturer: HTCSEMI
Manufacturer part #: HT6001VRTZ
Store part #: C2976637
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,335 in stock

#C2976637

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹23.07	₹115.35
50+	₹18.14	₹907.00
150+	₹16.03	₹2,404.50
500+	₹13.40	₹6,700.00
3,000+	₹11.13	₹33,390.00
6,000+	₹10.43	₹62,580.00

Quantity (min 5, multiples of 5)

5 × ₹23.07

₹115.35

excl. GST

₹136.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HT6001VRTZ

₹115.35 for 5 + GST

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 5.2V/us
Input Offset Current(Ios): 30pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 60pA
Common Mode Rejection Ratio(CMRR): 83dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 1.2mA
Gain Bandwidth Product: 8.2MHz
Features: Built-in compensation
Input Voltage Noise Density: 33nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.437 g

Overview

HT6001, HT6002, and HT6004 are single-channel, dual-channel, and quad-channel, rail-to-rail input and output, single-supply amplifiers featuring ultralow offset voltage and wide signal bandwidth. These amplifiers employ a novel patented trimming technique that achieves excellent performance without laser trimming. All devices operate from a 3 V to 5 V single supply. The combination of low offset, ultralow input bias current, and high-speed characteristics makes these amplifiers suitable for a wide range of applications. Filters, integrators, diode amplifiers, shunt sensors, and high-impedance sensors can all benefit from this combination of features. Wide bandwidth and low distortion characteristics are advantageous for audio and other AC applications. For most cost-sensitive applications, the V grade offers the same AC performance at a lower price point, but with reduced DC accuracy. The rail-to-rail input and output swing capability of these amplifiers allows designers to buffer CMOS ADCs, DACs, ASICs, and other wide-output-swing devices in single-supply systems.
