HTCSEMIDatasheet (PDF)

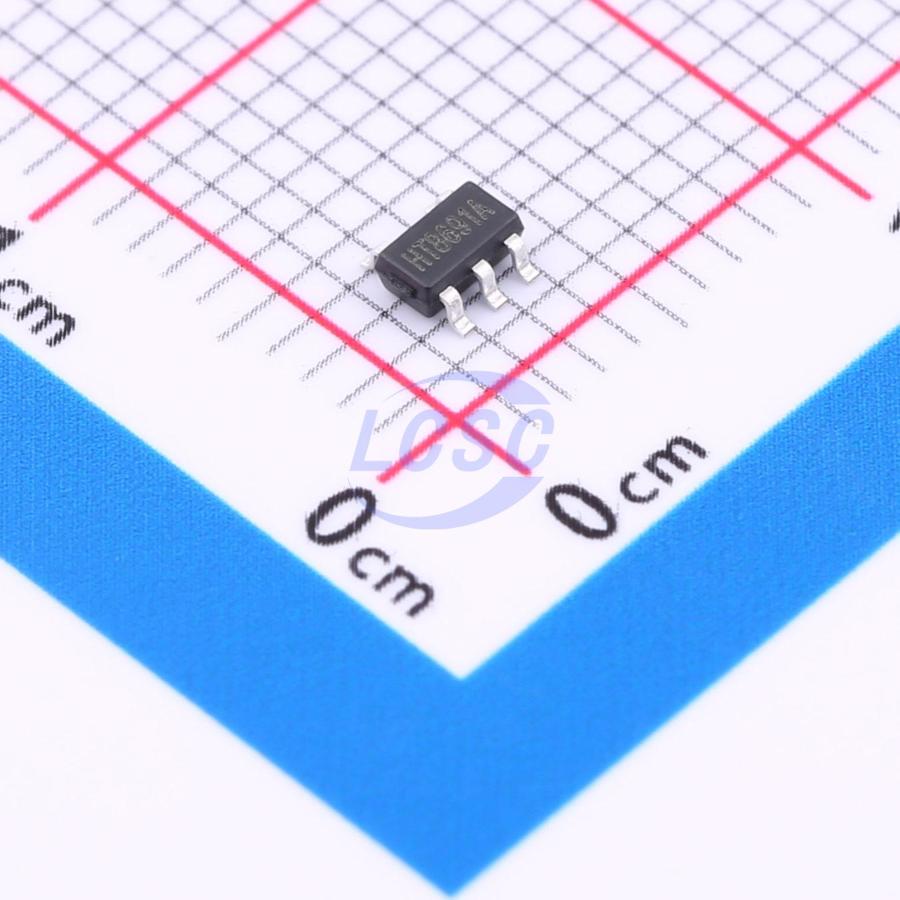

HT8691ARTZ
Standard (General Purpose) Amplifier 1 Circuit SOT-23-6
SOT-23-5RoHSActive
Precision, CMOS, single-supply, rail-to-rail input/output, wideband operational amplifier
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT8691ARTZ
- Store part #
- C2976638
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,575 in stock
#C2976638
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.58 | ₹147.90 |
| 50+ | ₹25.94 | ₹1,297.00 |
| 150+ | ₹24.40 | ₹3,660.00 |
| 500+ | ₹22.45 | ₹11,225.00 |
| 3,000+ | ₹21.58 | ₹64,740.00 |
| 6,000+ | ₹21.06 | ₹1,26,360.00 |
5 × ₹29.58
₹147.90
excl. GST
₹174.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT8691ARTZ
₹147.90 for 5 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 30pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 60pA
- Common Mode Rejection Ratio(CMRR)
- 83dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 600uA
- Gain Bandwidth Product
- 8.4MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 33nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT6001VRTZ#C2976637HTCSEMI · SOT-23-5 | HTCSEMI | SOT-23-5 | 1,335 | ₹23.07 · 1,335 in stock | View |
