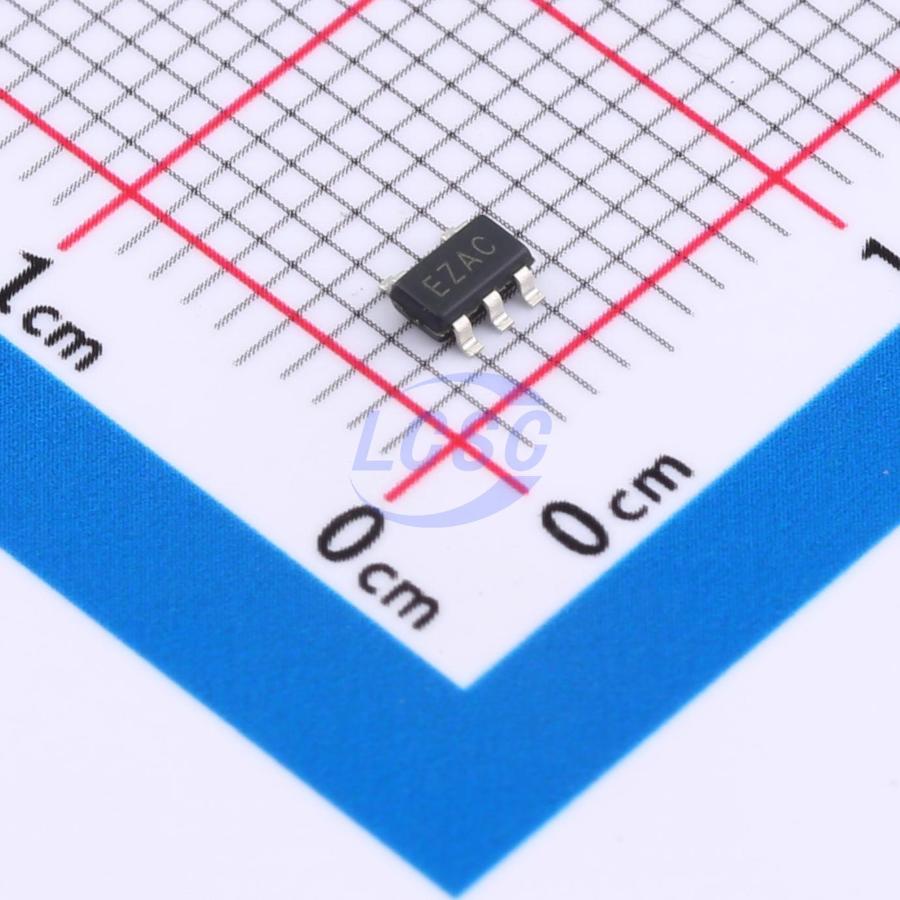

HX6001R-ST

1 500uV 1.2V/us 1pA 1.5MHz 75uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

Micro-Power 1.5MHz, Low-Noise, RRIO, 1.8V CMOS Amplifiers

Manufacturer: ZHHXDZ
Manufacturer part #: HX6001R-ST
Store part #: C47345563
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,960 in stock

#C47345563

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.27	₹91.35
50+	₹16.03	₹801.50
150+	₹15.07	₹2,260.50
500+	₹13.87	₹6,935.00
3,000+	₹13.34	₹40,020.00
6,000+	₹13.02	₹78,120.00

Quantity (min 5, multiples of 5)

5 × ₹18.27

₹91.35

excl. GST

₹107.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX6001R-ST

₹91.35 for 5 + GST

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 1.2V/us
Input Offset Current(Ios): 500pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 1uV/℃
Gain Bandwidth Product: 1.5MHz
Quiescent Current: 75uA
Features: EMI filtering/RF suppression;Reverse-phase input protection
Input Voltage Noise Density: 25nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 2V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The HX6001R-ST/HX6001-ST/HX6002-S/HX6004-S series op-amps, available in single, dual, and quad channel options, are designed for cost-sensitive systems and applications. These amplifiers feature rail-to-rail input and output swing, low quiescent current (typical 75 μA), wide bandwidth (1.5 MHz), and ultra-low noise (25 nV/√Hz at 1 kHz), making them ideal for battery-powered applications requiring a balance between cost and performance. The low input bias current allows these amplifiers to be used with high-impedance sources. The series is designed to be robust and easy to use for circuit designers — maintaining unity-gain stability with capacitive loads up to 500 pF, integrating RF/EMI rejection filters, exhibiting no phase reversal under overdrive conditions, and providing high ESD protection (5-kV HBM). These amplifiers are optimized for a voltage range of +1.8 V (±0.9 V) to +5.5 V (±2.75 V) and a temperature range of 0°C to 70°C. They can also operate over a voltage range of +2.0 V (±1.0 V) to +5.5 V (±2.75 V) and an extended temperature range of -40°C to +125°C. Available in SOT23, SOP-8, and SOP-14 packages.
