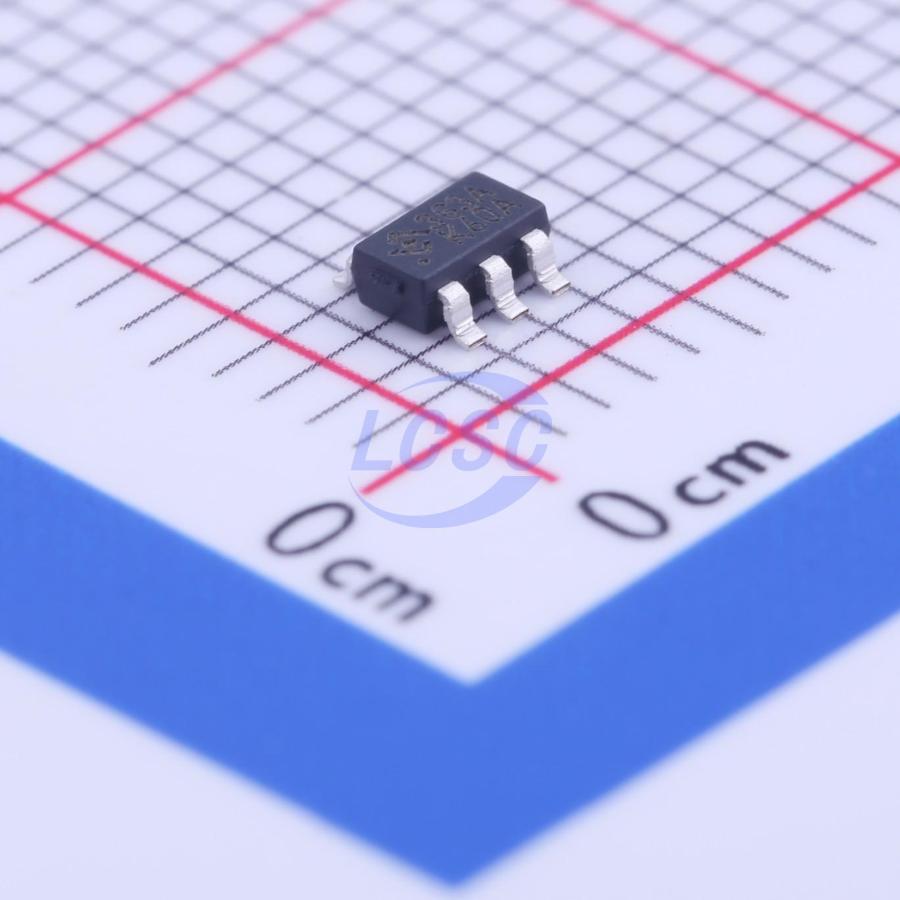

HY2113-GB3A

The series of HY2113 ICs is best created for single-cell lithium-ion/lithium polymer rechargeable battery protection and it also comprises high-accuracy voltage detectors and delay circuits. These ICs are suitable for protecting single-cell rechargeable lithium-ion/lithium polymer battery packs against the problems of overcharge, overdischarge and overcurrent.

Applications

• 1-cell lithium-ion rechargeable battery packs
• 1-cell lithium polymer rechargeable battery packs

Key features

• High-accuracy voltage detection circuit
• Overcharge detection voltage 4.000 to 4.500V Accuracy: ±25mV
• Overcharge release voltage 3.800 to 4.500V Accuracy: ±50mV
• Overdischarge detection voltage 2.00 to 3.10V Accuracy: ±50mV
• Overdischarge release voltage 2.00 to 3.40V Accuracy: ±50mV
• Discharge overcurrent detection voltage 25 to 250mV Accuracy: ±15mV
• Charge overcurrent detection voltage (by option)
• Short-circuiting detection voltage 0.85V(fixed) Accuracy: ±0.3V
• Delay times are generated by an internal circuit (external capacitors are unnecessary).
• Power-down function “Yes” / “No” are selectable (See Model List).
• Auto overdischarge recovery function “Yes” / “No” are selectable (See Model List).
• Low current consumption (Products with Power-down Function)
• Operation mode 3.0μA typ., 6.0μA max. (VDD = 3.9V)
• Ultra low power-down current at 0.1μA max. (VDD = 2.0V)
• High-withstanding-voltage device is used for charger connection pi (CS pin and OC pin: Absolute maximum rating = 20V)
• 0 V battery charge function “available” / “unavailable” are selectable (See Model List).
• Wide operation temperature range -40°C to +85°C
• Small package DFN-1.8*2.0 -6L & SOT-23-6
• The HY2113 series are Halogen-free, green package
