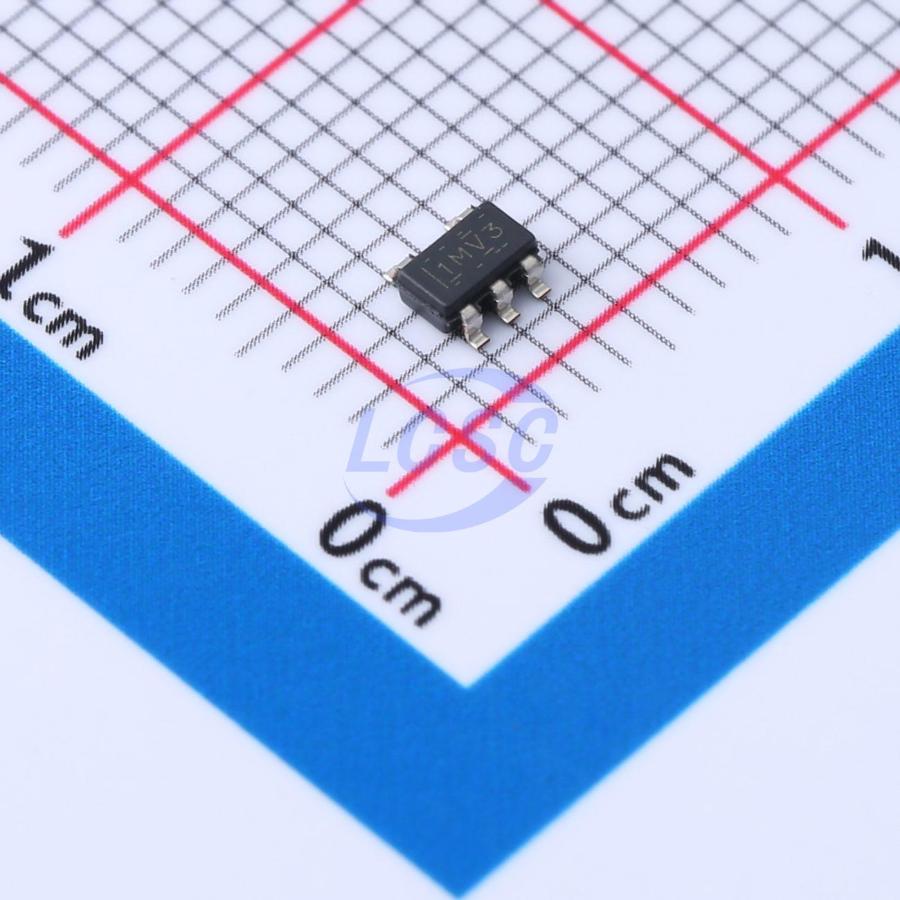

INA180B1QDBVRQ1

8mA 1 -200mV~26V 25uV 2V/us 100dB 100nA 197uA 20V/V SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

Automotive low-side and high-side voltage output current sense amplifiers

Manufacturer: TI
Manufacturer part #: INA180B1QDBVRQ1
Store part #: C2868011
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,960 in stock

#C2868011

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹74.23	₹74.23
10+	₹63.60	₹636.00
30+	₹56.00	₹1,680.00
100+	₹49.92	₹4,992.00
500+	₹47.97	₹23,985.00
1,000+	₹46.89	₹46,890.00

Quantity (min 1)

1 × ₹74.23

₹74.23

excl. GST

₹87.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA180B1QDBVRQ1

₹74.23 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 8mA
Number of Channels: 1
Vcm - Common Mode Voltage: -200mV~26V
Vos - Input Offset Voltage: 25uV
Slew Rate: 2V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 100nA
Input Offset Voltage Drift(Vos TC): 1uV/℃
-3dB Bandwidth: 350kHz
Quiescent Current: 197uA
Gain: 20V/V
Features: High-side detection;Low-side detection;Analog output interface
Differential Voltage: ±28V
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.065 g

Overview

INA180-Q1, INA2180-Q1, and INA4180-Q1 (INAx180-Q1) are automotive-grade 26V common-mode current sense amplifiers suitable for both low-side and high-side configurations. These purpose-built current sense amplifiers accurately measure the voltage developed across a current sense resistor at common-mode voltages well beyond the supply voltage powering the device. Current can be measured on input voltage rails up to 26V, while the device can be powered from supply voltages as low as 2.7V.

Applications

Motor control
Battery monitoring
Power management
Lighting control overcurrent detection

Key features

AEC-Q100 qualified for automotive applications
Temperature Grade 1: -40°C ≤ TA ≤ +125°C
HBM ESD Classification Level 2
CDM ESD Classification Level C6
Functional Safety documentation available to aid functional safety system design
Common-mode range (VCM): -0.2V to +26V
High bandwidth: 350kHz (A1 device)
Offset voltage:
±150μV (maximum) at VCM = 0V
±500μV (maximum) at VCM = 12V
Output slew rate: 2V/μs
Accuracy:
±1% gain error (maximum)
1μV/°C temperature drift (maximum)
Gain options:
20V/V (A1 device)
50V/V (A2 device)
100V/V (A3 device)
200V/V (A4 device)
Quiescent current: 260μA (maximum) (INA180-Q1)
