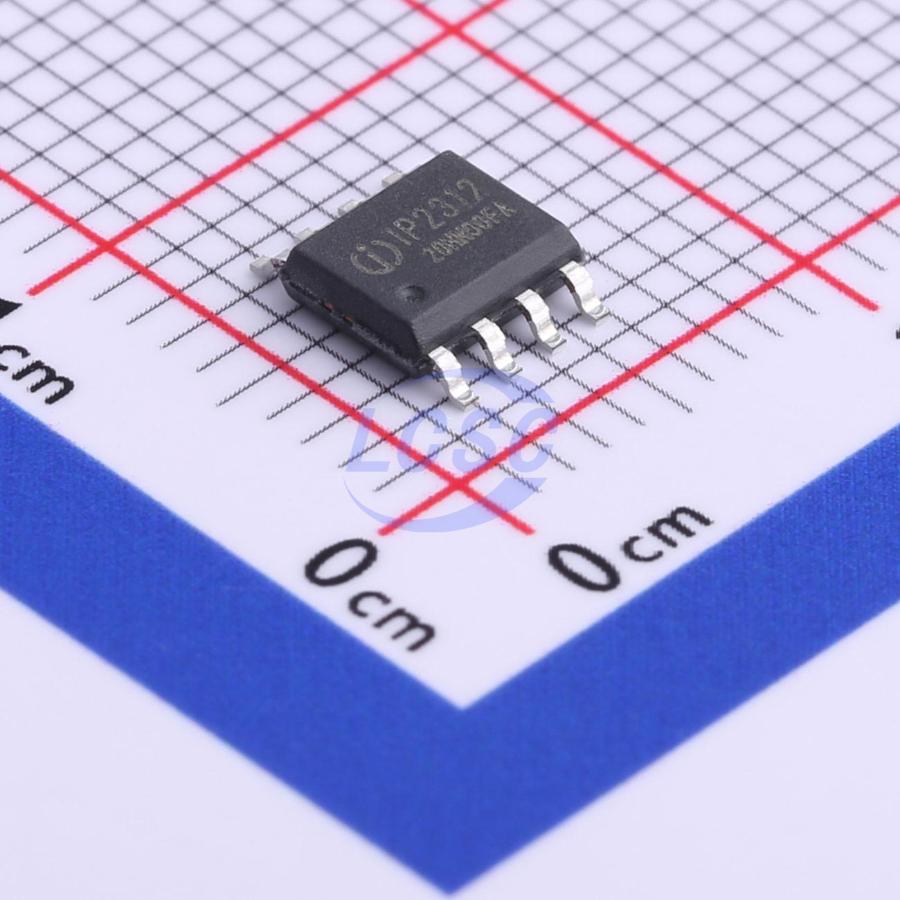

IP2312-4V35
Battery Charging IC Lithium Battery ESOP-8
Single-cell lithium battery synchronous switching step-down charging IC
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP2312-4V35
- Store part #
- C605433
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,945 in stock
#C605433
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.37 | ₹216.85 |
| 50+ | ₹34.77 | ₹1,738.50 |
| 150+ | ₹31.09 | ₹4,663.50 |
| 500+ | ₹26.50 | ₹13,250.00 |
| 2,500+ | ₹22.46 | ₹56,150.00 |
| 4,000+ | ₹21.23 | ₹84,920.00 |
5 × ₹43.37
₹216.85
excl. GST
₹255.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IP2312-4V35
₹216.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Quiescent Current
- 40uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 3A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
IP2312 is a 5V input, single-cell lithium battery synchronous buck charging management IC. With integrated power MOSFETs and a synchronous switching architecture, it requires minimal external components in application, effectively reducing overall solution size and BOM cost. The buck switching charge converter operates at 750KHz with a maximum charging current of 3A; conversion efficiency reaches 94% at 5V input, 3.7V/2A. Charging current can be set via an external resistor. With a 5V input, the IC intelligently adjusts charging current to prevent adapter overload. Packaged in ESP08.
Applications
- Single-cell lithium/lithium-ion battery charging
Key features
- Synchronous step-down switching charger
- 94% charging efficiency (3.7V/2A)
- 3A maximum charging current
- Externally adjustable charging current via resistor
- Automatic input current regulation, compatible with low-current adapters
- Supports 4.20V/4.30V/4.35V/4.4V batteries
- NTC temperature protection during charging
- LED charge status indication
- Integrated power MOSFET
- 750KHz switching frequency, supports 1uH inductor
- Input OVP and UVLO protection
- IC over-temperature protection
- Charge timeout protection
- ESD 4KV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IP2312U_VSET#C605432INJOINIC · SOP-8-EP | INJOINIC | SOP-8-EP | 16,140 | ₹43.05 · 16,140 in stock | View |
 | IP2364#C20416207INJOINIC · ESOP-8 | INJOINIC | ESOP-8 | 892 | ₹57.87 · 892 in stock | View |
