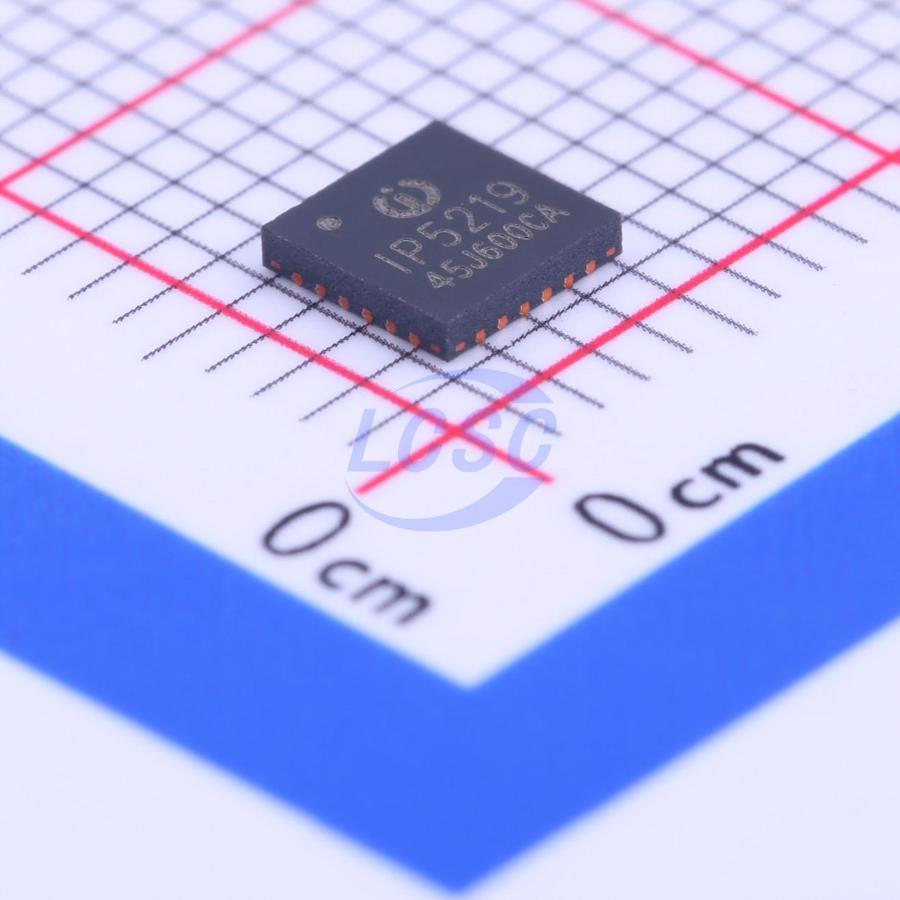

IP5219

IP5219 is a multifunctional power management SOC integrating a boost converter, lithium battery charge management, battery fuel gauge, and TYPE-C protocol, providing a complete power solution for power banks. The high integration and rich feature set of the IP5219 require minimal external components in application, effectively reducing overall solution size and BOM cost. The IP5219 requires only a single inductor to implement both buck and boost functions, supporting low-cost inductors and capacitors. The IP5219's synchronous boost system delivers output current up to 2.4A with conversion efficiency up to 93%. Under no-load conditions, it automatically enters sleep mode, reducing quiescent current to 100μA. The IP5219 employs switching charging technology with a maximum charging current of 2.1A and charging efficiency up to 92%. The built-in IC temperature and input voltage monitoring intelligently regulate the charging current. The IP5219 supports a custom I2C interface for reading chip information (custom model IP5219_I2C), supports customizable battery capacity curves, and accurately displays battery level. It supports 1/2/3/4 LED battery level indication and lighting functions. The IP5219 is available in a QFN24 package.

Applications

• Power banks, portable chargers, mobile phones, smartphones, handheld devices, portable media players, tablets

Key features

• 2.1A synchronous switching charger and 5V 2.4A boost converter
• Boost converter efficiency up to 93%
• Switching charger efficiency up to 92%
• Integrated power path management for simultaneous battery and handset charging
• Adaptive charging current control with excellent adapter compatibility
• 2.1A charging
• Supports 4.20/4.35/4.40V batteries
• Battery temperature NTC comparison support
• Integrated LED controller supporting 4/3/2/1 LEDs as SOC indicators
• Configurable battery level curve for more uniform indicator display
• Automatic handset plug/unplug detection
• Integrated TYPE-C DRP protocol with single-port input and output support
• Load high-current line compensation
• Intelligent load detector with automatic standby mode switching
• Standby current <100μA
• Integrated power FET, single inductor for charging/boost
• Output overcurrent, overvoltage, and short-circuit protection; input overvoltage, overcurrent, battery overcharge, over-discharge, and overcurrent protection
• Thermal shutdown and battery temperature NTC protection
• ESD 4KV
• I2C interface for flexible, low-cost customized solutions
