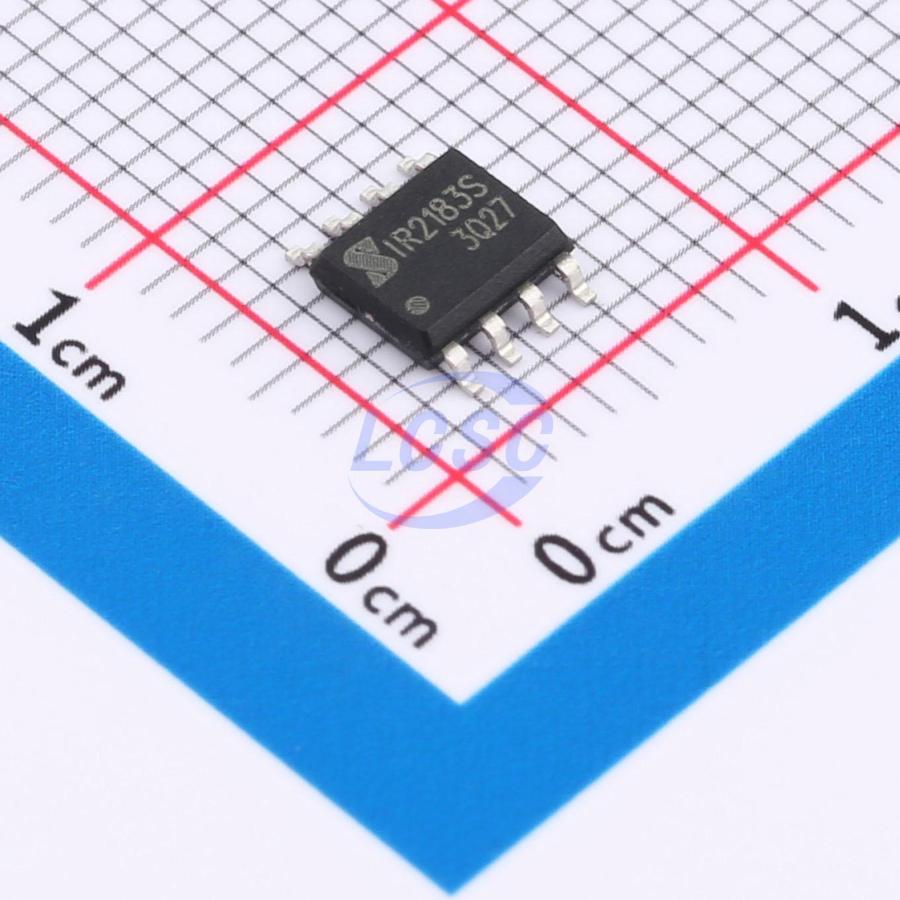

IR2183STRPBF-JSM
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
700V integrated bootstrap high-current high-side and low-side driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IR2183STRPBF-JSM
- Store part #
- C17701720
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,017 in stock
#C17701720
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.04 | ₹150.04 |
| 10+ | ₹122.84 | ₹1,228.40 |
| 30+ | ₹107.94 | ₹3,238.20 |
| 100+ | ₹91.12 | ₹9,112.00 |
| 500+ | ₹90.47 | ₹45,235.00 |
| 1,000+ | ₹87.00 | ₹87,000.00 |
1 × ₹150.04
₹150.04
excl. GST
₹177.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IR2183STRPBF-JSM
₹150.04 for 1 + GST
Specifications
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
The IR2183S is a high-voltage, high-speed power MOSFET/IGBT high- and low-side driver IC featuring two non-independent propagation channels. It integrates high- and low-side UVLO, overvoltage clamp, and shoot-through lockout protection circuits, with high-current pulse output capability. Logic inputs are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output current capability is up to 4A, and the floating channel supports a maximum operating voltage of 700V. It can be used to drive N-channel high-voltage power MOSFETs/IGBTs and similar devices. The IR2183S is available in an SOP-8 package and operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Driver
Key features
- Floating channel for bootstrap operation
- Maximum operating voltage up to 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance down to -9V
- Gate drive voltage: 10V to 20V
- High- and low-side UVLO
- UVLO positive threshold 8.9V
- UVLO negative threshold 8.2V
- Cross-conduction prevention dead-time logic
- Built-in 400ns dead time
- On/off propagation delay
- Ton/Toff = 130ns/130ns
- High- and low-side delay matching
- Drive current capability:
- Source/Sink = 4.0A/4.0A
- RoHS compliant
- SOP-8
