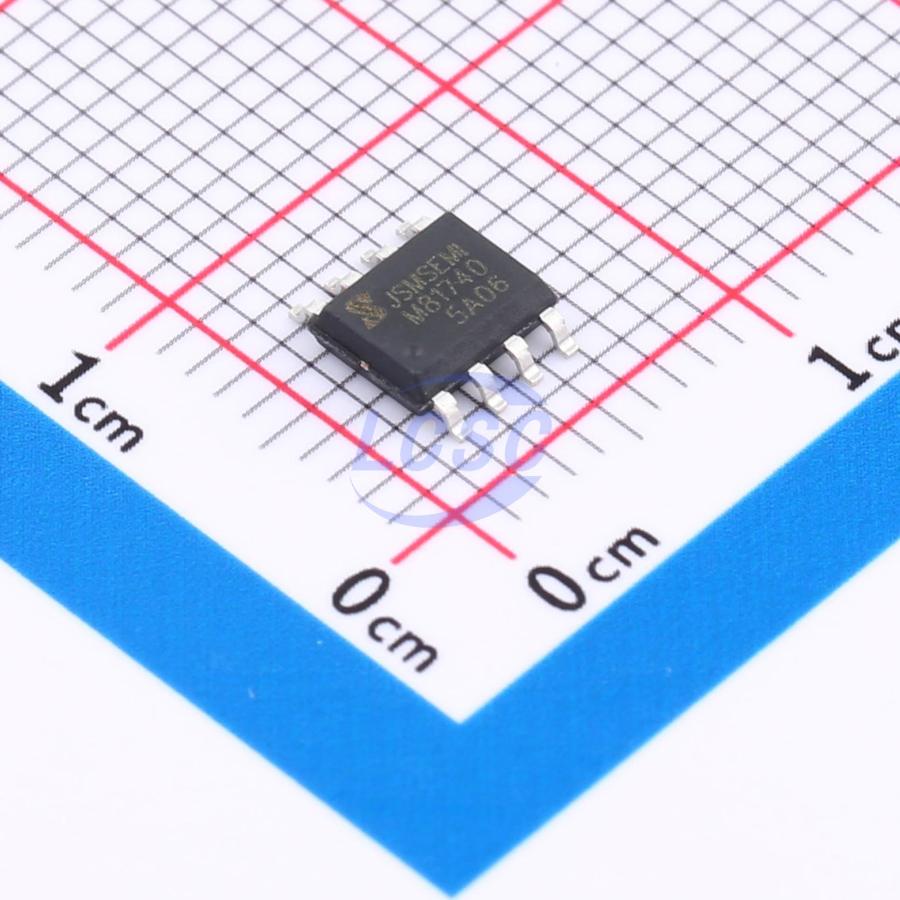

M81740FP-JSM
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
4A 700V integrated bootstrap gate driver chip with SD function
- Manufacturer
- JSMSEMI
- Manufacturer part #
- M81740FP-JSM
- Store part #
- C44606287
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,003 in stock
#C44606287
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.62 | ₹118.62 |
| 10+ | ₹95.16 | ₹951.60 |
| 30+ | ₹83.43 | ₹2,502.90 |
| 100+ | ₹71.92 | ₹7,192.00 |
| 500+ | ₹66.48 | ₹33,240.00 |
| 1,000+ | ₹62.79 | ₹62,790.00 |
1 × ₹118.62
₹118.62
excl. GST
₹139.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
M81740FP-JSM
₹118.62 for 1 + GST
Specifications
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 35ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.104 g
Overview
The M81740FP is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver with a single input signal controlling two output channels simultaneously. It integrates protection circuits including high- and low-side UVLO, overvoltage clamp, and shoot-through lockout. The device features high-current pulse output capability, logic input levels compatible with CMOS or LSTTL logic as low as 3.3V, a maximum output current of 4A, and a floating channel maximum operating voltage of 700V. It is suitable for driving N-channel high-voltage power MOSFETs/IGBTs and similar devices. The M81740FP is available in an SOP-8 package and operates over a temperature range of -40℃ to 125℃.
Applications
- Motor drive and control
- Power tools
- General-purpose inverters
- Power conversion systems
- Servo drives
- Refrigerators/Air conditioners
Key features
- Integrated bootstrap diode
- Maximum operating voltage: 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance: -9V
- Gate drive voltage: 10V to 20V
- High- and low-side UVLO
- UVLO positive-going threshold: 8.9V
- UVLO negative-going threshold: 8.2V
- Cross-conduction prevention dead-time logic
- Built-in 400ns dead time
- Turn-on/turn-off propagation delay
- Ton/Toff = 530ns/130ns
- High- and low-side delay matching
- Drive current capability:
- Source/Sink = 4.0A/4.0A
- RoHS compliant
- SOP-8
