FAN73932MX-JSM

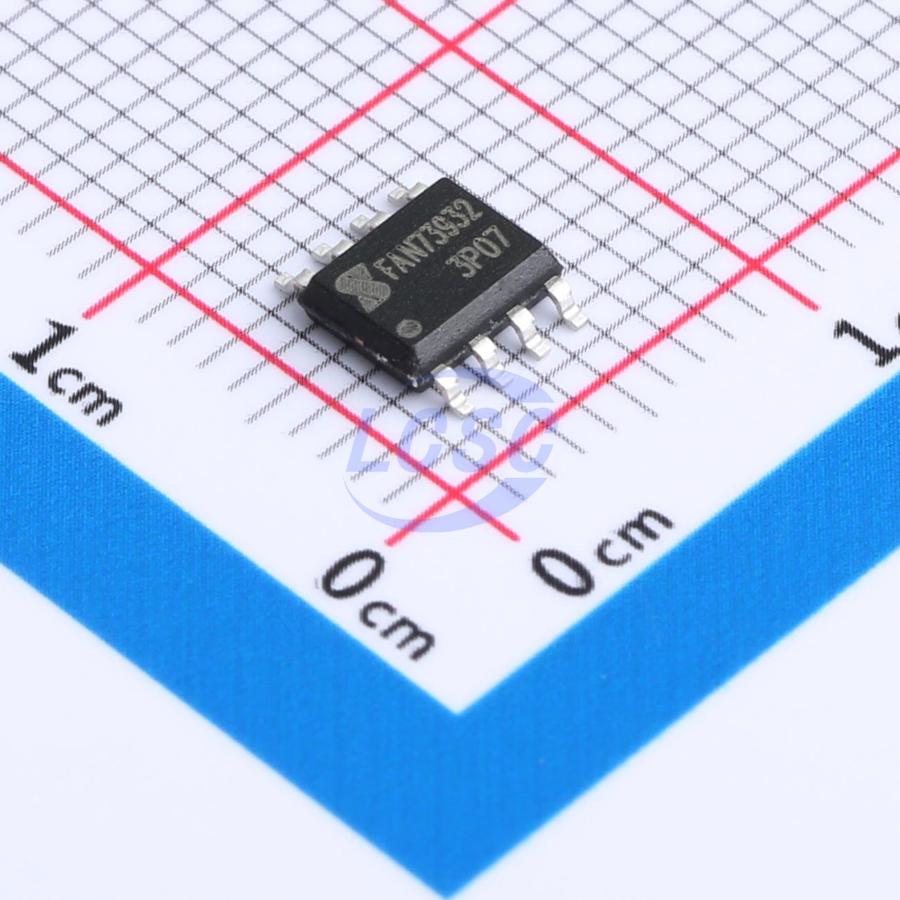

Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
700V high-current, high-side and low-side MOSFET/IGBT driver chips
- Manufacturer
- JSMSEMI
- Manufacturer part #
- FAN73932MX-JSM
- Store part #
- C7466371
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,064 in stock
#C7466371
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.21 | ₹156.21 |
| 10+ | ₹128.13 | ₹1,281.30 |
| 30+ | ₹112.72 | ₹3,381.60 |
| 100+ | ₹95.20 | ₹9,520.00 |
| 500+ | ₹93.72 | ₹46,860.00 |
| 1,000+ | ₹90.35 | ₹90,350.00 |
1 × ₹156.21
₹156.21
excl. GST
₹184.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FAN73932MX-JSM
₹156.21 for 1 + GST
Specifications
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The FAN73932 is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver with a single input signal controlling both output channels simultaneously. It integrates protection circuits including high- and low-side UVLO, overvoltage clamp, and shoot-through prevention lockout. The device features high-current pulse output capability, logic input compatibility down to 3.3V CMOS or LSTTL logic levels, a maximum output current of 4A, and a floating channel maximum operating voltage of 700V. It is suitable for driving N-channel high-voltage power MOSFETs/IGBTs and similar devices. The FAN73932 is available in an SOP-8 package and operates over a temperature range of -40°C to 125°C.
Key features
- Bootstrap-operated floating channel
- Maximum operating voltage up to 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance down to -9V
- Gate drive voltage: 10V to 20V
- High- and low-side UVLO — UVLO positive-going threshold 8.9V — UVLO negative-going threshold 8.2V
