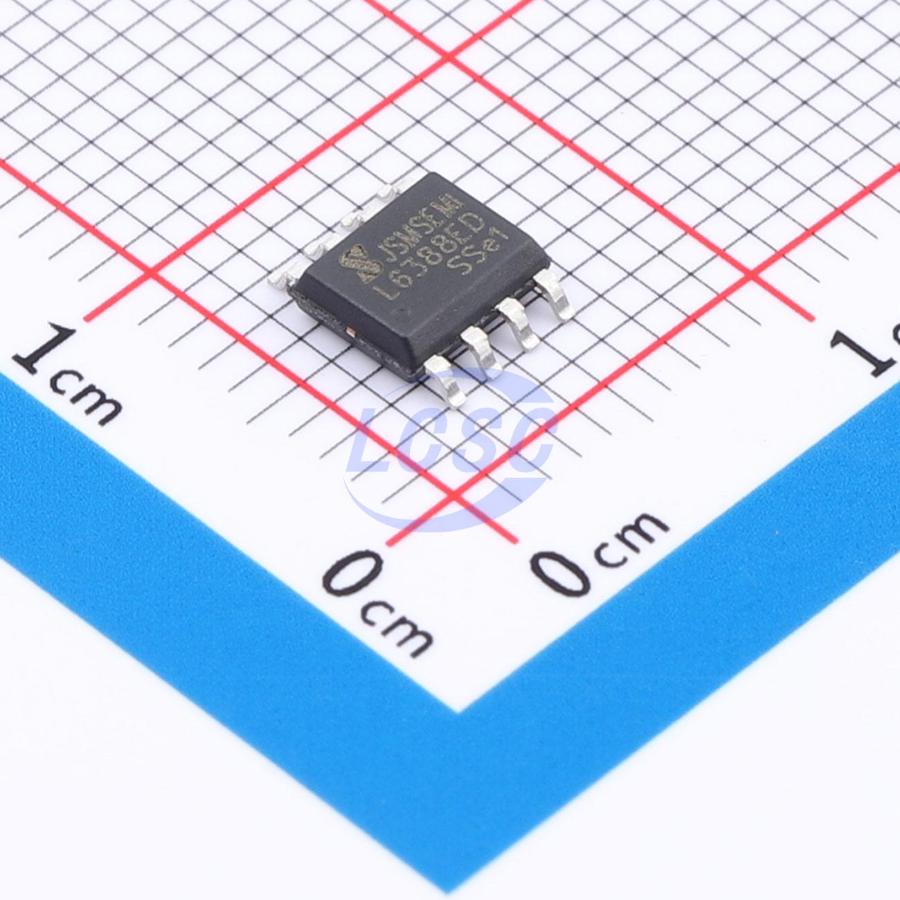

L6388ED013TR-JSM
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
High-voltage high and low side driver with integrated bootstrap diode
- Manufacturer
- JSMSEMI
- Manufacturer part #
- L6388ED013TR-JSM
- Store part #
- C17701712
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,199 in stock
#C17701712
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.47 | ₹52.47 |
| 10+ | ₹41.42 | ₹414.20 |
| 30+ | ₹36.86 | ₹1,105.80 |
| 100+ | ₹31.01 | ₹3,101.00 |
| 500+ | ₹28.40 | ₹14,200.00 |
| 1,000+ | ₹26.67 | ₹26,670.00 |
1 × ₹52.47
₹52.47
excl. GST
₹61.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
L6388ED013TR-JSM
₹52.47 for 1 + GST
Specifications
- Quiescent Current
- 60uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1A
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.209 g
Overview
The LG388ED is a high-voltage, high-speed power MOSFET driver featuring independent high-side and low-side referenced output channels. Its proprietary high-voltage IC and latch-up resistant CMOS technology enable a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The floating channel can be used to drive an N-channel power MOSFET in a high-side configuration with operating voltages up to 600V.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro/Mini Inverter Drive
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +650V
- Compatible with 3.3V, 5V, and 15V input logic
- Resistant to negative transient voltage, immune to dV/dt noise
- Allowable negative Vs capability: -9V
- Under-voltage lockout on both channels
- VCC UVLO threshold: 8.7V/7.7V
- VBS UVLO threshold: 8.2V/7.3V
- Turn-on/turn-off propagation delay
- Turn-on/turn-off time: 250ns/150ns
- Propagation delay matching: <50ns
- Cross-conduction prevention
- Dead time: 130ns
- Typical output source/sink current capability: 0.6A/1A
- Wide operating temperature range: -40℃ to 125℃
- RoHS compliant
