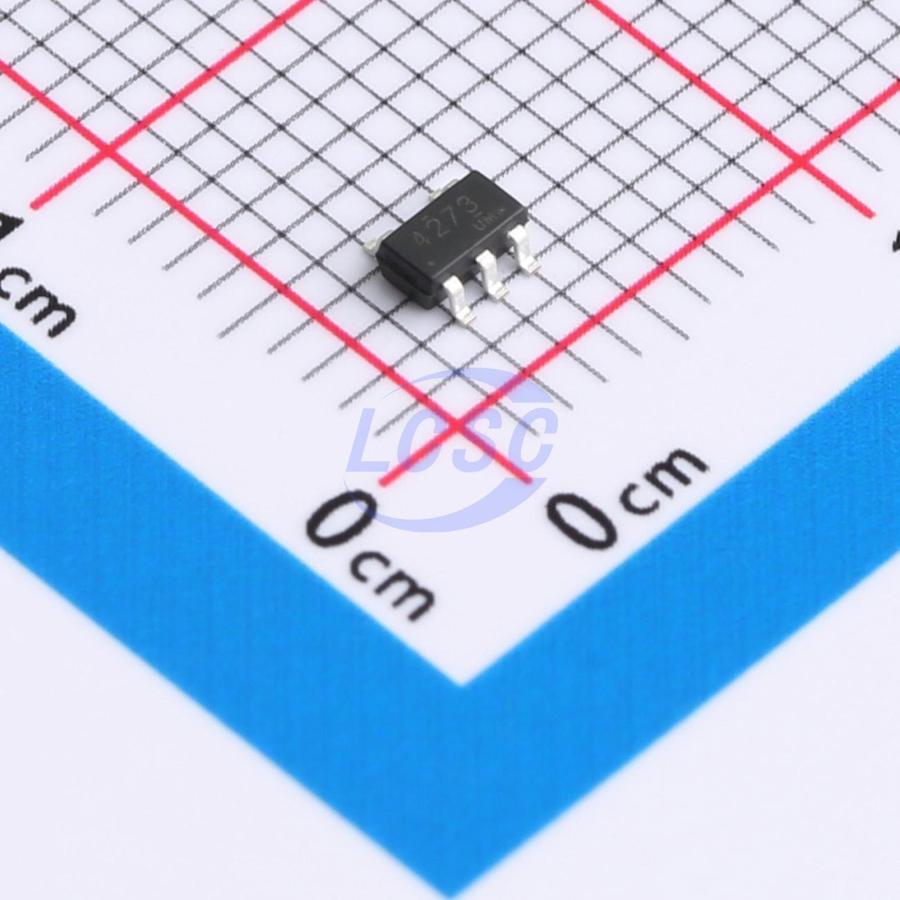

IRS44273LTR(UMW)
5V~25V 2A 2A SOT-23-5 Gate Drivers RoHS
2A Single-Channel, Low-Side, Non-inverting Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- IRS44273LTR(UMW)
- Store part #
- C20623195
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,300 in stock
#C20623195
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.16 | ₹150.80 |
| 50+ | ₹23.55 | ₹1,177.50 |
| 150+ | ₹20.72 | ₹3,108.00 |
| 500+ | ₹17.17 | ₹8,585.00 |
| 3,000+ | ₹15.60 | ₹46,800.00 |
| 6,000+ | ₹14.66 | ₹87,960.00 |
5 × ₹30.16
₹150.80
excl. GST
₹177.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRS44273LTR(UMW)
₹150.80 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 25ns
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The UMW IRS44273LTR is a low-voltage power MOSFET and IGBT non-inverting gate driver. Its proprietary latch-up resistant CMOS technology enables a single-chip integrated architecture with high robustness. The logic input levels are compatible with CMOS or TTL logic output levels as low as 3.3V. The output driver features integrated undervoltage lockout with hysteresis and an output current buffer stage. The UMW IRS44273LTR is designed to operate over a wide VCC range of 5V to 25V and a wide temperature range of -40℃ to 125℃.
Applications
- Switch-mode power supplies
- General-purpose gate driver
- Drives MOSFETs and IGBTs
Key features
- CMOS Schmitt trigger input, non-inverting output
- 3.3V input logic compatible
- 5 to 25V single-supply range
- High capacitive load drive capability
- Operating temperature range -40 to 125℃
