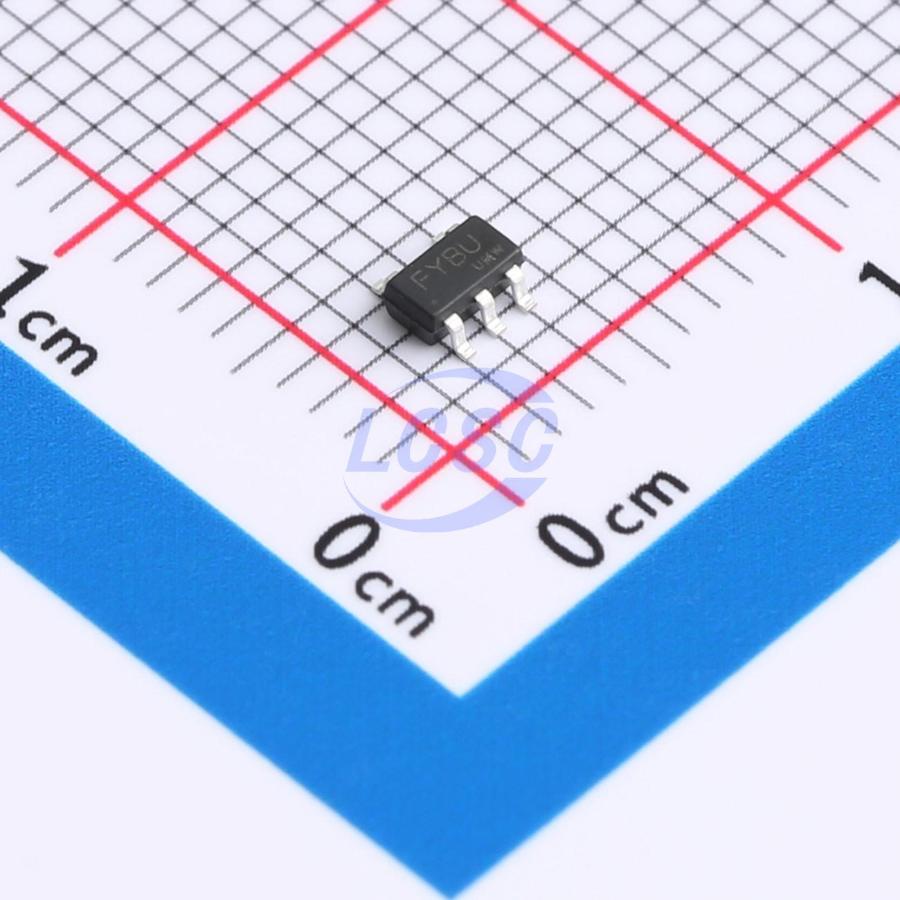

MCP1415T-E/OT(UMW)
4.5V~25V 2A 2A SOT-23-5 Gate Drivers RoHS
2A Single-Channel, Low-Side Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- MCP1415T-E/OT(UMW)
- Store part #
- C20623196
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,735 in stock
#C20623196
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.87 | ₹119.35 |
| 50+ | ₹20.85 | ₹1,042.50 |
| 150+ | ₹19.55 | ₹2,932.50 |
| 500+ | ₹17.94 | ₹8,970.00 |
| 3,000+ | ₹17.23 | ₹51,690.00 |
| 6,000+ | ₹16.80 | ₹1,00,800.00 |
5 × ₹23.87
₹119.35
excl. GST
₹140.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP1415T-E/OT(UMW)
₹119.35 for 5 + GST
Specifications
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 25ns
- Quiescent Current
- 500uA
- Voltage - Supply
- 4.5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Overcurrent Protection;Built-in bootstrap diode;Charge pump boost
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
This device is a low-voltage power MOSFET and IGBT non-inverting gate driver. Built on latch-up resistant CMOS technology, it achieves a single-chip integrated architecture with high robustness. The logic input levels are compatible with CMOS or TTL logic output levels as low as 3.3V. The output driver features an integrated UVLO circuit with hysteresis and an output current buffer stage. The device is designed to operate over a wide supply voltage range of 5V to 25V, with an operating temperature range of -40°C to 125°C.
Applications
- Switch-mode power supplies
- General-purpose gate drive
- Drives MOSFETs and IGBTs
Key features
- Non-inverting/inverting input-output
- Compatible with 3.3V and 5V input logic
- 4.5V to 25V single-supply range
- High capacitive load drive capability
- Operating temperature range -40℃ to 125℃
