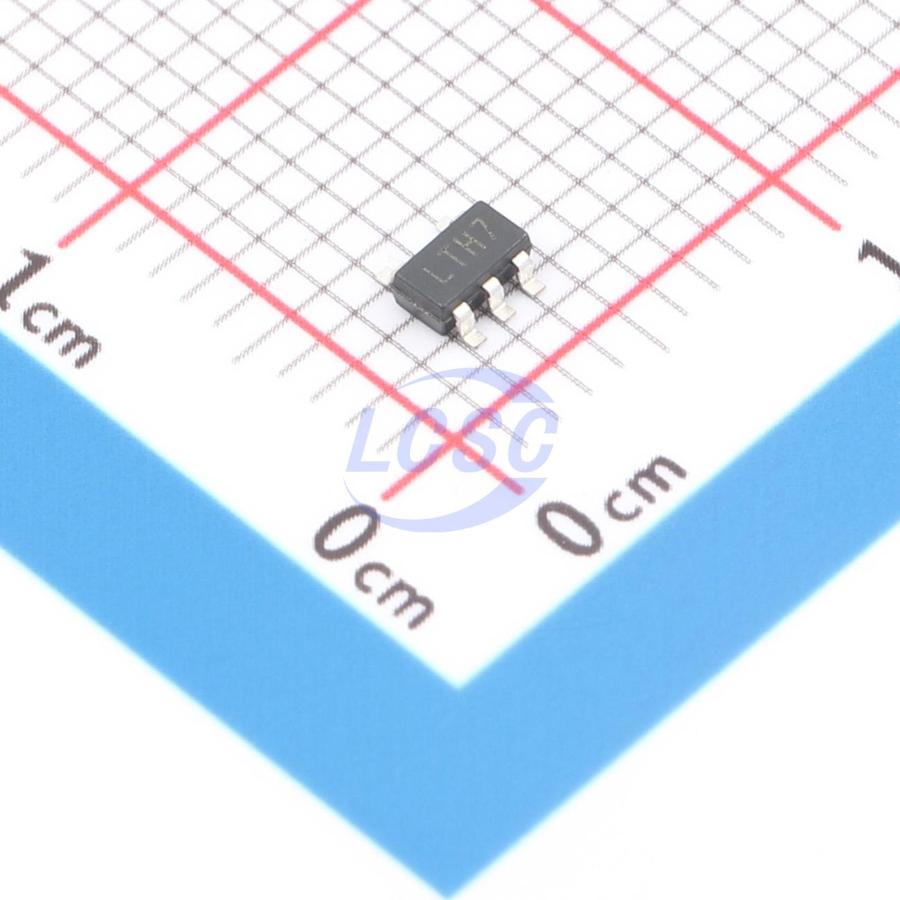

JTD4054
Lithium Battery 500mA SOT-23-5L Battery Management
- Manufacturer
- JTD
- Manufacturer part #
- JTD4054
- Store part #
- C42443472
- Package / case
- SOT-23-5L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C42443472
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.61 | ₹130.50 |
| 500+ | ₹2.04 | ₹1,020.00 |
| 3,000+ | ₹1.72 | ₹5,160.00 |
| 6,000+ | ₹1.52 | ₹9,120.00 |
| 24,000+ | ₹1.36 | ₹32,640.00 |
| 51,000+ | ₹1.27 | ₹64,770.00 |
50 × ₹2.61
₹130.50
excl. GST
₹153.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JTD4054
₹130.50 for 50 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 5nA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 2.195 g
Overview
The 4054 is a constant-current/constant-voltage linear charger designed for single-cell lithium-ion batteries. Its minimal external circuitry makes it ideal for portable devices, compatible with both USB and adapter power sources. An integrated reverse-current protection circuit eliminates the need for an external blocking diode. A thermal feedback mechanism automatically adjusts the charge current to limit die temperature during high-power operation or in high-temperature environments. The full-charge voltage is 4.2V, and the charge current is programmable via an external resistor. When the charge current drops to the termination threshold, the IC automatically terminates charging. Once the input power is removed, the IC enters a low-current standby mode with a standby current as low as 5nA.
Applications
- Charging dock
- Bluetooth headset
- GPS
- Mobile phone
- PDA
- MP3/MP4
- Digital camera
- Mini speaker
Key features
- Maximum charge current: 500mA
- Ultra-low quiescent current: 5nA
- No external MOSFET, sense resistor, or isolation diode required
- Intelligent thermal regulation for maximum charge rate
- Intelligent recharge function
- Pre-charge voltage: 4.2V
- Charge termination current: 75mA
- Trickle charge threshold: 2.9V
- Package: SOT23-5L
- ESD HBM: 2KV
