STDatasheet (PDF)

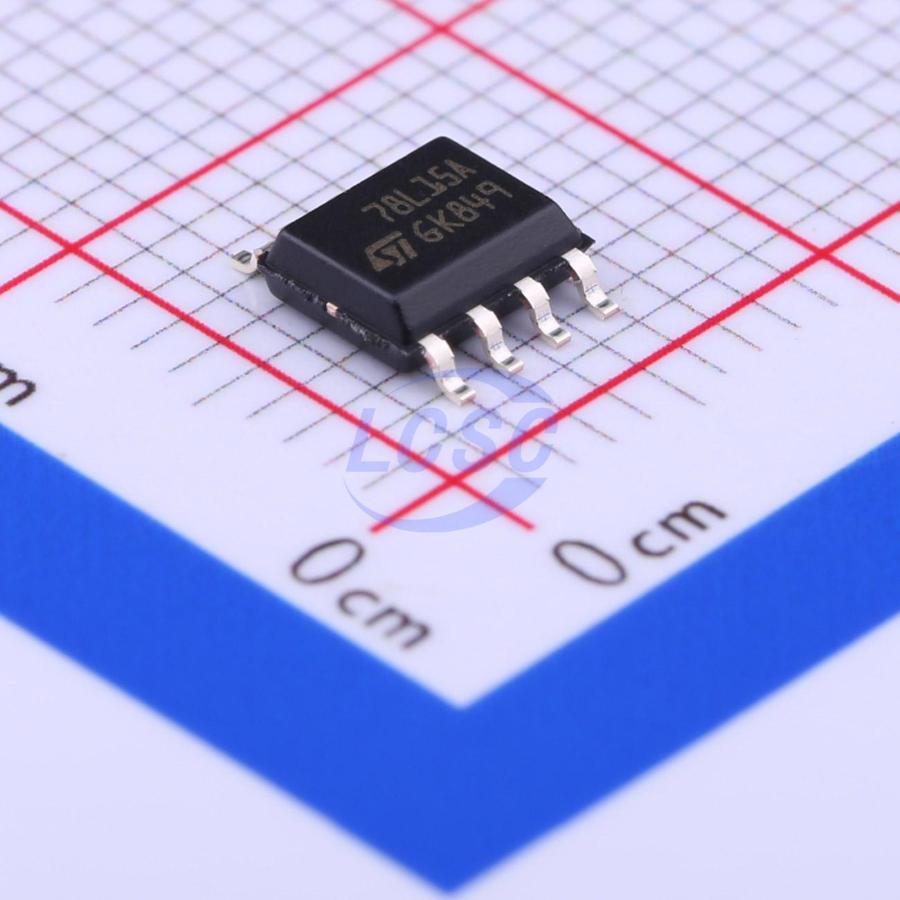

L78L15ACD13TR
15V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L15ACD13TR
- Store part #
- C283281
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,855 in stock
#C283281
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.21 | ₹156.05 |
| 50+ | ₹24.30 | ₹1,215.00 |
| 150+ | ₹21.34 | ₹3,201.00 |
| 500+ | ₹17.40 | ₹8,700.00 |
| 2,500+ | ₹15.76 | ₹39,400.00 |
| 5,000+ | ₹14.76 | ₹73,800.00 |
5 × ₹31.21
₹156.05
excl. GST
₹184.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L15ACD13TR
₹156.05 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 100mA
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.194 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78L15CD-TR#C2971146ST · SOIC-8 | ST | SOIC-8 | 52 | ₹29.56 · 52 in stock | View |
 | MC78L15ABDR2G#C233224onsemi · SOIC-8 | onsemi | SOIC-8 | 2,585 | ₹29.91 · 2,585 in stock | View |
 | UA78L15ACDR#C354524TI · SOIC-8 | TI | SOIC-8 | 63 | ₹63.24 · 63 in stock | View |
 | MC78L15ACDR2G#C233225onsemi · SOIC-8 | onsemi | SOIC-8 | 6,575 | ₹19.28 · 6,575 in stock | View |
 | LM78L15ACMX/NOPB#C2861599TI · SOIC-8 | TI | SOIC-8 | 3,333 | ₹60.62 · 3,333 in stock | View |
