TIDatasheet (PDF)

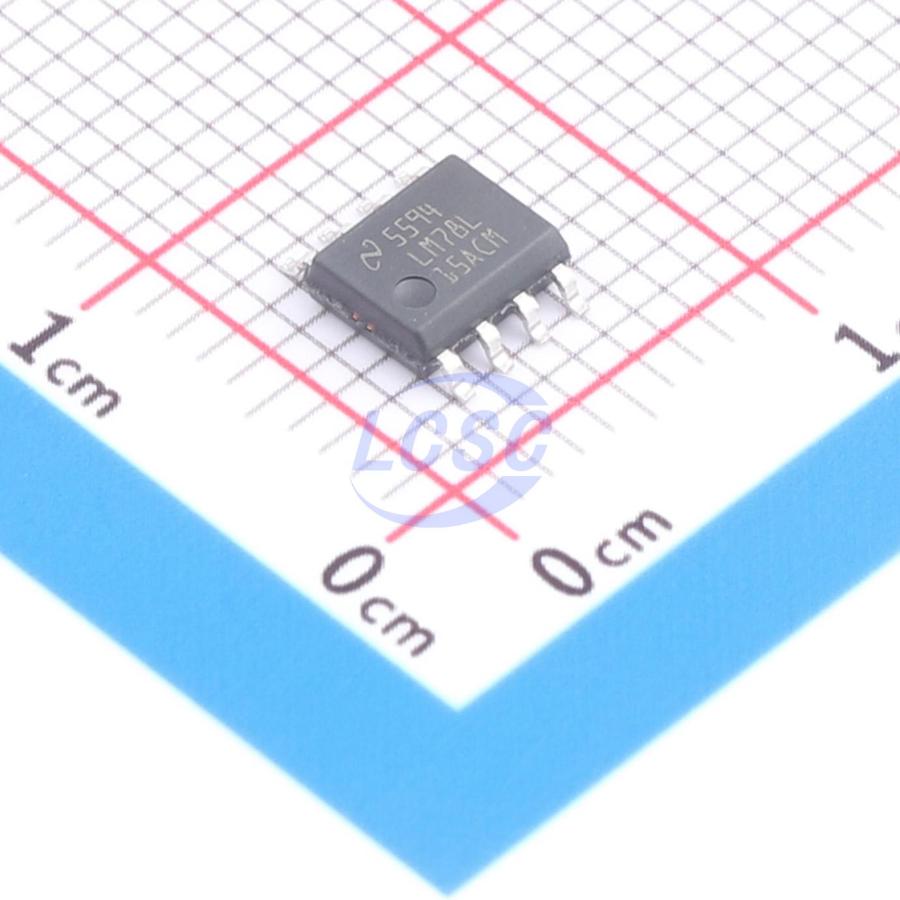

LM78L15ACMX/NOPB
15V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
100mA, 30V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM78L15ACMX/NOPB
- Store part #
- C2861599
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,333 in stock
#C2861599
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.62 | ₹60.62 |
| 10+ | ₹47.59 | ₹475.90 |
| 30+ | ₹41.29 | ₹1,238.70 |
| 100+ | ₹35.64 | ₹3,564.00 |
| 500+ | ₹34.12 | ₹17,060.00 |
| 1,000+ | ₹33.04 | ₹33,040.00 |
1 × ₹60.62
₹60.62
excl. GST
₹71.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM78L15ACMX/NOPB
₹60.62 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.249 g
Overview
- Input voltage up to 30 V - Output voltage tolerances of ±5% over the temperature range - Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V - Output current of 100 mA - Output transistor safe area protection - Internal thermal overload protection - Internal short-circuit current limit - No external components - Available in tiny DSBGA package - Available in 3-pin TO-92 and 8-pin SOIC low profile packages
Applications
- Battery chargers
- Portable instrumentation
- LED lighting
- Appliances
Key features
- Input voltage up to 30 V
- Output voltage tolerances of ±5% over the temperature range
- Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V
- Output current of 100 mA
- Output transistor safe area protection
- Internal thermal overload protection
- Internal short-circuit current limit
- No external components
- Available in tiny DSBGA package
- Available in 3-pin TO-92 and 8-pin SOIC low profile packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UA78L15ACDR#C354524TI · SOIC-8 | TI | SOIC-8 | 63 | ₹63.24 · 63 in stock | View |
 | MC78L15ACDR2G#C233225onsemi · SOIC-8 | onsemi | SOIC-8 | 6,575 | ₹19.28 · 6,575 in stock | View |
 | L78L15ACD13TR#C283281ST · SOIC-8 | ST | SOIC-8 | 1,855 | ₹31.21 · 1,855 in stock | View |
 | L78L15CD-TR#C2971146ST · SOIC-8 | ST | SOIC-8 | 52 | ₹29.56 · 52 in stock | View |
 | TP78L15S8#C51886227TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,985 | ₹13.03 · 2,985 in stock | View |
