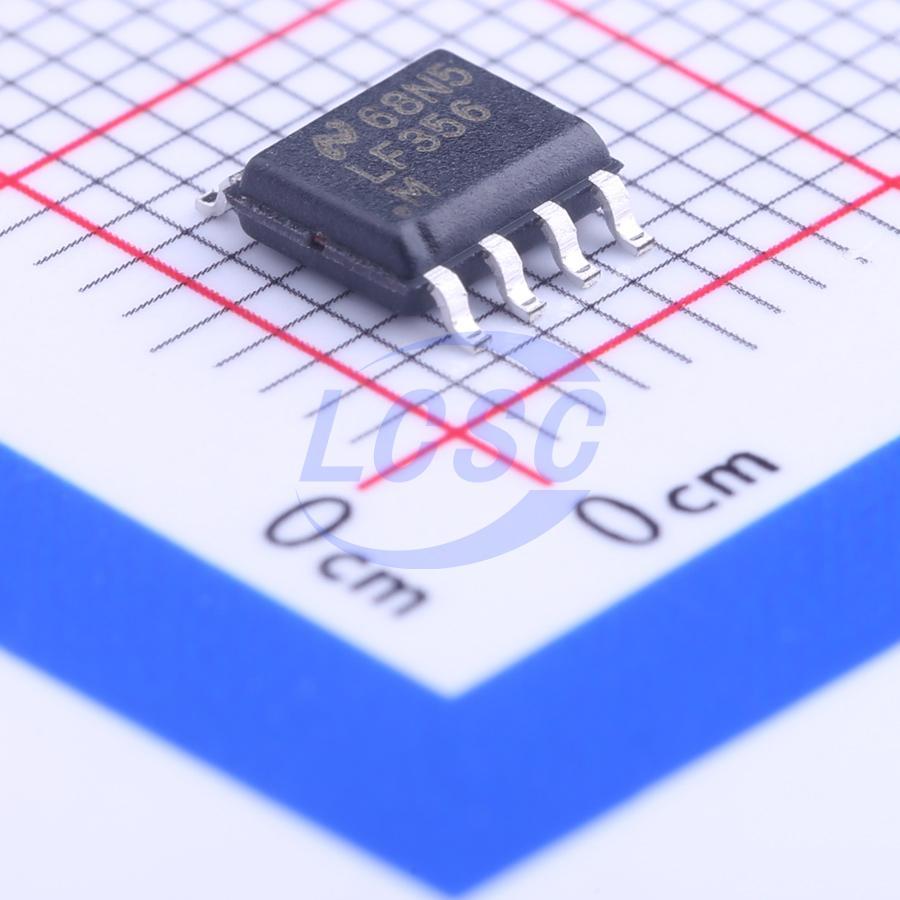

LF356M/NOPB

10mV 7.5V/us 100dB 5pA 2.5MHz 7mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

JFET Input Operational Amplifiers

Manufacturer: TI
Manufacturer part #: LF356M/NOPB
Store part #: C70876
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,081 in stock

#C70876

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹139.06	₹139.06
10+	₹112.77	₹1,127.70
30+	₹99.52	₹2,985.60
95+	₹82.15	₹7,804.25
475+	₹74.31	₹35,297.25
950+	₹70.41	₹66,889.50

Quantity (min 1)

1 × ₹139.06

₹139.06

excl. GST

₹164.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 95 per tube

LF356M/NOPB

₹139.06 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Vos - Input Offset Voltage: 10mV
Slew Rate: 7.5V/us
Input Offset Current(Ios): 3pA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 5uV/℃
Gain Bandwidth Product: 2.5MHz
Quiescent Current: 7mA
Features: Built-in compensation;High capacitive load driving
Input Voltage Noise Density: 12nV/√Hz@1kHz
Dual Supply: -15V~15V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 95 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The LFx5x devices are the first monolithic JFET input operational amplifiers to incorporate well-matched, high-voltage JFETs on the same chip with standard bipolar transistors (BI-FET Technology). These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust, which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.
