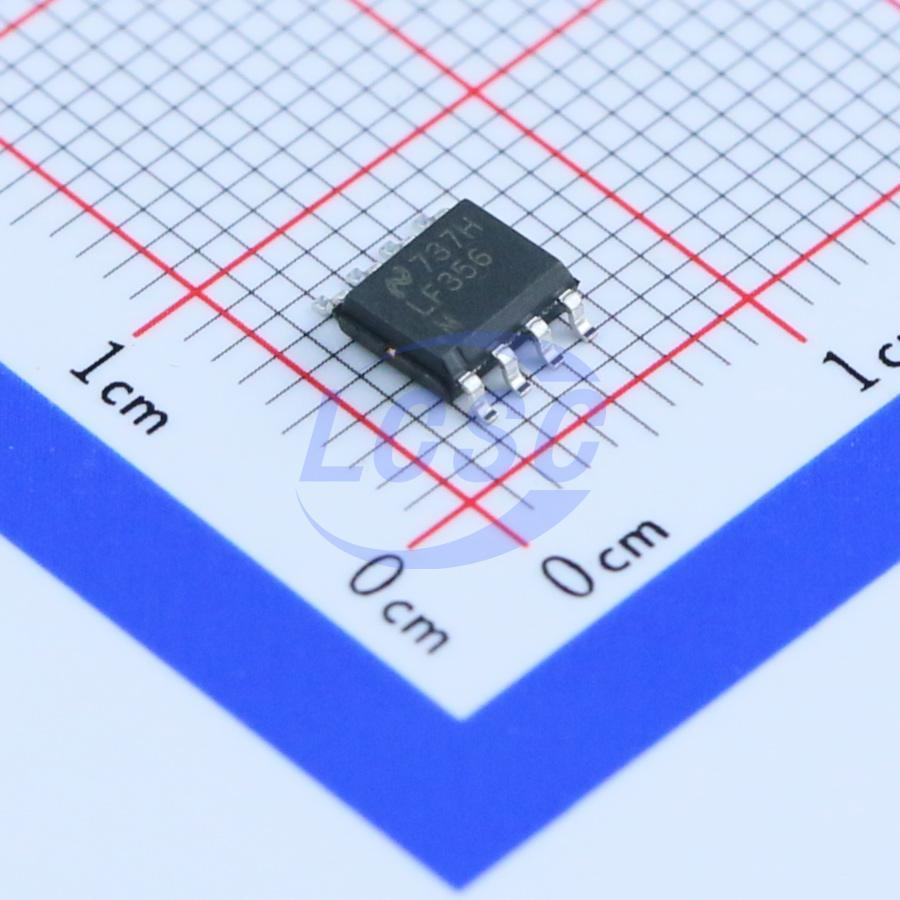

LF356MX/NOPB

1 3mV 12V/us 100dB 30pA 5mA 5MHz SOP-8-150mil Instrumentation, Op Amps, Buffer Amps RoHS

SOP-8-150milROHS3 CompliantActive

JFET Input Operational Amplifiers

Manufacturer: TI
Manufacturer part #: LF356MX/NOPB
Store part #: C26861
Package / case: SOP-8-150mil
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,961 in stock

#C26861

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹108.86	₹108.86
10+	₹91.26	₹912.60
30+	₹82.57	₹2,477.10
100+	₹73.88	₹7,388.00
500+	₹66.93	₹33,465.00
1,000+	₹64.32	₹64,320.00

Quantity (min 1)

1 × ₹108.86

₹108.86

excl. GST

₹128.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LF356MX/NOPB

₹108.86 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 3mV
Slew Rate: 12V/us
Input Offset Current(Ios): 3pA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 30pA
Input Offset Voltage Drift(Vos TC): 5uV/℃
Quiescent Current: 5mA
Gain Bandwidth Product: 5MHz
Features: Built-in compensation;High capacitive load driving
Input Voltage Noise Density: 12nV/√Hz@1000Hz
Dual Supply: -15V~15V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.26 g

Overview

These are the first monolithic JFET input operational amplifiers to incorporate well matched, high voltage JFETs on the same chip with standard bipolar transistors (BI-FET Technology). These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.

Applications

Precision High Speed Integrators
Fast D/A and A/D Converters
High Impedance Buffers
Wideband, Low Noise, Low Drift Amplifiers
Logarithmic Amplifiers
Photocell Amplifiers
Sample and Hold Circuits

Key features

Replace Expensive Hybrid and Module FET Op Amps
Rugged JFETs Allow Blow-Out Free Handling Compared with MOSFET Input Devices
Excellent for Low Noise Applications Using Either High or Low Source Impedance—Very Low 1/f Corner
Offset Adjust Does Not Degrade Drift or Common-Mode Rejection as in Most Monolithic Amplifiers
New Output Stage Allows Use of Large Capacitive Loads (5,000 pF) without Stability Problems
Internal Compensation and Large Differential Input Voltage Capability
Low Input Bias Current: 30pA
Low Input Offset Current: 3pA
High Input Impedance: 10^12 Ω
Low Input Noise Current: 0.01 pA/√Hz
High Common-Mode Rejection Ratio: 100 dB
Large DC Voltage Gain: 106 dB
