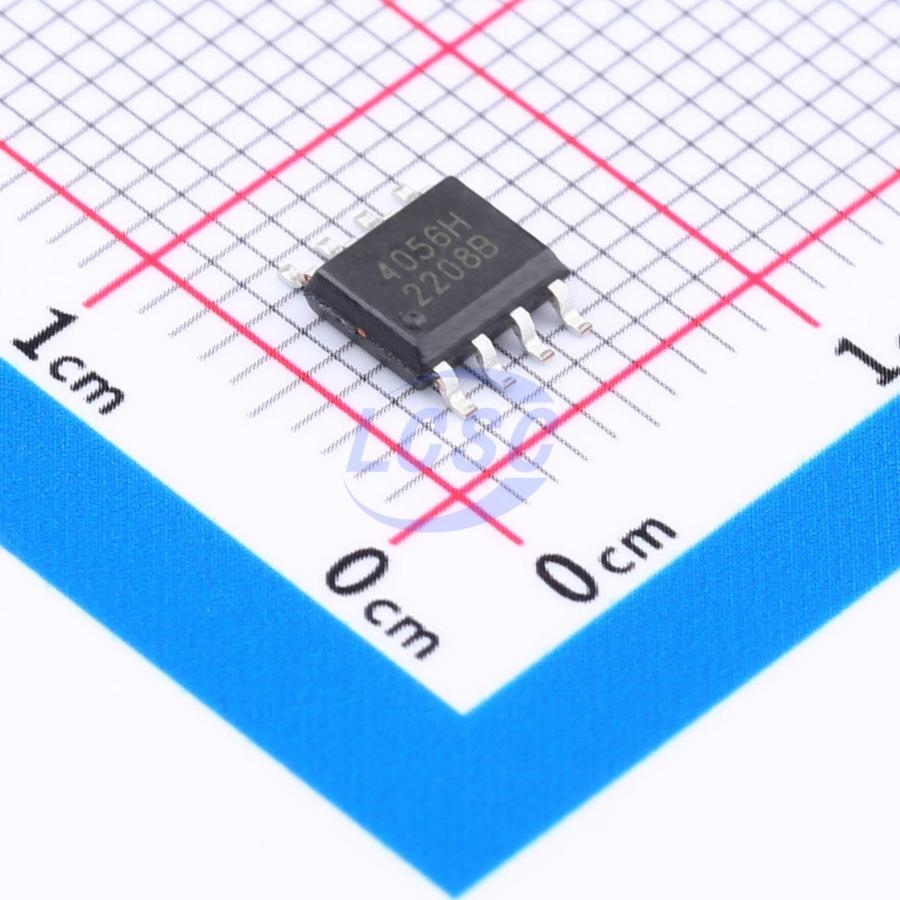

LGS4056HEP
Battery Charging IC Lithium-ion/Polymer ESOP-8
Input high-voltage 1A linear lithium battery charging management chip
- Manufacturer
- Legend-Si
- Manufacturer part #
- LGS4056HEP
- Store part #
- C5123970
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,480 in stock
#C5123970
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.09 | ₹90.45 |
| 50+ | ₹14.54 | ₹727.00 |
| 150+ | ₹12.77 | ₹1,915.50 |
| 500+ | ₹11.44 | ₹5,720.00 |
| 2,500+ | ₹10.07 | ₹25,175.00 |
| 4,000+ | ₹9.53 | ₹38,120.00 |
5 × ₹18.09
₹90.45
excl. GST
₹106.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LGS4056HEP
₹90.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 150uA
- 0V Battery Charge
- Support
- Operating Voltage
- 4V~6V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Under-voltage lockout;Reverse current blocking
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
LGS4056H is a linear lithium battery charge management IC integrating battery charging management and charge status indication functions, providing a complete power solution for single-cell lithium batteries. The IC features four charging stages: short-circuit current, trickle current, constant current, and constant voltage. Short-circuit charging enables charging of 0V batteries; trickle charging pre-charges fully discharged batteries; constant current charging rapidly charges the battery; and constant voltage charging ensures safe battery charging. The LGS4056H has a default charge termination voltage of 4.2V, with programmable charge current via an external resistor and a maximum charge current of 1A. When the charge current drops to one-tenth of the set termination voltage, the IC automatically terminates the charging process and continuously monitors the battery voltage, automatically restarting charging when the voltage drops below a defined threshold. When the input voltage is removed, the IC automatically enters low-power mode, with battery leakage current below 1μA.
Applications
- Mobile multimedia devices
- Portable lithium battery-powered devices with USB input
Key features
- Built-in high input voltage linear charger with adjustable charge current
- Input voltage range: 4V~24V (surge voltage up to 28V)
- Maximum charge current up to 1A in CC mode, supports real-time charge current configuration via external resistor
- Compatible with 5V USB power and AC adapters, with hot-plug protection
- Supports 4.2V/4.35V Li-ion battery types (default no-suffix version is 4.2V)
- Intelligent charge current adjustment based on battery temperature and input voltage
- Battery reverse-current blocking, battery leakage current less than 1μA
- Comprehensive charge status indication and fault indication (e.g., battery not connected)
- Protection features: UVLO, over-temperature protection, OVP, charge current thermal regulation, CC charge soft-start
- Junction temperature range: -40℃ to +85℃
- All pins feature ±2000V HBM ESD protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LGS4056HEP-4.35#C20618072Legend-Si · ESOP-8 | Legend-Si | ESOP-8 | 2,900 | ₹16.74 · 2,900 in stock | View |
 | LGS5500EP#C5280699Legend-Si · ESOP-8 | Legend-Si | ESOP-8 | 4,275 | ₹25.41 · 4,275 in stock | View |
 | LGS5504#C20618059Legend-Si · ESOP-8 | Legend-Si | ESOP-8 | 47 | ₹74.97 · 47 in stock | View |
