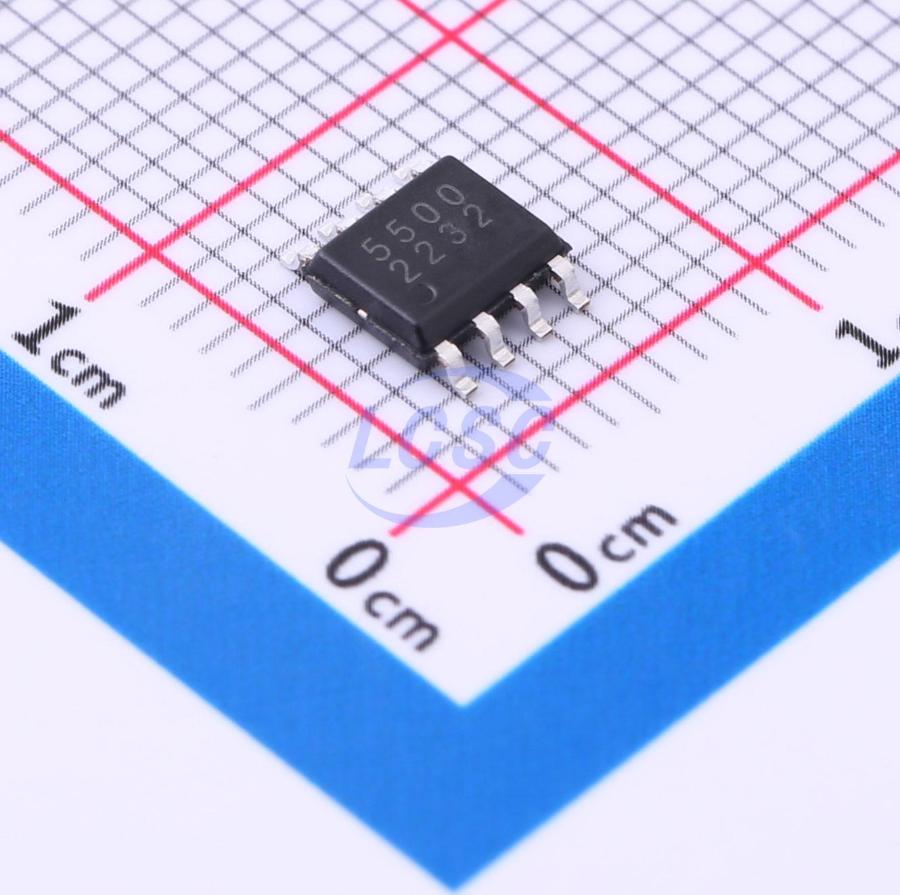

LGS5500EP

This device is a multifunctional power management SOC integrating a boost converter, lithium battery charge management, and battery charge status indication, providing a complete power solution for Bluetooth earphone charging cases and power banks. The charging current and charging voltage are adjustable, supporting various lithium battery specifications, with a maximum charging current of 1A. The charging current can be automatically adjusted based on lithium battery temperature, enhancing safety and reliability. The discharge output is a fixed 5V voltage with efficiency up to 95%. Standby current as low as 3μA supports long-term lithium battery standby. The device integrates charging and charge-complete indication functions, as well as a battery-not-connected indication function. The charging port and output port are allowed to be short-circuited, facilitating layout design for different applications.

Applications

• Bluetooth earphone charging case
• Portable device with lithium battery power supply and USB output

Key features

• Integrated switching charger with multi-level voltage and current adjustment
• 20V input voltage rating
• Charge current and charge voltage adjustable via external resistors
• Supports 4.2V, 4.3V, 4.35V, 4.4V lithium battery charging
• Configurable charge current: 400mA, 600mA, 800mA, 1000mA
• JEITA-compliant lithium battery charging with intelligent charge voltage and current adjustment based on battery temperature and input voltage
• Comprehensive charge status indication with external auto-detection support
• Integrated 5V/0.3A, 1MHz output synchronous boost converter
• Standby current as low as 3μA, supporting long-term lithium battery standby
• Supports 1A synchronous boost discharge
• Boost efficiency up to 95%
• Comprehensive protection features: undervoltage protection, overtemperature protection, short-circuit protection, overcurrent protection, overvoltage protection
