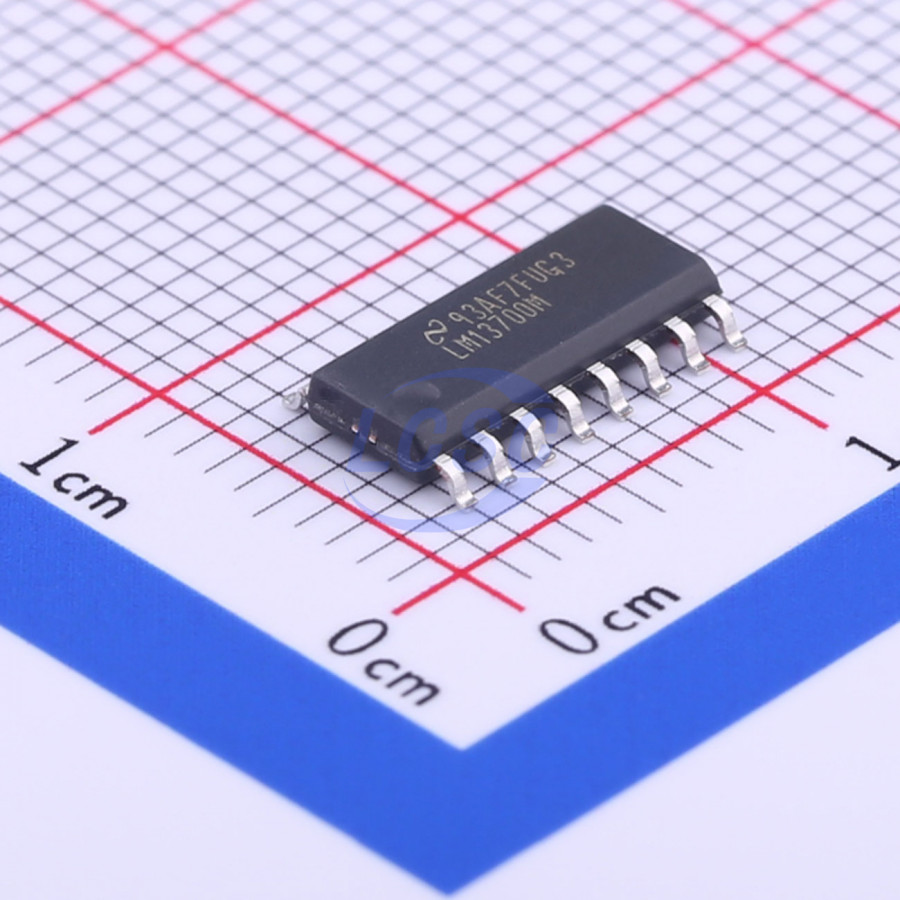

LM13700MX/NOPB
20mA 2 400uV 50V/us 110dB 400nA 300uA SOIC-16 Instrumentation, Op Amps, Buffer Amps RoHS
PopularSOIC-16ROHS3 CompliantActive
Dual Operational Transconductance Amplifiers With Linearizing Diodes and Buffers
- Manufacturer
- TI
- Manufacturer part #
- LM13700MX/NOPB
- Store part #
- C174050
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,496 in stock
#C174050
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.82 | ₹140.82 |
| 10+ | ₹114.52 | ₹1,145.20 |
| 30+ | ₹101.26 | ₹3,037.80 |
| 100+ | ₹88.23 | ₹8,823.00 |
| 500+ | ₹70.85 | ₹35,425.00 |
| 1,000+ | ₹66.72 | ₹66,720.00 |
1 × ₹140.82
₹140.82
excl. GST
₹166.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM13700MX/NOPB
₹140.82 for 1 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 400uV
- Slew Rate
- 50V/us
- Input Offset Current(Ios)
- 100nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 400nA
- Quiescent Current
- 300uA
- Dual Supply
- -16V~-4.75V;4.75V~16V
- Single Supply
- 9.5V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.351 g
Overview
The LM13700 series consists of two current - controlled transconductance amplifiers, each with differential inputs and a push - pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10 - dB signal - to - noise improvement referenced to 0.5 percent THD. High impedance buffers are provided which are especially designed to complement the dynamic range of the amplifiers. The output buffers of the LM13700 differ from those of the LM13600 in that their input bias currents (and thus their output DC levels) are independent of IABC. This may result in performance superior to that of the LM13600 in audio applications.
Applications
- Current - Controlled Amplifiers
- Stereo Audio Amplifiers
- Current - Controlled Impedances
- Current - Controlled Filters
- Current - Controlled Oscillators
- Multiplexers
- Timers
- Sample - and - Hold Circuits
Key features
- gm Adjustable Over 6 Decades
- Excellent gm Linearity
- Excellent Matching Between Amplifiers
- Linearizing Diodes for reduced output distortion
- High Impedance Buffers
- High Output Signal - to - Noise Ratio
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM13700M/TR#C5160094HGSEMI · SOP-16 | HGSEMI | SOP-16 | 2,303 | ₹87.91 · 2,303 in stock | View |
 | XL13700#C521166XINLUDA · SOP-16 | XINLUDA | SOP-16 | 1,575 | ₹40.96 · 1,575 in stock | View |
