TIDatasheet (PDF)

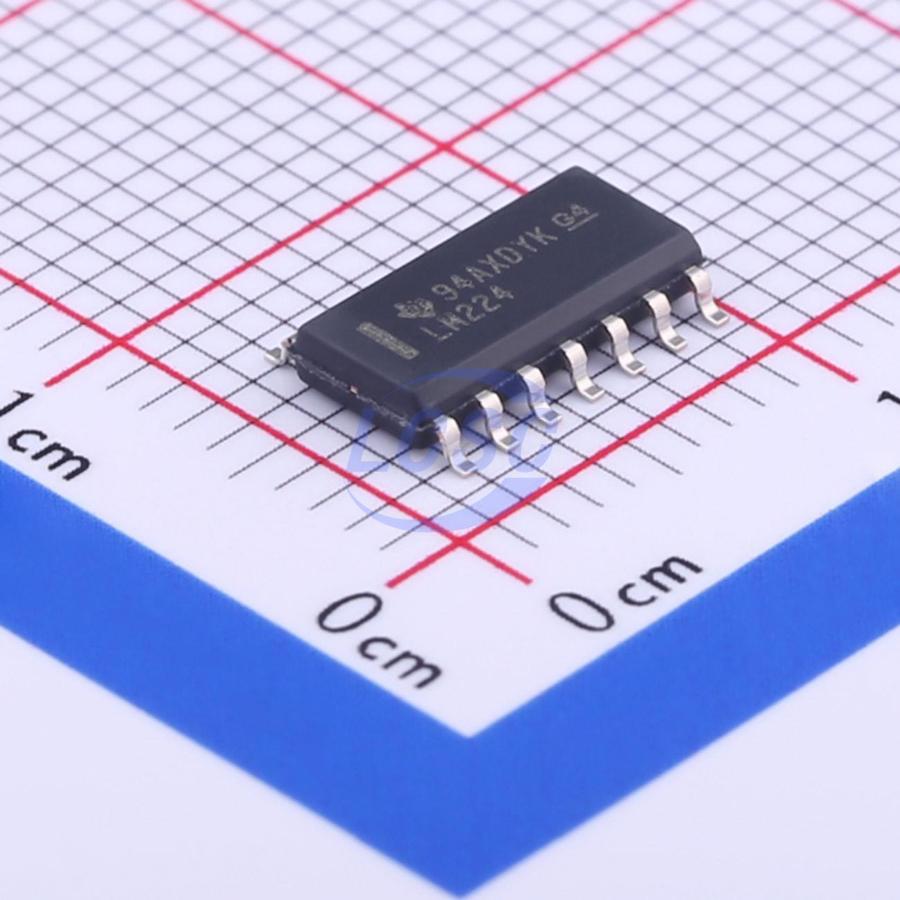

LM224DR
30mA 4 3mV 500V/ms 70dB 20nA 700uA 1.2MHz SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS3 CompliantActive
Quadruple Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- LM224DR
- Store part #
- C56984
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,680 in stock
#C56984
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.55 | ₹247.75 |
| 50+ | ₹38.59 | ₹1,929.50 |
| 150+ | ₹33.90 | ₹5,085.00 |
| 500+ | ₹28.03 | ₹14,015.00 |
| 2,500+ | ₹23.32 | ₹58,300.00 |
| 5,000+ | ₹21.76 | ₹1,08,800.00 |
5 × ₹49.55
₹247.75
excl. GST
₹292.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM224DR
₹247.75 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 100nA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 20nA
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 1.2MHz
- Features
- EMI filtering/RF suppression
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Dual Supply
- 1.5V~16V;-16V~-1.5V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.326 g
Overview
These devices consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply or split supply over a wide range of voltages.
Applications
- Blu-ray Players and Home Theaters
- Chemical and Gas Sensors
- DVD Recorders and Players
- Digital Multimeter: Bench and Systems
- Digital Multimeter: Handhelds
- Field Transmitter: Temperature Sensors
- Motor Control: AC Induction, Brushed DC, Brushless DC, High-Voltage, Low-Voltage, Permanent Magnet, and Stepper Motor
- Oscilloscopes
- TV: LCD and Digital
- Temperature Sensors or Controllers Using Modbus
- Weigh Scales
Key features
- 2-kV ESD Protection for:
- LM224K, LM224KA
- LM324K, LM324KA
- LM2902K, LM2902KV, LM2902KAV
- Wide Supply Ranges
- Single Supply: 3 V to 32 V
- (26 V for LM2902)
- Dual Supplies: ±1.5 V to ±16 V
- (±13 V for LM2902)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM224M/TR#C194285HGSEMI · SOIC-14 | HGSEMI | SOIC-14 | 3,975 | ₹14.58 · 3,975 in stock | View |
 | LM324SR#C22447444COSINE · SOP-14 | COSINE | SOP-14 | 3,115 | ₹15.61 · 3,115 in stock | View |
 | LM224AM/TR#C41399052HGSEMI · SOP-14 | HGSEMI | SOP-14 | 585 | ₹15.06 · 585 in stock | View |
 | XL224#C5125480XINLUDA · SOP-14 | XINLUDA | SOP-14 | 145 | ₹12.12 · 145 in stock | View |
 | LM224#C6851435HXY MOSFET · SOP-14 | HXY MOSFET | SOP-14 | 3,910 | ₹11.40 · 3,910 in stock | View |
